MULTI CONTROL
14

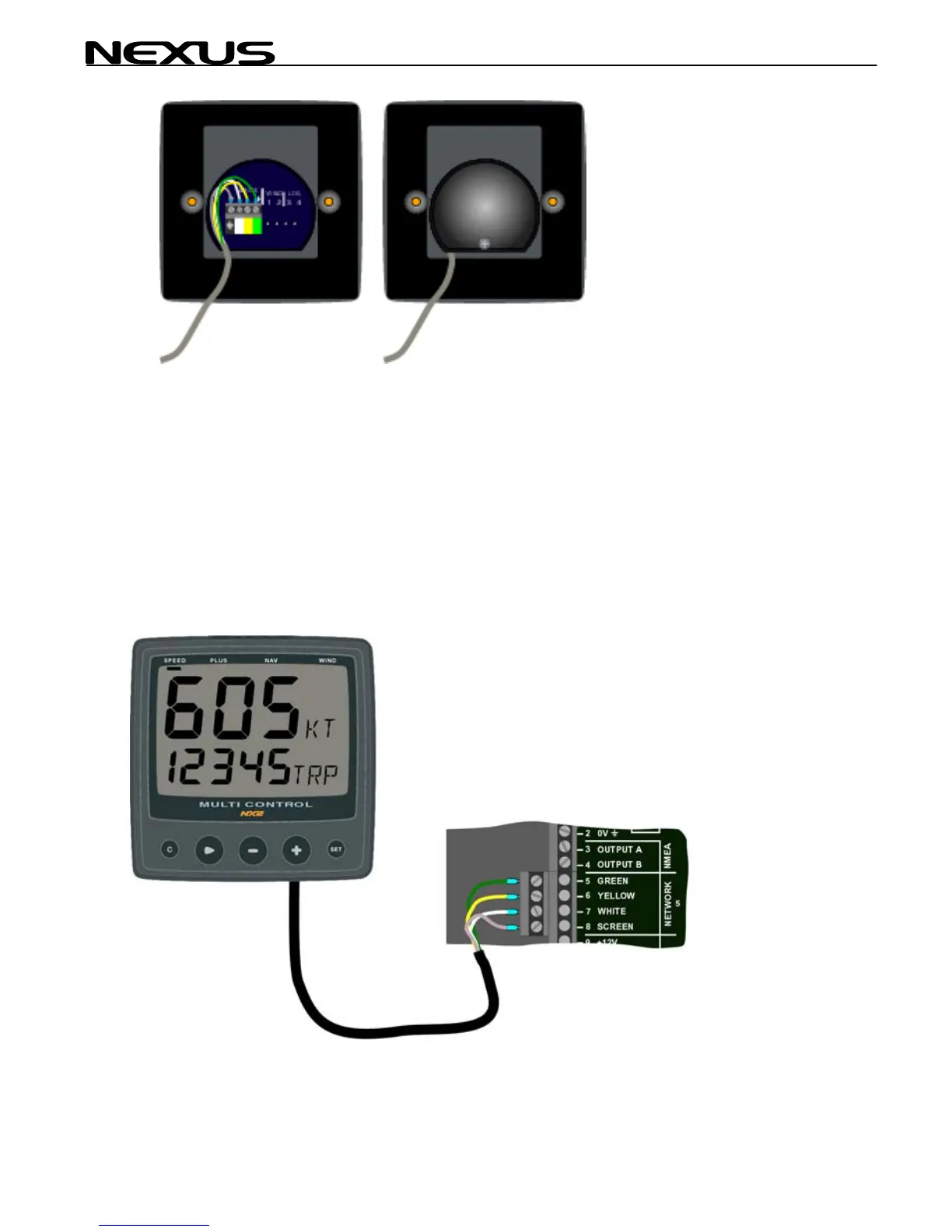

silicon paste to the instrument connection pins at the back of the instrument.
rument pins. Press the cable in to the cable leads.
ith the screw.
g instrument to the Server
directly to the Nexus Network
all use the same colour coded 4-pole jack
• Apply
Press the jack plug onto the inst
• Mount the connection back cover w
2.1.1 Installin
All NX2 instruments are connected
in a daisy chain. They
plugs.
