TOOLS for SMART MINDS
11
CHANNEL SETTINGS
To edit properties of myDAQ channels, click on Channel Settings button. The following
window will appear.

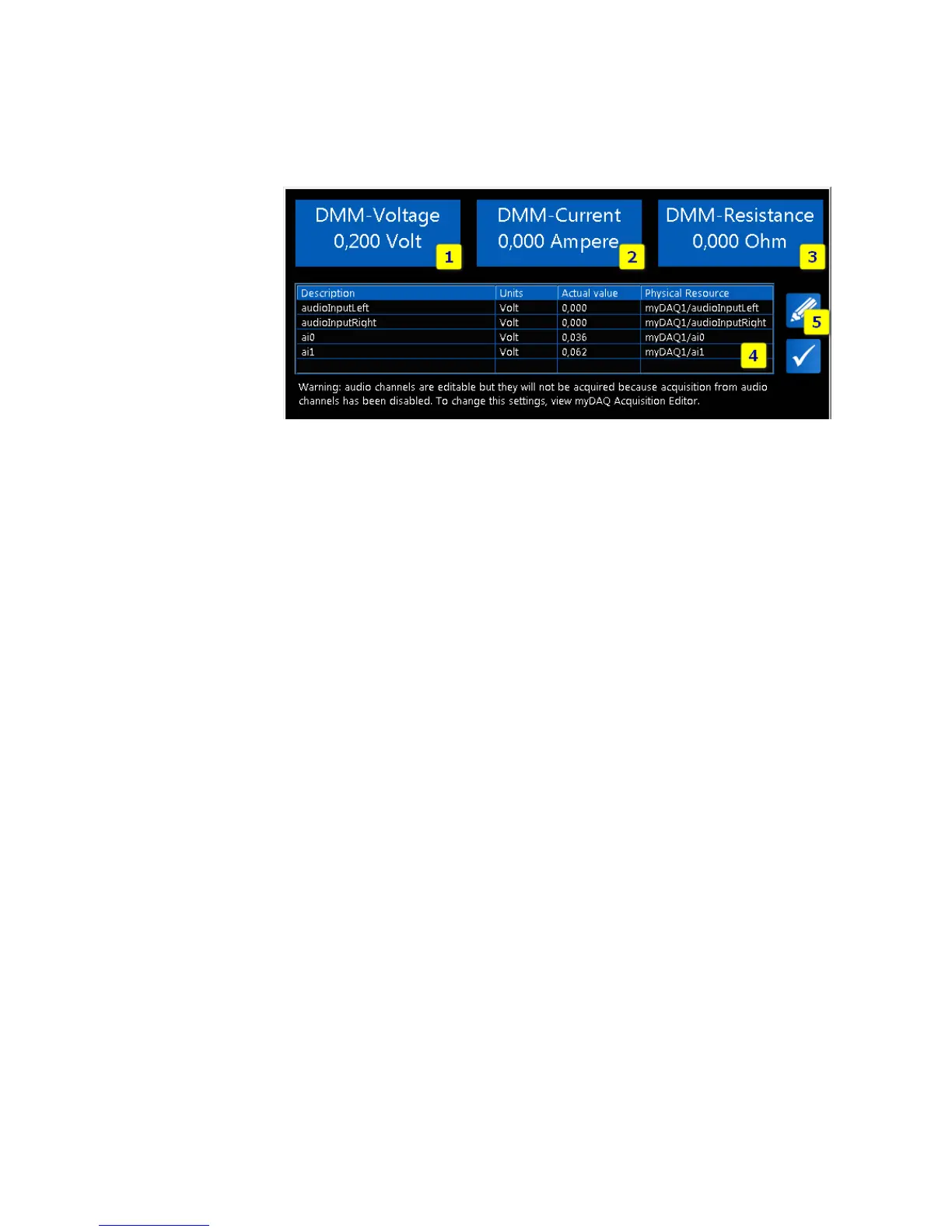

FIGURE 8 CHANNEL SETTINGS WINDOW
Channel Settings Window has the following elements:
1. Real-time value of DMM voltage. This indicator shows the real-time voltage value
of the digital multimeter. If the digital multimeter is not set to measure a voltage,
this value will be zero. For more details about the myDAQ DMM, view section
myDAQ Digital Multimeter (DMM).
2. Real-time value of DMM current. This indicator shows the real-time current value
of the digital multimeter. If the digital multimeter is not set to measure a current,
this value will be zero. For more details about the myDAQ DMM, view section
myDAQ Digital Multimeter (DMM).
3. Real-time value of DMM resistance. This indicator shows the real-time resistance
value of the digital multimeter. If the digital multimeter is not set to measure a
resistance, this value will be zero. For more details about the myDAQ DMM, view
section myDAQ Digital Multimeter (DMM).
4. List of analog input channels. It is the list of analog input channels supported by
myDAQ (excluded DMM channels).
5. Edit Channel Settings button. Use this button to edit selected channel properties.
Notice that, although myDAQ has 7 analog input channels (DMM Voltage, DMM
Current, DMM Resistance, Audio Left, Audio Right, Ai0, and Ai1), only 4 channels
are editable (audio channels and generic analog inputs ai0, ai1).
EDITING CHANNEL PROPERTIES
Channel properties window allows users to change channel properties.

Other manuals for NI myDAQ

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the NI myDAQ and is the answer not in the manual?

NI myDAQ Specifications

General IconGeneral
Analog Input Channels2
Analog Input Resolution16 bits
Analog Input Range±10 V
Analog Output Channels2
Analog Output Resolution16 bits
Analog Output Max Update Rate200 kS/s
Analog Output Range±10 V
Digital I/O Channels8
Digital I/O Sample Rate1 MS/s
Counter/Timers1
Power Supply Outputs+15 V, -15 V, +5 V
ConnectivityUSB
Power SupplyUSB powered
Operating System CompatibilityWindows
Analog Input Max Sample Rate200 kS/s
Digital I/O CompatibilityTTL
