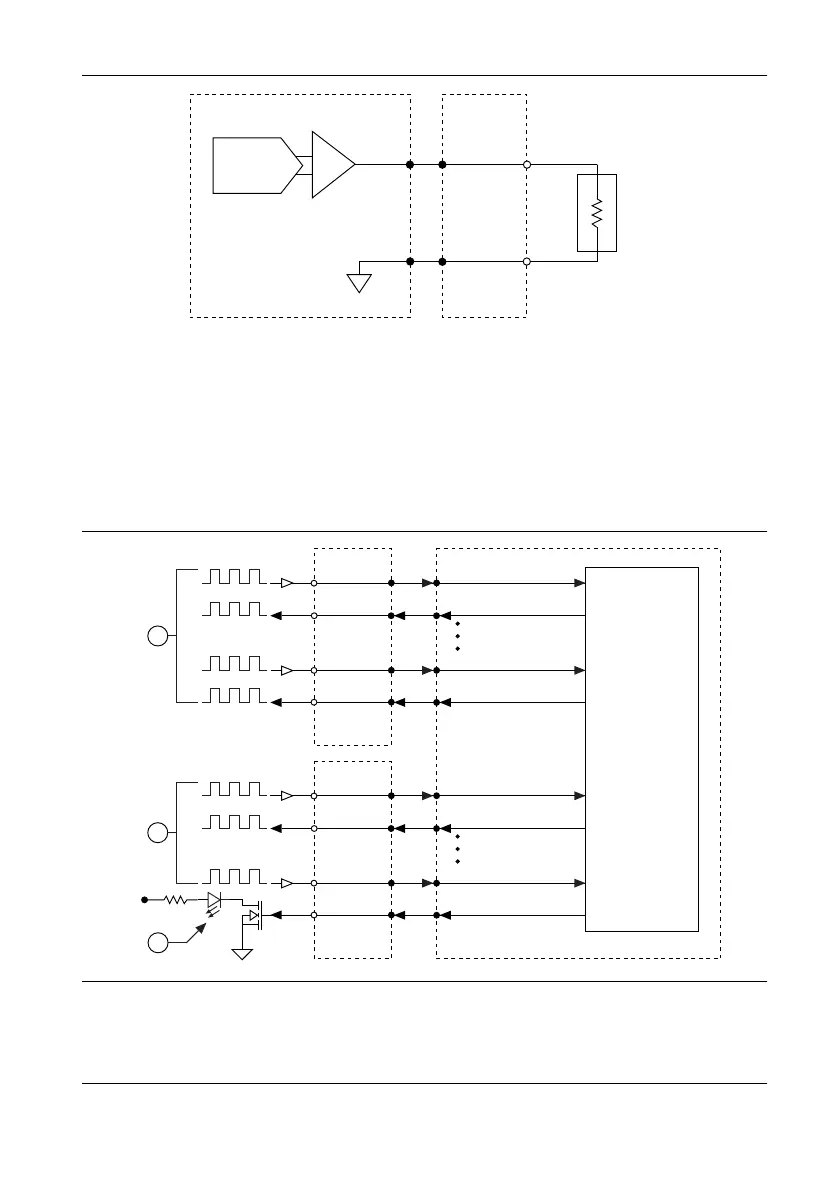

Figure 6. Connecting a Load
NI PXIe-7858R
Connection
Accessory
AOGND
LOAD
AO
DAC
Digital I/O
The NI PXIe-7858R provides connections for 48 digital input/output (DIO) channels.
Connector 0 contains 16 low-speed channels that can run up to 10 MHz signal frequencies and
Connector 1 contains 32 high-speed DIO channels that can run up to 80 MHz signal
frequencies. Each connector has selectable logic levels that you can configure as 1.2 V, 1.5 V,
1.8 V, 2.5 V, or 3.3 V. You can configure each channel as input or output.
Figure 7. Connecting to the DIO Channels
NI PXIe-7858R
Power
FPGA
Connection
Accessory
DIO0
DIO1
DIO30
DIO15
Connecter 0 (MIO)
1
Connection
Accessory
DIO0
DIO1
DIO14
DIO31
Connecter 1 (DIO)
2
3
1. Low-speed signal frequencies up to 10 MHz with logic levels configured as 1.2 V, 1.5 V, 1.8 V, 2.5 V, or
3.3 V.
2. High-speed signal frequencies up to 80 MHz with logic levels configured as 1.2 V, 1.5 V, 1.8 V, 2.5 V, or
3.3 V.
3. LED
6 | ni.com | NI PXIe-7858R User Manual
