RTI-12309 Pinout

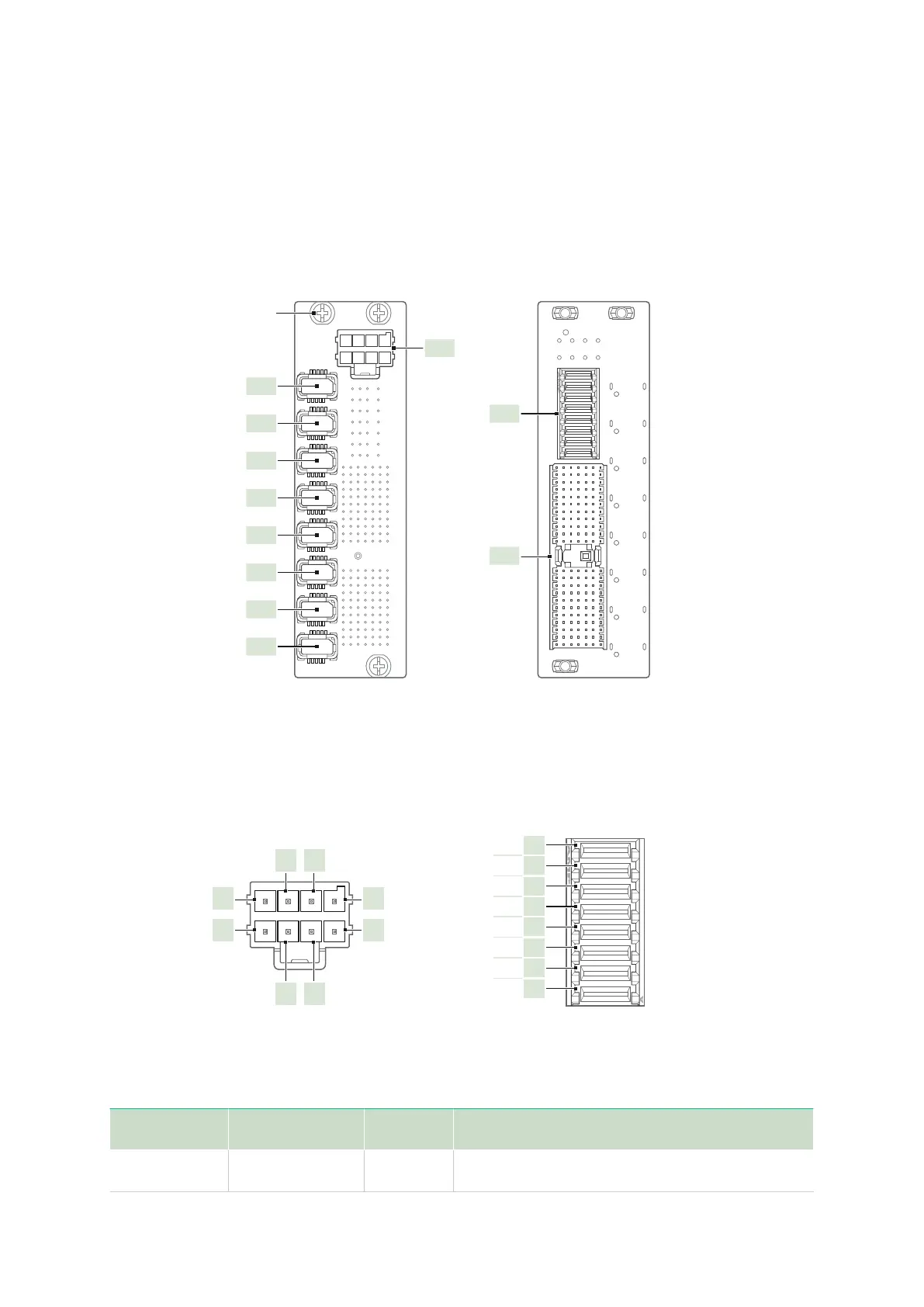

Figure 2 :
RTI-12309 Front and Rear Views
Bank 8
Bank 7
Bank 6
Bank 5
Bank 4
Bank 3
Bank 2
Bank 1
Captive Screws x3
JR2
JR1
XP3
XP2
JR3
JR4
JR5
JR9
JR8
JR7
JR6
Figure 3 : JR1 Pinout
JR1 XP3
A
B
C
D
E
F
G
H
8
4
V1+
V1+
V1-
V1-
5
1
V4+
V4+
V4-
V4-
3V2-
V2-
2 V3-
V3-
7 6V2+
V2+
V3+
V3+
Table 1 : JR1 Connect
or Descriptions
JR1 Signal XP3 Contact JR1 Pin Description
V1+ H 8 Positive voltage for signal 1
