Temperature sensor
႑
External flow temperature sensor (BT25, connected in
F1345) must be installed on the flow line to the radiat-
ors, after the shunt valve ((QN18)).

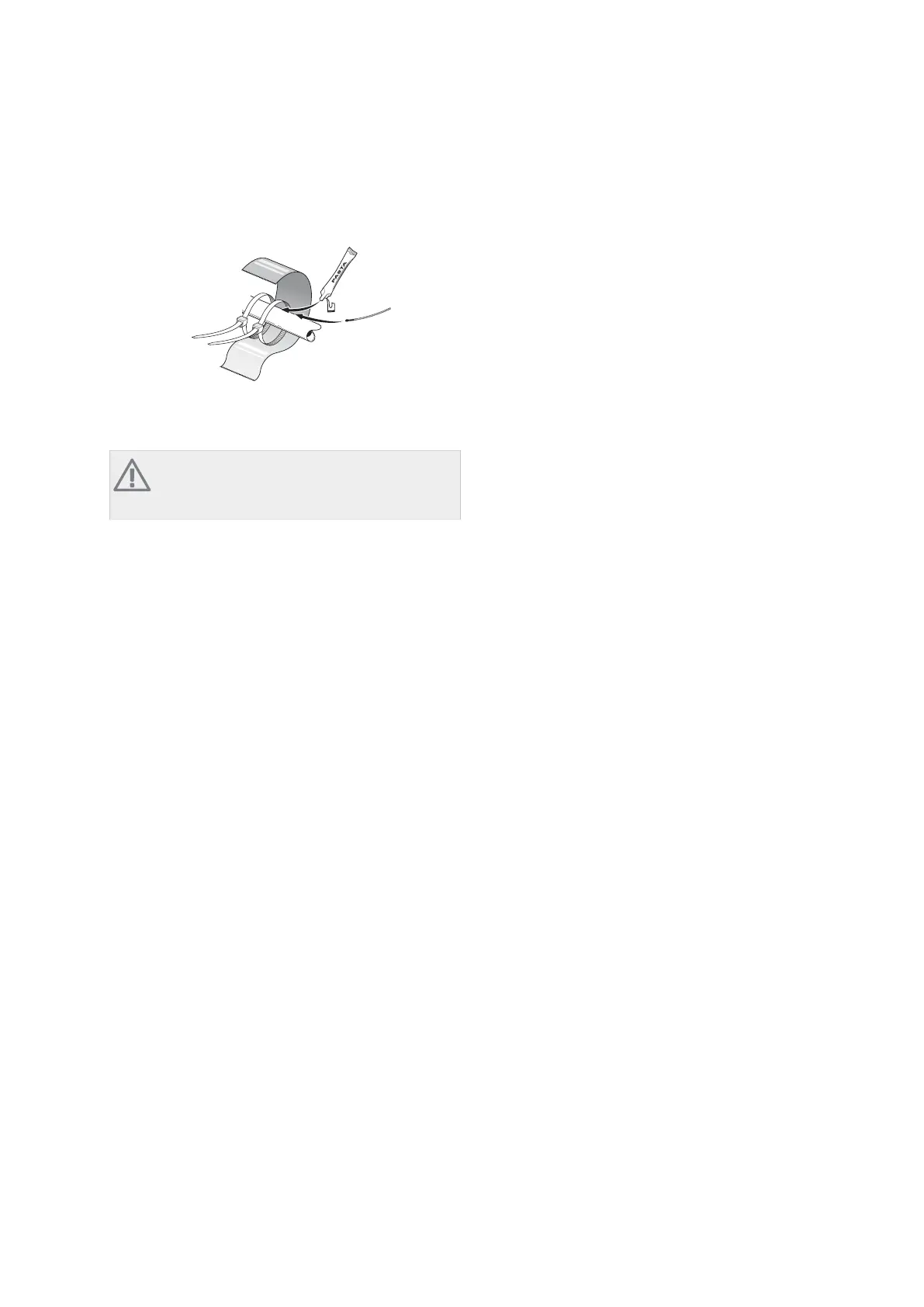

Install the temperature sensors with cable ties with the
heat conducting paste and aluminium tape. Then insulate
with supplied insulation tape.
NOTE
Sensor and communication cables must not be
placed near power cables.
