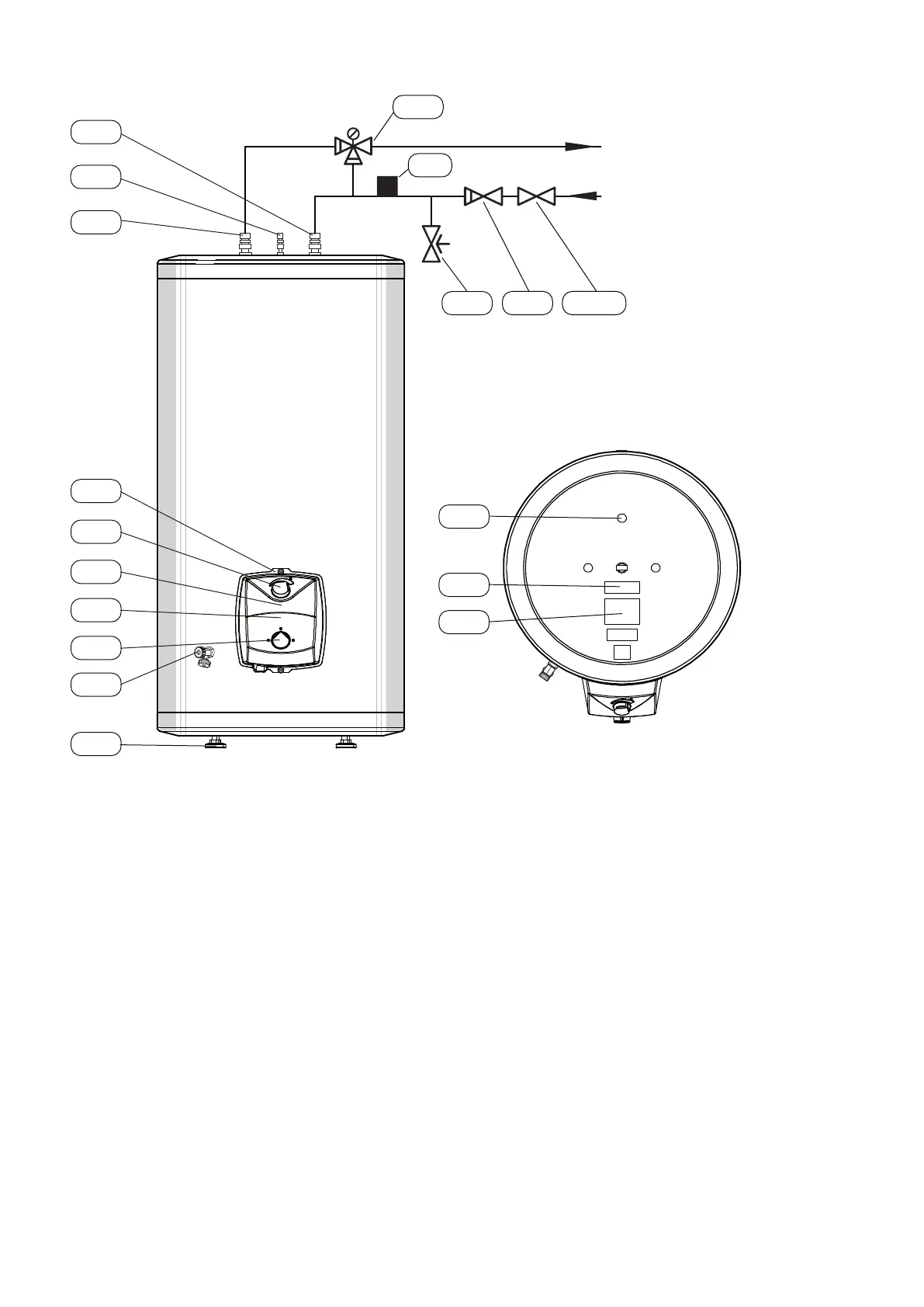

COMPONENT POSITIONS
QQ3
XL3
XL4
UL1
FL1
RM1
FL6
FQ1
QM35
PZ3
QM3
SF1
FQ10
XL5
X1
EB1
XL5
PZ1
LIST OF COMPONENTS
Pipe connections
XL3 Cold water connection, compression ring
XL4 Hot water connection, compression ring
XL5 Hot water circulation, compression ring coupling
(only applies to ES 300)
HVAC components
FL1 Safety valve
FL6 Vacuum valve**
FQ1 Mixer valve**
QM3 Draining valve
QM35 Shut-off valve**
RM1 Non-return valve**
Electrical components
EB1 Immersion heater*
FQ10 Thermostat/temperature limiter
SF1 Switch***
X1 Terminal block, incoming*
Miscellaneous
PZ1 Type plate
PZ3 Serial number plate
QQ3 Plastic cover, junction box
UL1 Adjustable feet
*Can be found under QQ3 Plastic cover, junction box
**Not enclosed
***Only applies to 6 kW.
