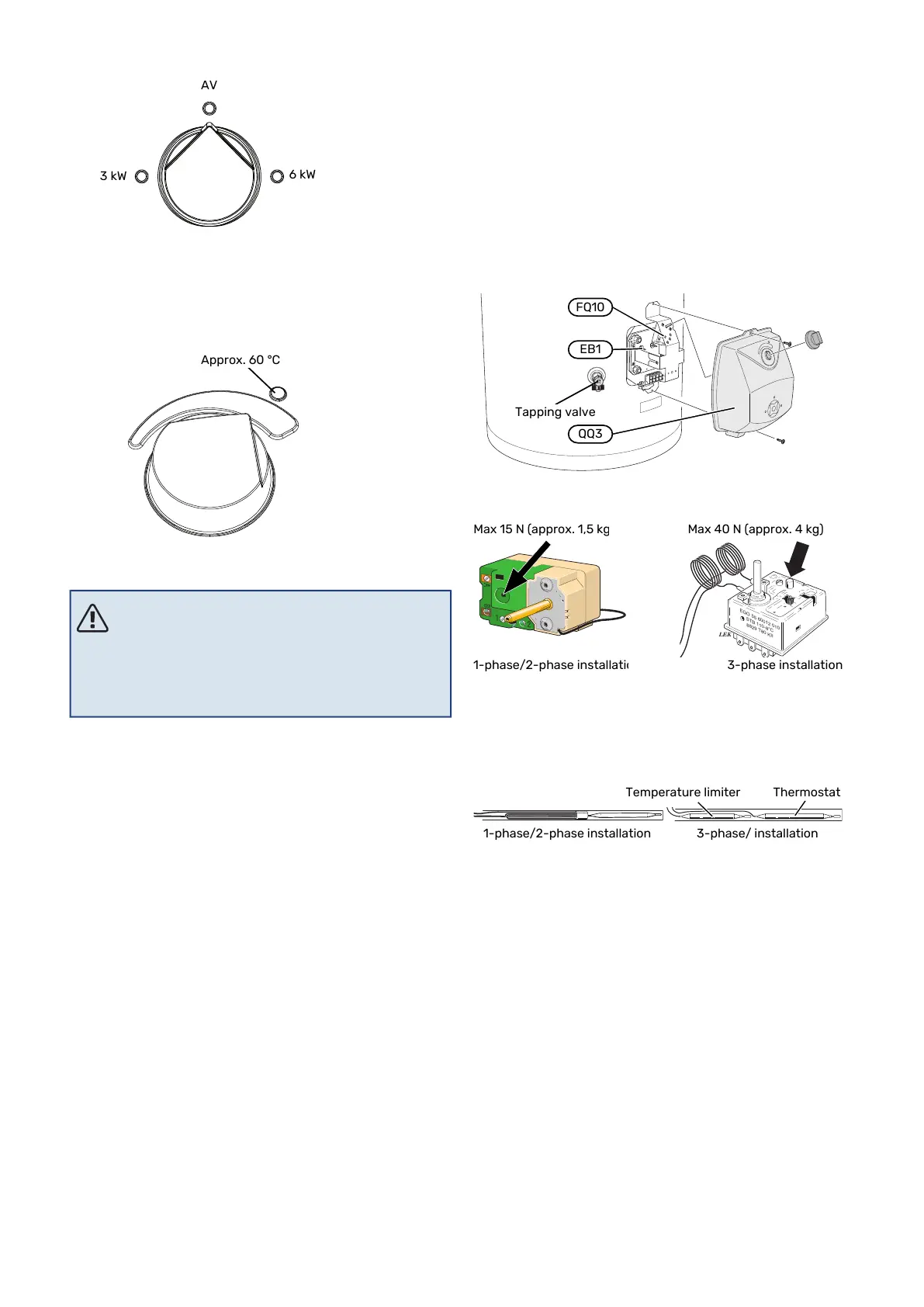

Nibe ES - Page 19

AV
3 kW
6 kW
Setting thermostat
For optimum operating conditions and to prevent bacterial
growth, we recommend a setting of 60 °C (max. approx.
80 °C).
Approx. 60 °C
DEALING WITH MALFUNCTIONS
NOTE
Electrical installation and service must be carried
out under the supervision of a qualified electrician,
and in accordance with applicable electrical safety
regulations.
Check the installation's fuses as well as the thermostat and
mixer valve settings.
RESETTING THE TEMPERATURE LIMITER
If the temperature limiter (FQ10) tripped, the water heater
must cool for at least one hour before it can be reset.
• Remove the plastic cover (QQ3).
• Give the button on the temperature limiter a light press,
max. 15 N (approx. 1.5 kg), applies in the event of 2-phase
installation, or max. 40 N (approx. 4 kg), applies in the
event of 3-phase installation.
FQ10
EB1
Tapping valve
QQ3
Max 15 N (approx. 1,5 kg)
EGO 55 60012 010
STB 110-8°C
8829 T80 KII
LEK
EGO 55 60012 010
STB 110-8°C
8829 T80 KII
LEK
STB TR
Max 40 N (approx. 4 kg)
1-phase/2-phase installation 3-phase installation
RECONNECTING SENSORS
If the immersion heater has been replaced, the sensors for
the thermostat and temperature limiter must be reinstalled
in the order shown in the image.
LEK
LEK
LEK
LEK
LEK
EGO 55 60012 010
STB 110-8°C
8829 T80 KII
LEK
EGO 55 60012 010
STB 110-8°C
8829 T80 KII
LEK
STB TR
1-phase/2-phase installation
3-phase/ installation
ThermostatTemperature limiter
19NIBE ES | EN
