Assembly
SAM S42 is mounted on the wall using the enclosed wall rail,
or on the lower cabinet CAB S12.
Noise from the fan can be transferred to the wall rail/lower
cabinet.
• Install SAM S42 against an outside wall, ideally in a room
where noise does not matter, in order to eliminate noise
problems. If this is not possible, avoid placing it against a
wall behind a bedroom or other room where noise may be
a problem.
• Wherever the unit is located, walls to sound sensitive
rooms should be fitted with sound insulation.
• Route pipes so they are not fixed to an internal wall that
backs on to a bedroom or living room.

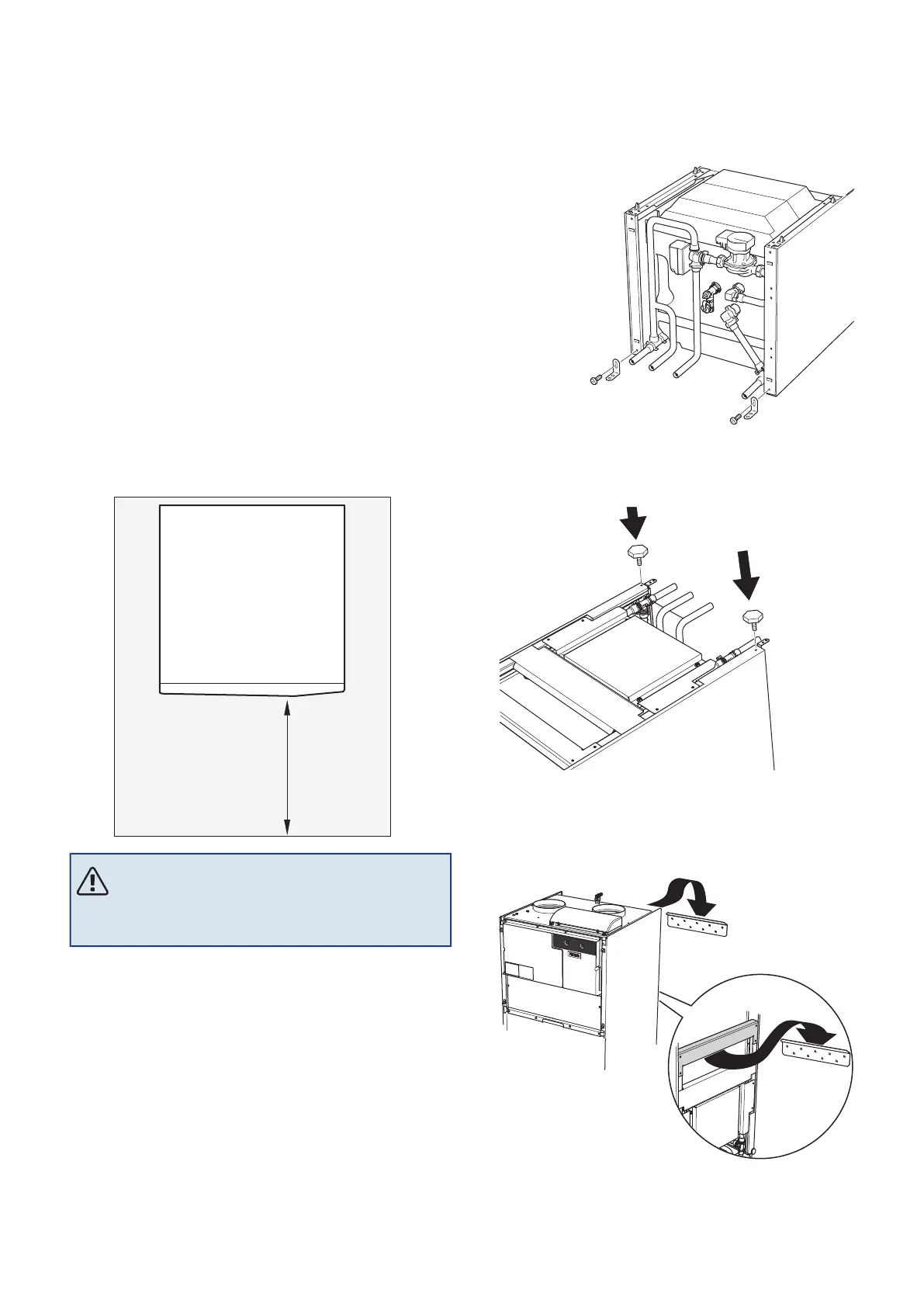

INSTALLATION AREA
Leave a free space of 800 mm in front of the product. All
service on SAM S42 can be carried out from the front.
NOTE
Ensure that there is sufficient space (300 mm)
above SAM S42 for connecting ventilation ducts.
WALL INSTALLATION
1. Fit the enclosed angle fittings at the rear edge of
SAM S42 and secure them in place using the enclosed
screws.
2. Install the enclosed wall spacers. The purpose of the
wall spacers is to ensure that SAM S42 hangs flat
against the wall.
3. Fit the enclosed rail on the wall. Ensure that the rail is
fitted in such a way that it can bear the weight of
SAM S42.
4. Fit SAM S42 on the rail as illustrated.
SAM S42Chapter 2 | Delivery and handling8
