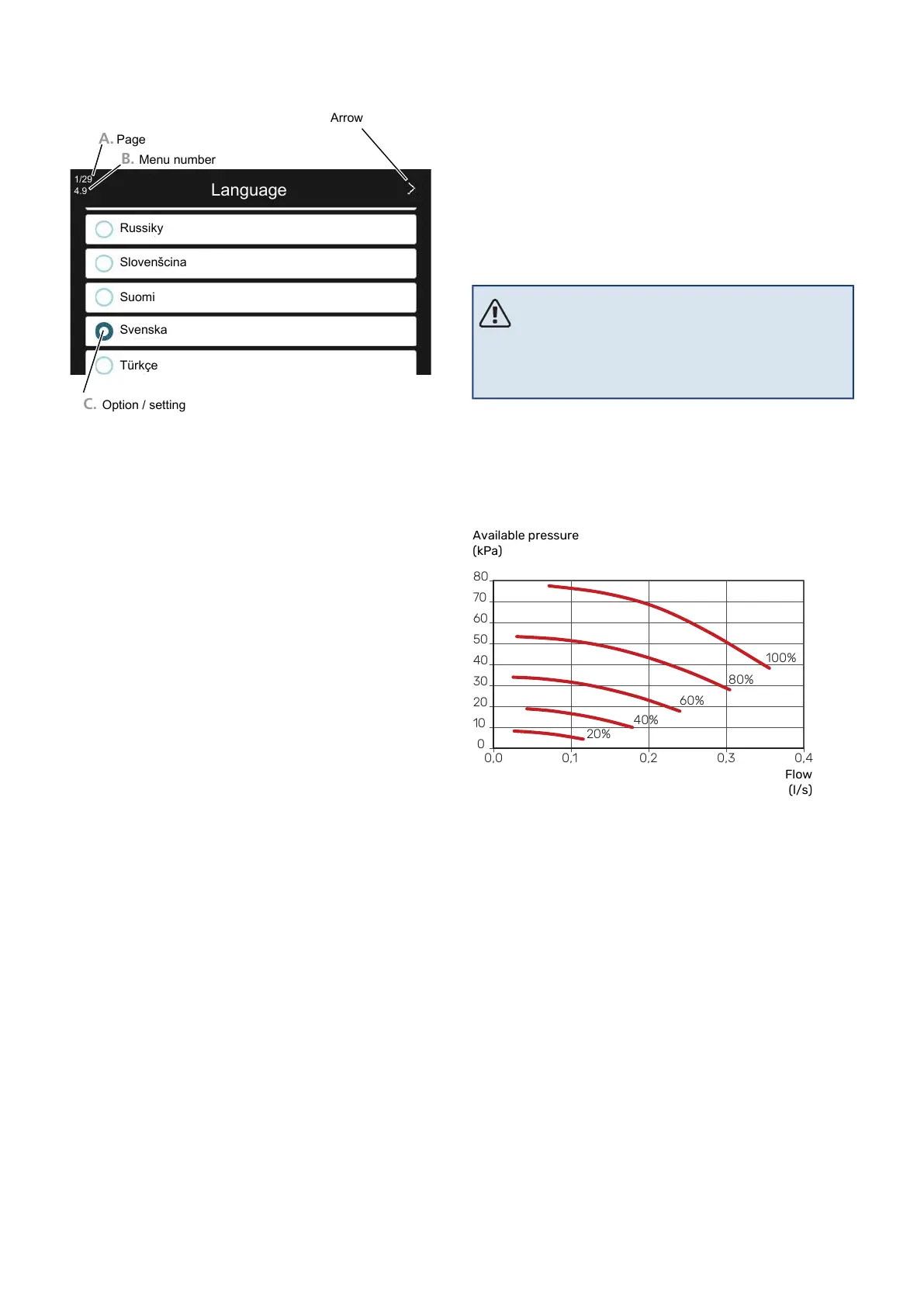

Operation in the start guide
A. Page
B. Menu number
C. Option / setting
Slovenšcina
Suomi
Svenska
Türkçe
1/29
4.9
Arrow
Language
Russiky
A. Page
Here you can see how far you have come in the start guide.
Drag to the right or left with your finger to browse between
the pages.
You can also press the arrows in the top corners to browse.
B. Menu number
Here, you can see which menu in the control system this
page of the start guide is based on.
If you want to read more about the affected menu, either
consult its help menu or read the Installer Manual.
C. Option / setting
Make settings for the system here.
COMMISSIONING WITHOUT HEAT PUMP
The indoor module can be used without a heat pump, i.e
only as an electric boiler, to produce heat and hot water
before the heat pump is installed, for example.
Connect the pipe for docking in from the heat pump (XL8)
with the pipe out to the heat pump (XL9).
Select "Add. heat only" in menu 4.1 - "Operating mode".
Enter menu 7.3.2 - "Installed heat pump" and deactivate the
heat pump.
NOTE
Select operating mode "auto" or "manual", when
the indoor module is to be used again with the
air/water heat pump.
PUMP SPEED
The circulation pump (GP1) in VVM S320 is frequency con-
trolled and sets itself using control and based on heating
demand.
Available pressure circulation pump, GP1
0
10
20
30
40
50
60
70
80
0,0 0,1 0,2 0,3 0,4
Tillgängligt tryck
(kPa)
Vattenflöde (l/s)
20%
100%
40%
60%
80%
Flow
(l/s)
Available pressure
(kPa)
POST-ADJUSTMENT, VENTING
Initially, air is released from the hot water and venting may
be necessary. If gurgling sounds can be heard from the cli-
mate system, the entire system will require additional
venting. The installation is vented via vent valves (QM20),
(QM22) and other climate systems through their relevant
vent valves. When venting, VVM S320 must be off.
