MENU TREE AND INFORMATION

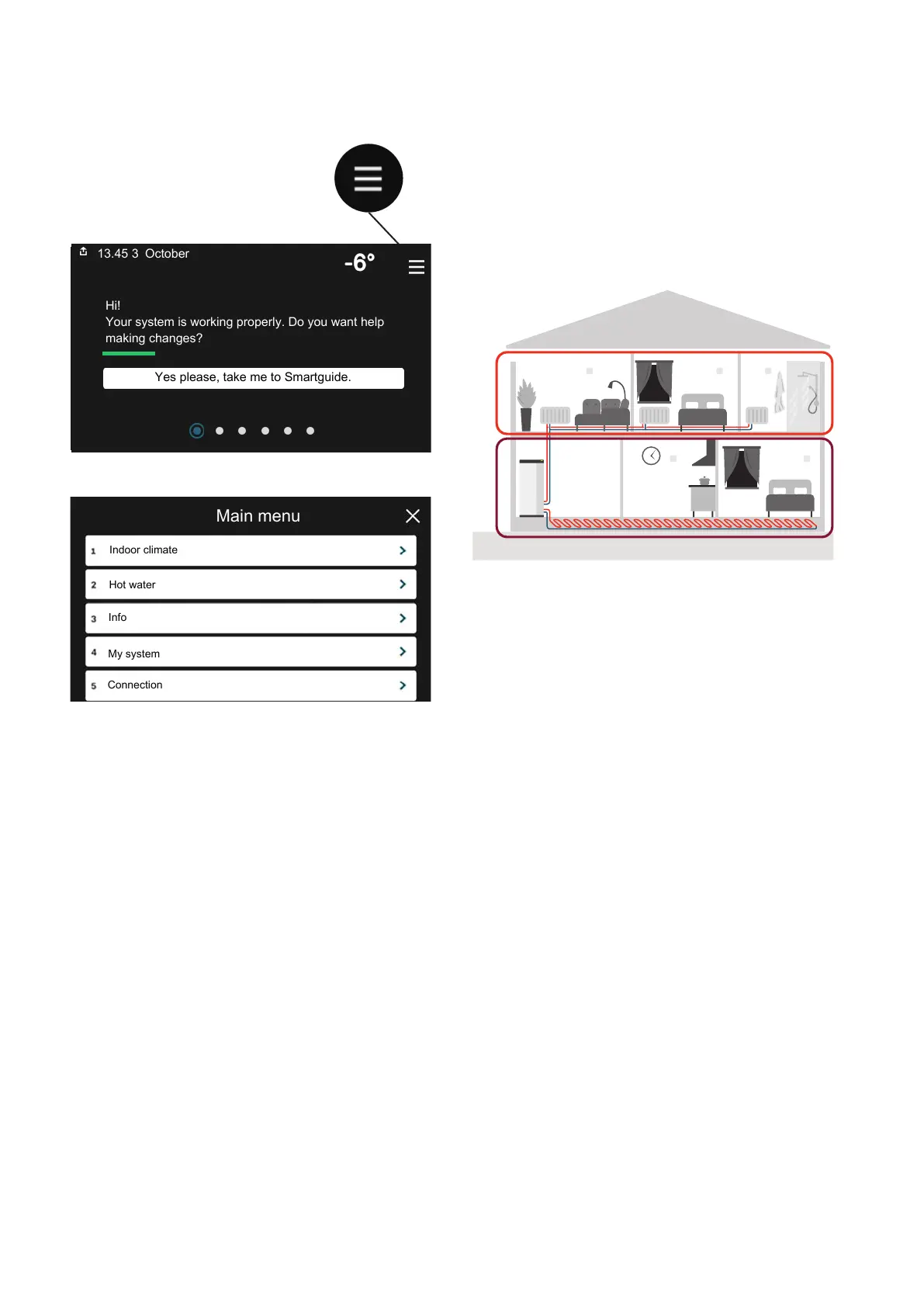

In the menu tree, you can find all menus and can make more
advanced settings.
13.45 3 October
Hi!
Your system is working properly. Do you want help
making changes?
Yes please, take me to Smartguide.
You can always press "X" to return to the home screens.
Main menu
Indoor climate
Hot water
Info
My system
Connection
Climate systems and zones
One climate system can contain one or more zones. One
zone can be a specific room. It is also possible to divide a
large room into several zones, with the help of radiator
thermostats.
Each zone can contain one or more accessories, e.g. room
sensors or thermostats, both wired and wireless.
OUTLINE DIAGRAM WITH TWO CLIMATE
SYSTEMS AND FOUR ZONES
12
6
39
4
1 2 3
A
B
This example shows a property with two climate systems
(A and B) divided into four zones (1-4). Temperature and
demand-controlled ventilation can be controlled individually
for each zone (accessory required).
37Chapter 8 | Control - IntroductionNIBE VVM S320
