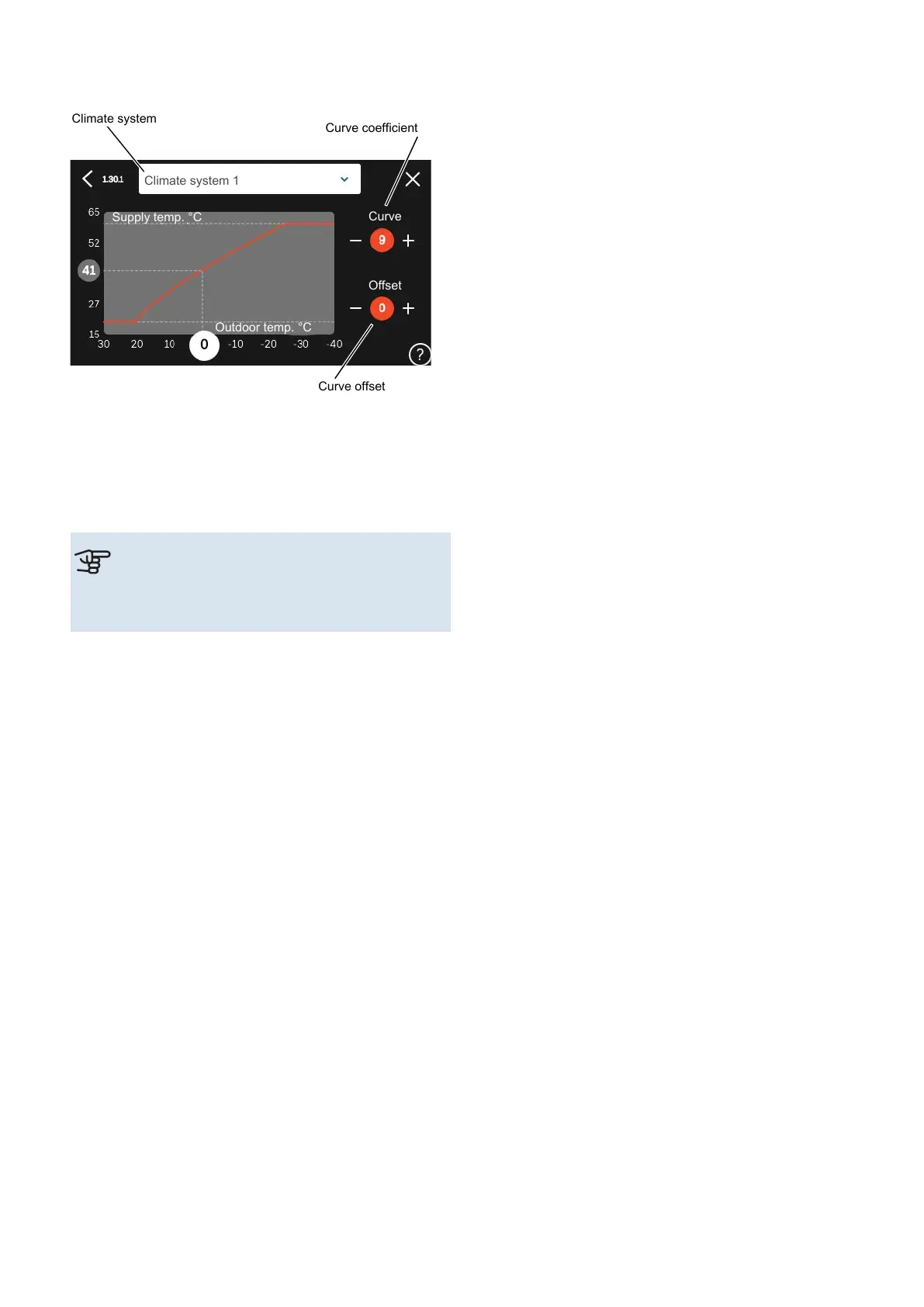

ADJUSTMENT OF CURVE
Curve offset
Curve coefficient
Climate system
Supply temp. °C
Outdoor temp. °C
Curve
Offset
Climate system 1
1. Select the climate system (if more than one) for which
the curve is to be changed.
2. Select curve and offset.
3. Select max and min supply temperature.
Caution
Curve 0 means that "Own curve" is used.
Settings for "Own curve" are made in menu 1.30.7.
TO READ OFF A HEATING CURVE
1. Drag in the circle on the axis with outdoor temperature.
2. Read off the value for supply temperature in the circle
on the other axis.
NIBE VVM S320Chapter 6 | Commissioning and adjusting32
