CBOX1050
Installation and Programming Manual
2222
support.hysecurity.com
1. To wire Main DC Power panel connector, remove it from board for
wiring (IMAGE 9-1).
2. Strip wires from power supply back 3/8”-7/16” (10-11mm), twist, and
install into the connector screw terminals (positive to +, negative to
-), then plug back into board. (IMAGE 9-1).
9

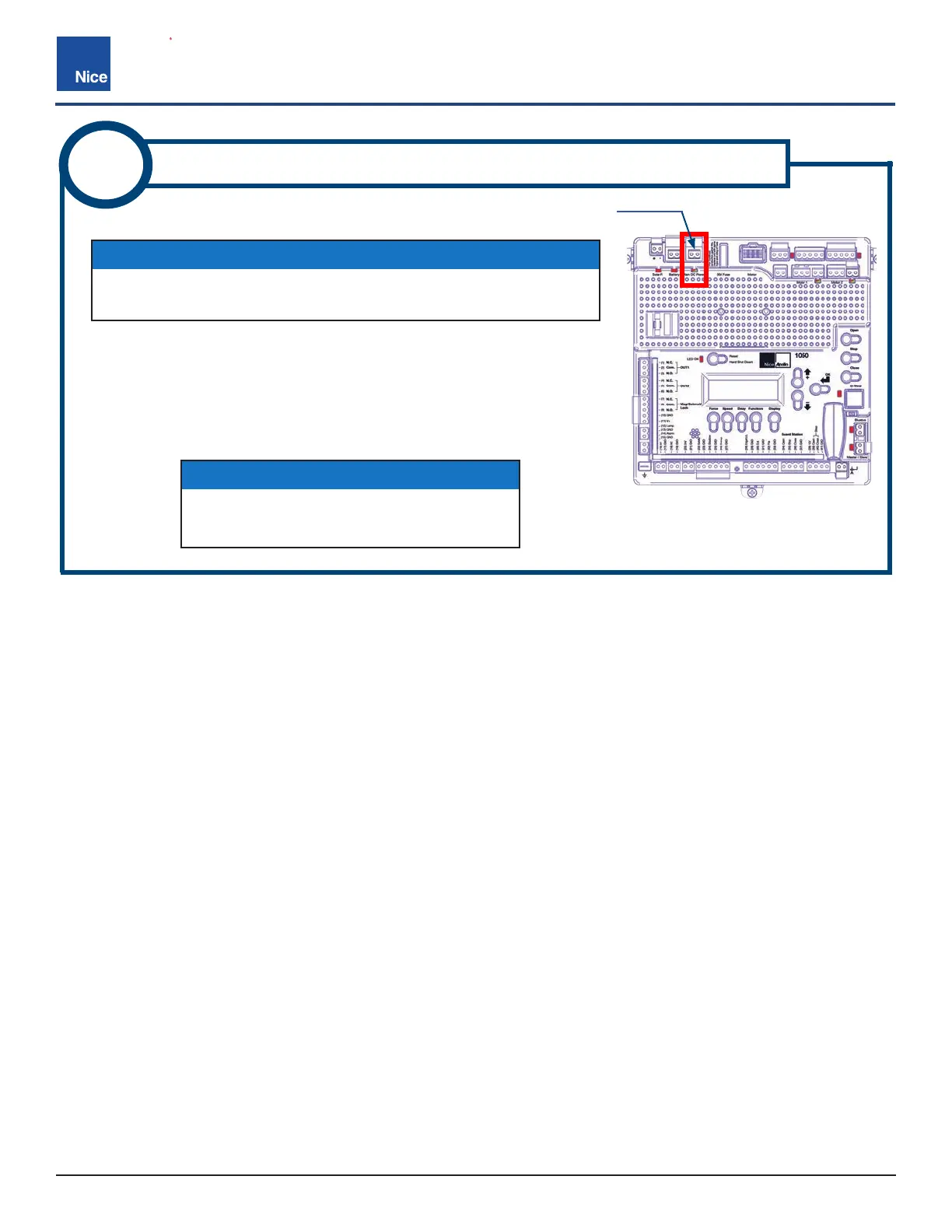

MAIN DC POWER - INPUT CONNECTIONS
MAIN DC POWER INPUT CONNECTOR
IMAGE 9-1: MAIN DC POWER
INPUT CONNECTOR
IMPORTANT!
LED below the terminal will glow red if mis-
wired, and glow green if wired correctly.
NOTICE
This input should only used with a 10-35 VDC, (20A or larger)
power supply. However, a battery is recommended as a backup.
