CBOX1050
Installation and Programming Manual
5353
MX4682 Rev. D ©2021

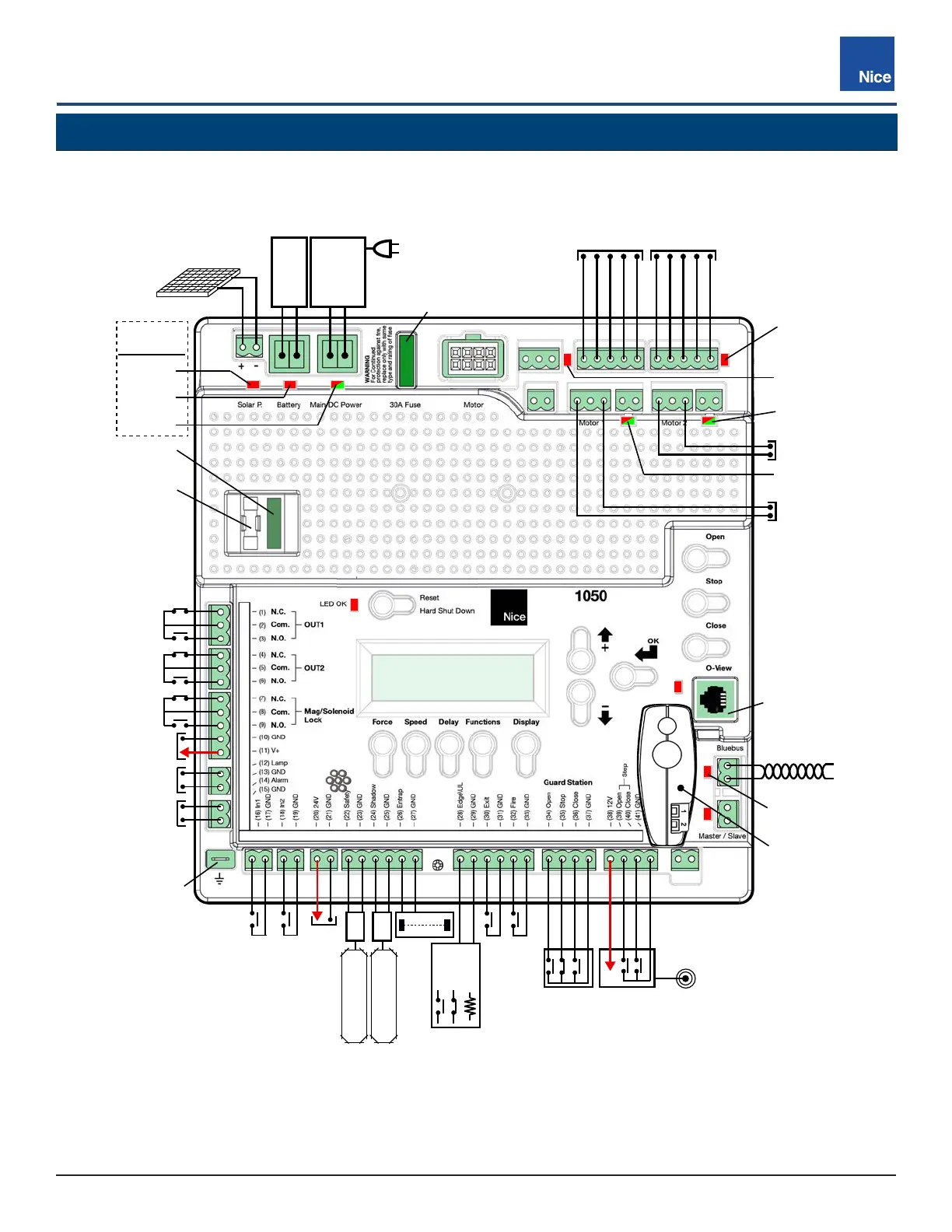

This section describes the accessory functions, connections, and wiring for the 1050 control board. See IMAGE
9-1(below) for a visual representation of all the accessory inputs and outputs, and the following pages for a
description of I/O functions and pin designations.
SECTION 9: 1050 ACCESSORY CONNECTIONS
Encoder
Power -
MOTOR
2
Power -
MOTOR
1
BlueBus
Oview Conn.
(4 Pin, RJ11)
External
Receiver
Signal
LED, Encoder
Activity, MOTOR 2
LED, Encoder
Activity, MOTOR 1
Motor 1 IN Motor 2 IN
30
30
Fuse 5A
(Spare)
Fuse 30A
(Spare)
Solar
Polarity
LEDs
Battery
FUSE 30A
LED, Open/Close
Limit, MOTOR 2
LED, Open/Close
Limit, MOTOR 1
LED, BlueBus
Voltage Activity
OPEN
CLOSE
GND (-)
Encoder
+12V
+12V
Encoder
Encoder
Common
Common
Open Limit
Open Limit
Close Limit
Close Limit
12-32
POWER
SUPPLY
VDC
12/24 VDC
BATTERY
SOLAR
PANEL
+12VDC
100 ma
Guard
Station
STOP
CLOSE
OPEN
UL/Edge
Input
Fire Dept.
Exit Probe/Loop
Loop 2
Control
Control
(Entrap)
Aux. Input #1
Aux. Input #2
Supply 300mA
+24 VDC Acces.
Alarm Control
(12 VDC, 0.5A)
Lamp Control
(~30 VDC, 1.8A)
(Entrapment
Protection)
Magnetic Lock
(~30 VDC, 1.8A)
Aux. Output 2
(Max. 5A, 35V)
Aux. Output 1
(Max. 5A, 35V)
N.C.
ANALOG
N.O.
Loop 1 (Shadow)
Loop (Safety)
Main DC
GROUND LUG
OXIBD/A
Radio Receiver
Same V+ output as
highest V+ input
FIGURE 9-1: 1050 CONTROL BOARD ACCESSORY CONNECTIONS
