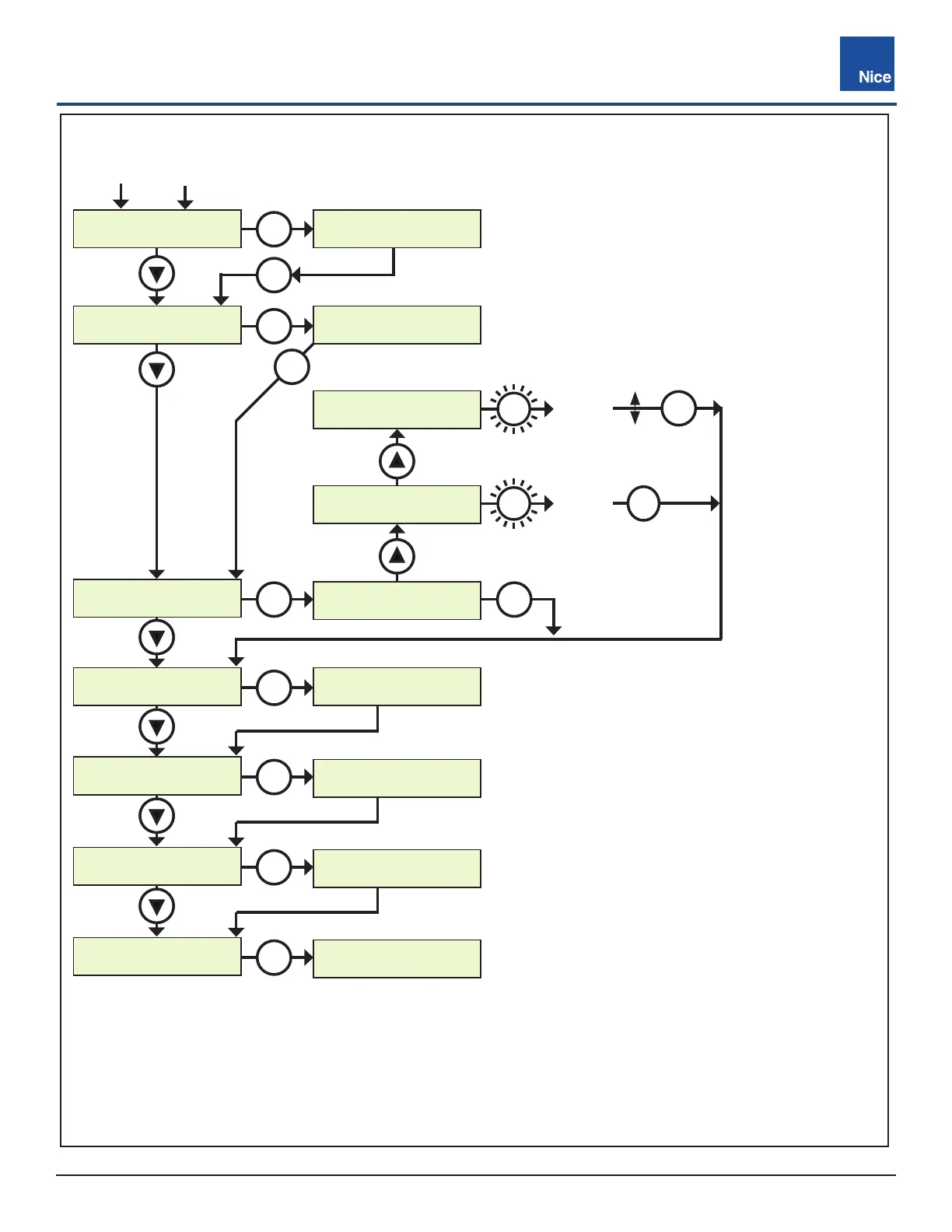

DISPLAY BUTTON MENU (CONT.):
Sun Volt: Displays the solar panel input voltage
in volts DC.
Motor Volt: Displays the voltage at the motor in
volts DC.
Service: The following information is recorded
and viewable about the operating history of the
gate:
’ Total: Displays the total number of open-close
cycles (non- Settings ).
’ Partial: Display the total number of partial cycles.
Reset by pressing the “OK” button for several
seconds.
’ Maint: Display the number of cycles before ser-
vice is required. Settings from 1000 to 50000 cy-
cles in increments of 1000 cycles.
Motor: Used only for commercial operators.
Displays the Motor position, voltage, and current
for the MOTOR output.
Motor 1: Used to view position, voltage, and
current for Motor1 (primary actuator).
Motor 2: Used to view position, voltage, and
current for Motor2 (secondary actuator).
Charger: Displays the battery charger voltage
and current.
DISPLAY Button (Cont.):
