Notes:
– When performing the procedure, at any time you can cancel it by keeping the n and t keys pressed simultaneously for 4 seconds. Otherwise, do not press any
key and wait 60 seconds for the motor to perform 6 movements.
– After this programming, the s key will command the Raise manoeuvre and the t key will command the Lower manoeuvre. During the Raising manoeuvre, the
rolling shutter will be stopped by the impact of the mechanical blocks against the structure (= upper limit switch “0”), while during the Lowering manoeuvre the
rolling shutter will stop at the lower limit switch (“1”) established by the installer.
sec.
sec.
sec.
sec.

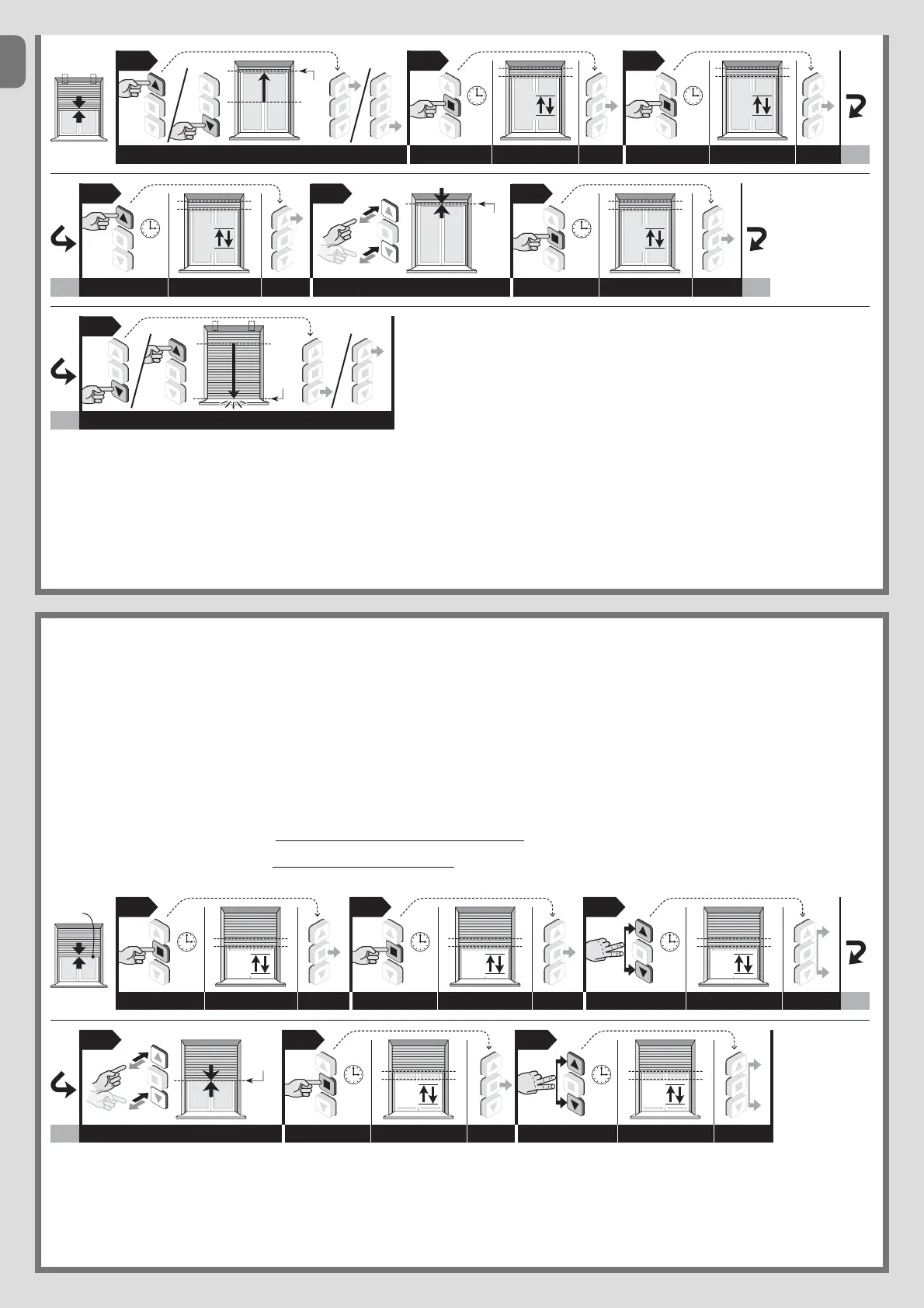

5.9 - Adjustment of height (“H”) for partial opening/closing
The motor can manage up to 30 partial openings/closings, each called “H height”. These heights can be adjusted only after regulating limit switches “0” and “1”. The
following procedure makes it possible to adjust one “H” height at a time.
Warning – If you want to change the position a given “H” height that is already memorized, repeat the present procedure by pressing at point 06 the key associated
with that height.
Before beginning the procedure, bring the rolling shutter to the “H” height you want to memorize.
01. Keep the n key pressed and wait for the motor to perform 2 movements. Upon completion, release the key
02. Keep the n key pressed again and wait for the motor to perform 4 movements. Upon conclusion, release the key.
03. Keep the s and t keys pressed simultaneously and wait for the motor to perform two movements. Upon completion, release the keys.
04. Fine adjustment of the position: perform key pulsing on the s and t keys until the rolling shutter is brought to the partial height you want (at each pulse the
rolling shutter moves a few millimetres).
05. Keep the n key pressed and wait for the motor to perform 3 movements. Upon completion, release the key.
06. • To memorize the FIRST height “H”: on the transmitter you are using for this procedure
keep thes and t keys pressed simultansously and wait for the motor
to perform 4 movements. Upon completion, release the keys.
• To memorise the NEXT height “H”: on the new unmemorized transmitter
keep the desired key pressed and wait for the motor to perform 4 movements. Upon
completion, release the key.
Note – When performing the procedure, at any time you can cancel it by keeping the n and t keys pressed simultaneously for 4 seconds. Otherwise, do not press
any key and wait 60 seconds for the motor to perform 6 movements.
sec.
sec.
sec.
sec.
sec.
