Nice FLOR Series - Output Contact Types

Contact in output
The outputs in relay modules are controlled by a free, normally open contact (a contact free from
other connections). If a normally closed type of contact is required:

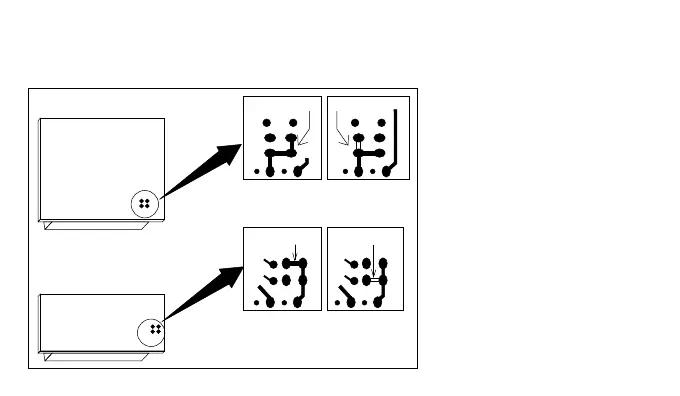

• Cut the “NO” part of the track (Fig. 6).
• Join the “NC” pads with a spot of solder
(Fig. 6)
Available relay versions:
MXD = The module has a standard
relay that remains active all the
while the command signal persists
MXT = The module has a relay with
a Timer function. Once activated it
will remain active for a time that can
be regulated from between 3 to
about 300 seconds.
MXP = This module has a Step-by-
step type relay. Each command
signal changes relay state, from not
active to active and vice versa.
- 38 -
TIMER RELAY MODULE
MXT
STANDARD RELAY
MODULE
MXD
CUT JOIN
CUT JOIN
Fig. 6
