Modular receivers
Modular receivers, with 12-24 Vac-dc (FLOXMR or 220 Vac (FLOXM220R) power, will let you control
up to 4 channels, also simultaneously, and to manage up to 1020 code numbers. Wire up following
this sequence:
1-2: POWER: from 10 to 28 Vac-dc
(FLOXMR) with jumper. 220 Vac
(FLOXM220R).
3-4: 1
st
RELAYOUTPUT: free
contact of a normally open relay.
5-6: 2
nd
RELAY OUTPUT: free
contact of a normally open relay.
7-8: 3
rd
RELAY OUTPUT:
free contact of a normally open
relay.
9-10: 4
th
RELAY OUTPUT:
free contact of a normally open
relay.
1-2: AERIAL:
aerial signal input.
- 34 -
CH.1
CH.1
CH.1
CH.1
34 5678
1. 2. 3. 4.
OUTPUTS
FLOXM220R = 220Vac
FLOXMR = 12 - 24 Vcc/ca
AERIAL
18 - 28 V
10 - 18 V
(FLOXMR only)

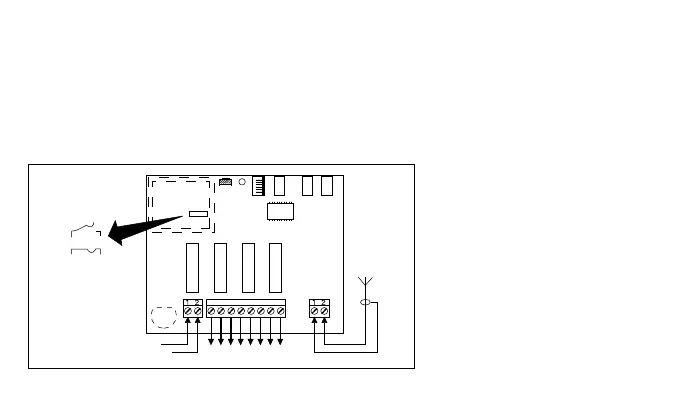

Fig. 2
