Nice Moby MB5015

6

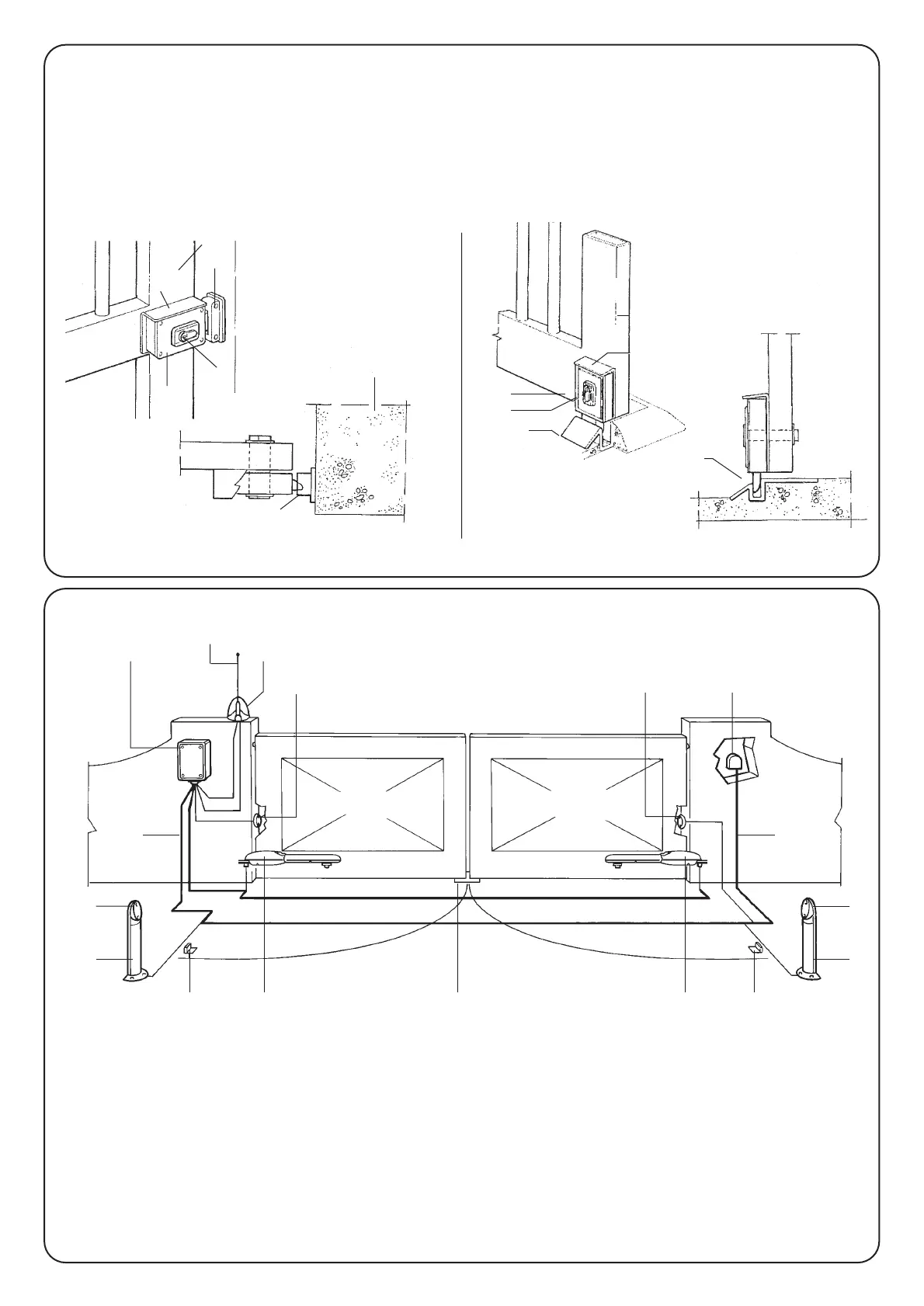

2.5) Mounting the electric lock
(optional accessory)
1 Electric lock
2 Fixing plate for electric lock (specify if horizontal or vertical)
3 Lock bolt strike plate*
4 Strike plate stop
5 Lock bolt
6 Lock
7 Gate
7
3
1
6
2
5
3
6
1
7
2
4
5
Horizontal assembly (for one leaf) Vertical assembly (for two leafs)
1 Column for photocells
2 Pair of opening travel stops
3 Mains power line
4 Control unit
5 Aerial
6 Flashing lamp
7 Photocell
8 Moby actuator
9 Vertical electric lock*
10 Key switch or digital keypad
*to install if the reversible models MB4605 and MB4615 are used or
if the gate exceeds a length of 3 m for each leaf.
2.6) Typical system layout
5
7
7
1
28 9
710
6
4
3 3
7
1
28
