8 – English

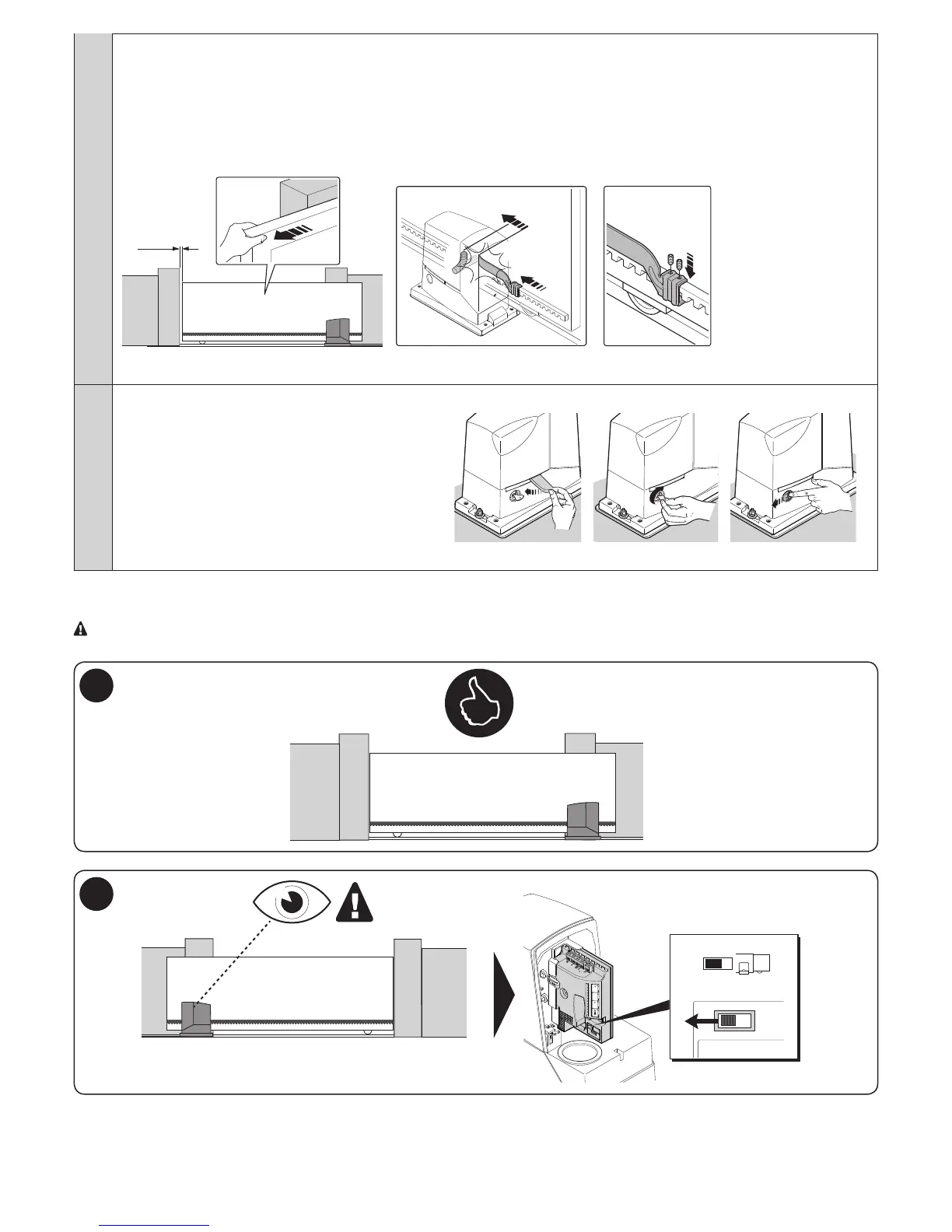

CLOSE:
a - slide the gate leaf closed by hand, stopping it 2/3 cm before the mechanical stop
b - slide the limit switch bracket along the rack in the close direction until the limit switch intervenes (a “click” will be heard)
c - after hearing the “click”, move the bracket further forward by 2 cm (minimum)
d - secure the bracket to the rack with the grub screws provided
2-3 cm
+2 cm
click!
09. Manually lock the gearmotor
Refer to the respective instruction manuals to install the devices belonging to the system.
IMPORTANT! – The gearmotor is congured (default setting) for right-hand side installation (Fig. 5); to install it on the left-hand
side, perform the operations shown in Fig. 6.
5
6
L4(R)
L1L2L3
Close
Open
Stop/Set
Flash
Photo Test
Stop
GND
SbS
24 V
Aerial
L4(R)
L1L2L3
Close
Open
Stop/Set
Flash
Photo Test
Stop
GND
SbS
24 V
Aerial
