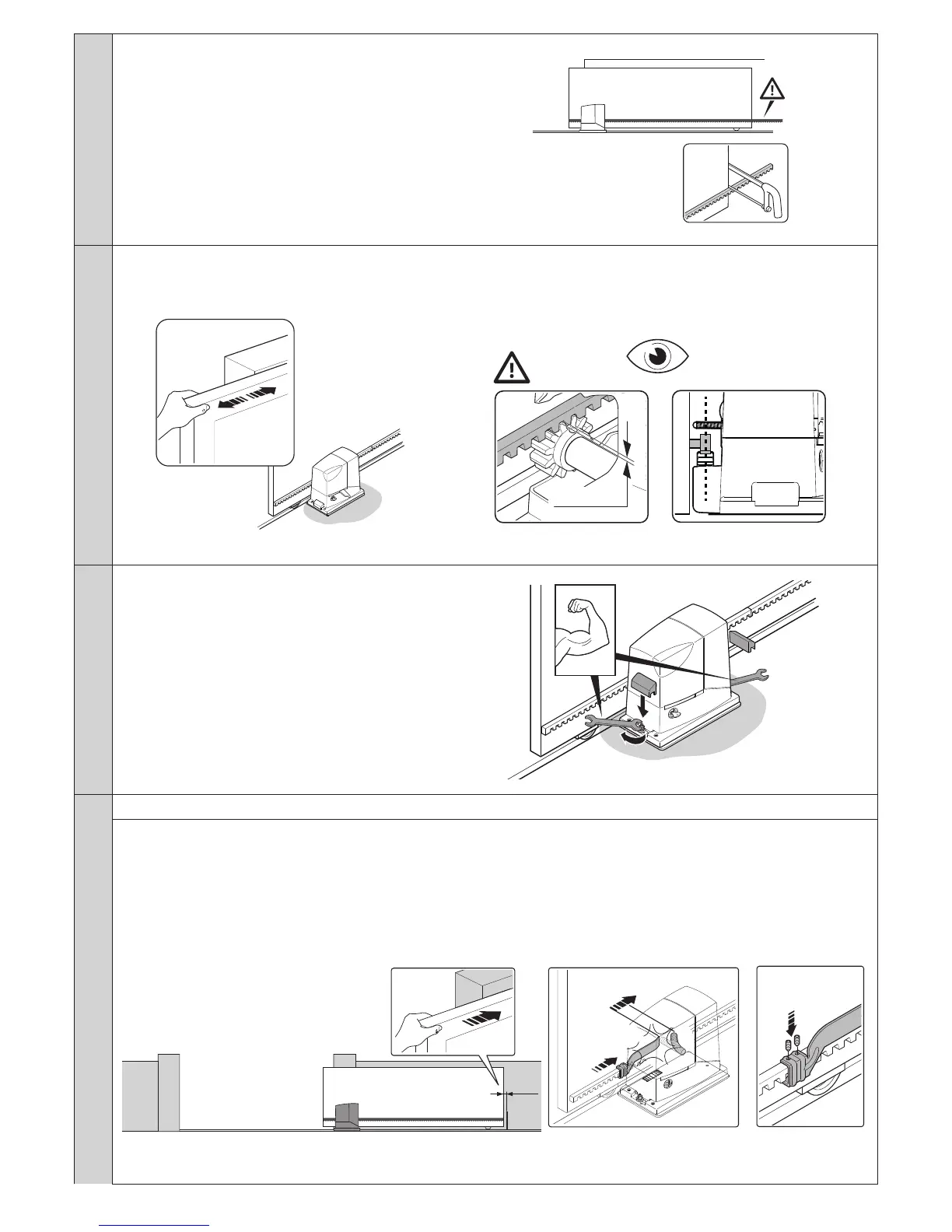

06. Slide the gate open and closed by hand to check that the rack is properly aligned with the pinion.
N.B.: make sure that there is a gap of 1–2 mm between the rack and pinion for the entire length of the gate
1÷2 mm
07. Strongly tighten the nuts for xing the gearmotor to the
foundation plate and cover the nuts with the relevant caps
08. Secure the OPEN and CLOSE limit switch bracket: perform the same operations for both limit switches
OPEN:
a - slide the gate leaf open by hand, stopping it 2/3 cm before the mechanical stop
b - slide the limit switch bracket along the rack in the open direction until the limit switch intervenes (a “click” will be heard)
c - after hearing the “click”, move the bracket further forward by 2 cm (minimum)
d - secure the bracket to the rack with the grub screws provided
2-3 cm
+2 cm
click!
