4 – English

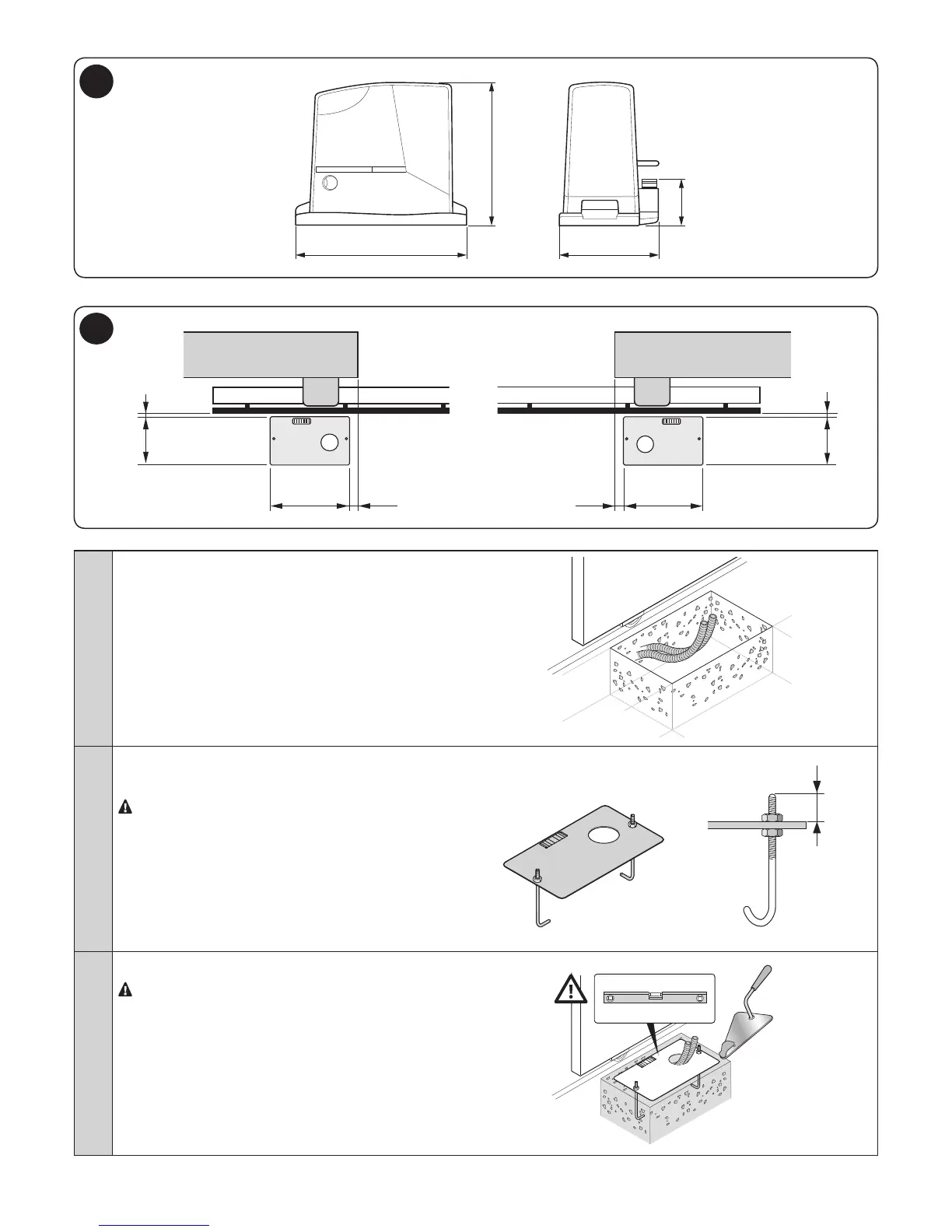

Before installing the system, check the gearmotor’s overall dimensions (Fig. 3) and installation measurements (Fig. 4):
3
300 mm 195 mm
277 mm
85 mm
4
0 – 10 mm
0 – 50 mm
192 mm
330 mm
0 – 10 mm
0 – 50 mm
192 mm
330 mm
01. Dig the foundations and arrange the tubes for the electri-
cal cables
02. Secure the two anchor bolts to the foundation plate with
one nut above and one below the latter.
Tighten the lower nut in such a way that the upper
thread protrudes by roughly 25/35 mm.
25 – 35 mm
03. Cast the concrete to secure the foundation plate.
Before the concrete hardens, make sure the
foundation plate is perfectly level and parallel to the
gate leaf.
