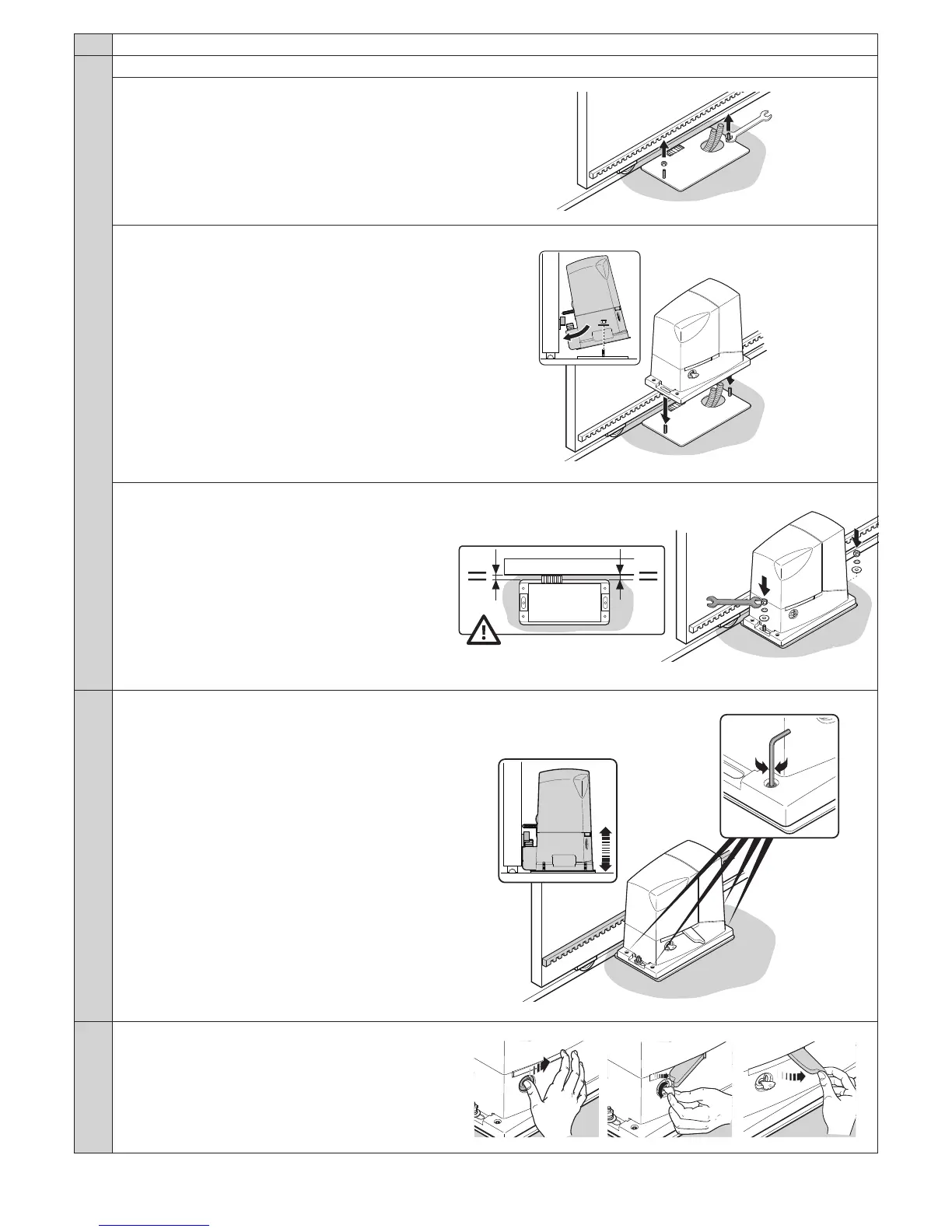

04. Wait for the concrete to harden.
05. Secure the gearmotor:
a - remove the top nuts of the anchor bolts
b - place the gearmotor on the anchor bolts: make sure
that it lies parallel to the gate leaf
c - insert the washers and nuts provided and tighten them
slightly
d - adjust the gearmotor’s height by tightening the adjust-
er grub screws: position the pinion at the right height by
leaving a gap of 1–2 mm from the rack (this so as to pre-
vent the gate leaf weight from bearing on the gearmotor)
e / f / g - release the gearmotor
