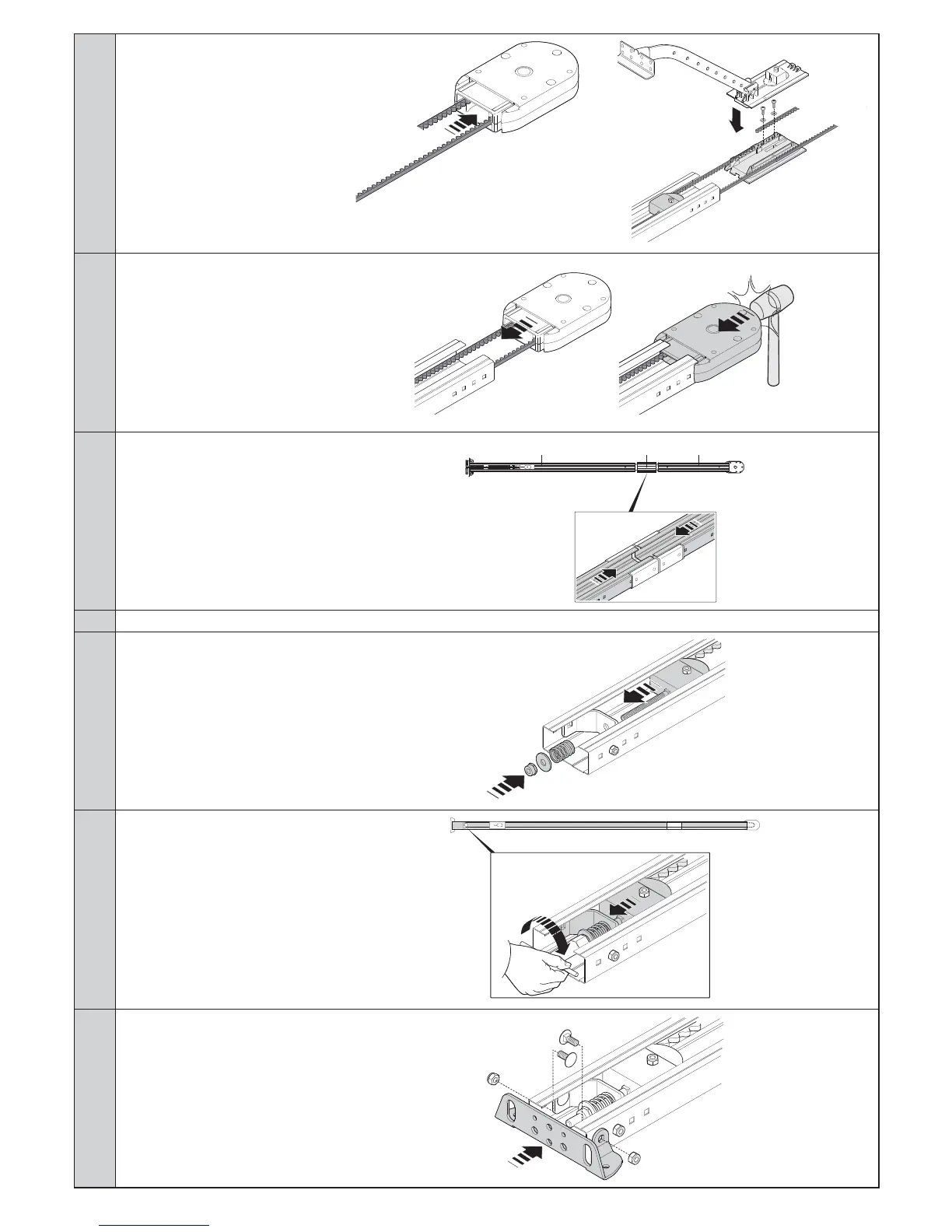

03. Pass the free end of the belt through
the head section and secure to the
carriage by means of the screws
and washers present.. Take care
when positioning the belt; the teeth
must be facing inwards, and must
be straight without twists.
04. Assemble the guide head section
A. This requires a certain force; if
necessary use a rubber mallet.
05. Using the joining brackets BjWSGD
two parts F.
F B F
06. Return the belt tensioner device and carriage to the initial position.
07. Insert the spring, washer and nut
D, in the screw of the belt tensioner
device,
08. Tension the belt by means of the nut
DTMSHKHSHRRTEjBHDMSKXS@TS
09. Assemble the bracket to the guide
with M6x14 bolts and nuts.
