INSTALLATION
3.1 - Gearmotor installation
Important! Before installing the gearmotor check Chapter 2,
the contents of the package to verify the materials and the
RYHUDOOGLPHQVLRQVRIWKHJHDUPRWRUƄJ
Attention! The garage door must be able to move with ease.
Limit to be complied with (according to EN12604):
- private use = 150 N maximum
- industrial/business use = 260 N maximum
300mm
200mm 200mm
380mm
2
C 2970mm
B 0÷400mm
A 40÷400mm
D 380mm
E 65÷300mm
3

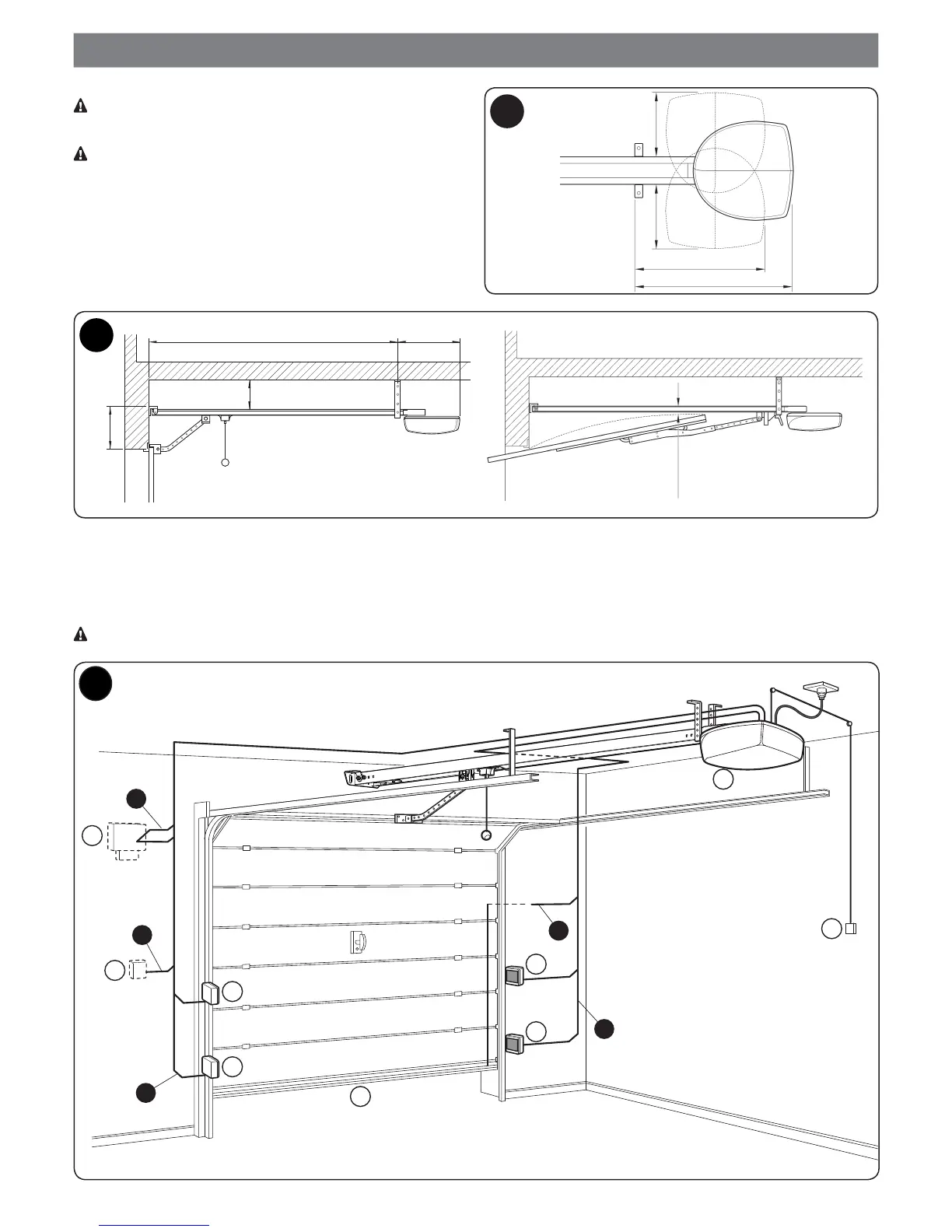

Fig. 4 shows the location of the components of a typical installation:
1 - gearmotor with integrated control unit 2 - photocells
k@RGHMFKHFGS JDXNODQ@SDCRVHSBG
5 - primary sensitive edge 6 - PP function cord
Figures 5a and 5b show typical installations of a protruding and non-protruding overhead door.
For installations on overhead doors, the accessory SPA5 is required.
