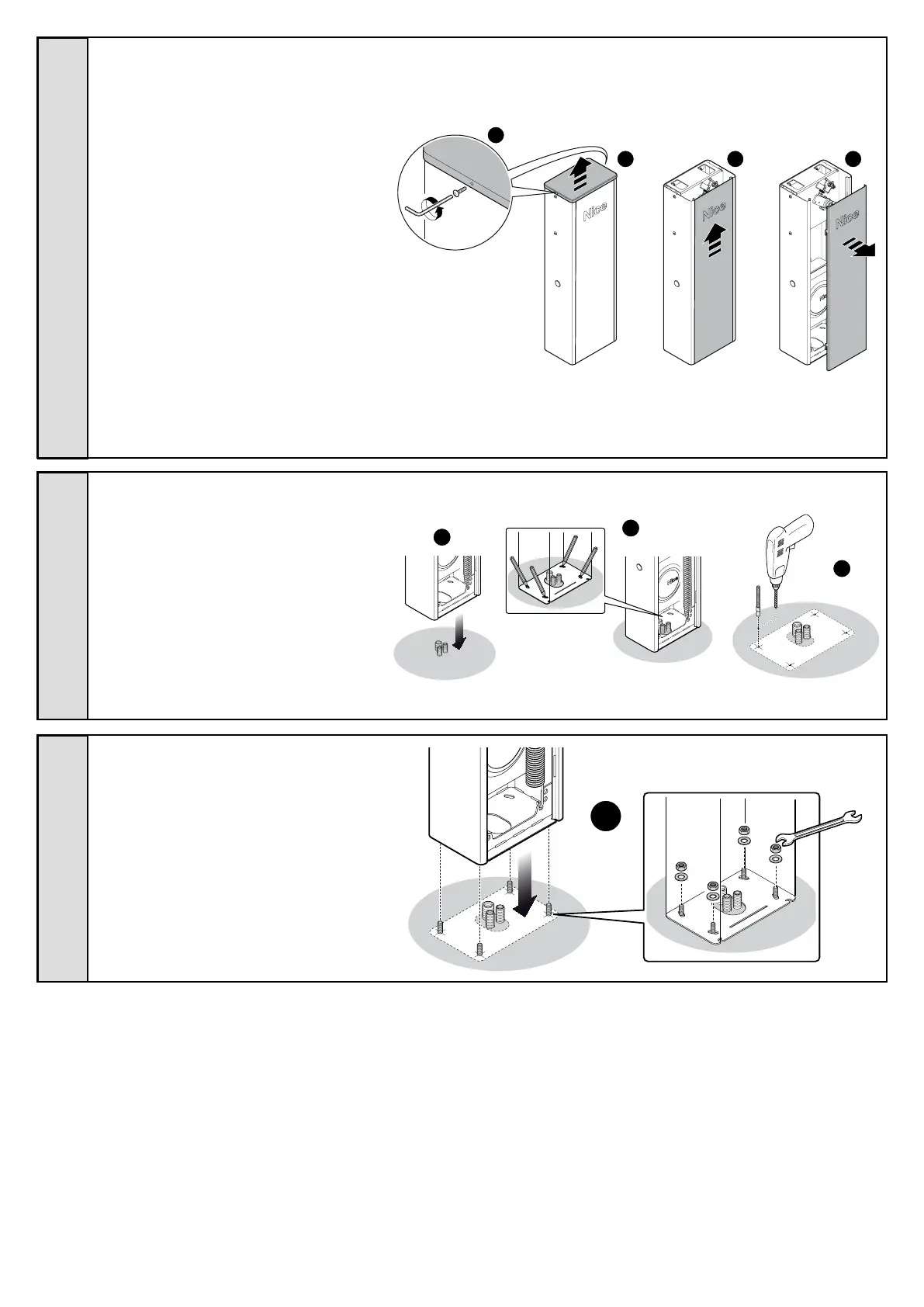

Access the cabinet by removing the lid screws
(a) and then the lid (b).
With the lid removed, slide the cabinet access
panel up (c) and then pull it away from the
cabinet (d)
In the case of a previously prepared plinth,
where the anchoring bolts were not cast into the
concrete, do the following:
Position the cabinet in the required positions. (e)
Mark out the 4 mounting points. (f)
Remove the cabinet and drill the correct size
holes for your expansion anchors (Not supplied)
where you have marked the 4 mounting points.
(g)
Place the cabinet onto the anchor bolts and
fasten firmly in place. (i)
NB! Minor adjustments can be made to the
alignment due to the slotted mounting holes.
Once the boom pole is installed, alignment may
be necessary.
