9
Rev. 2 – 10
th
November2015
Connection
Work on the device/system by unqualified personnel or failure to comply with warnings
can result in severe personal injury or serious damage to material.
Only suitably qualified personnel trained in the set-up, installation, commissioning and
operation of the product should carry out work on the device/system. This equipment
must be grounded.
The following terminals can carry dangerous voltages even if the Driver is inoperative:
the power supply terminals L, N
the motor terminals U, V, W

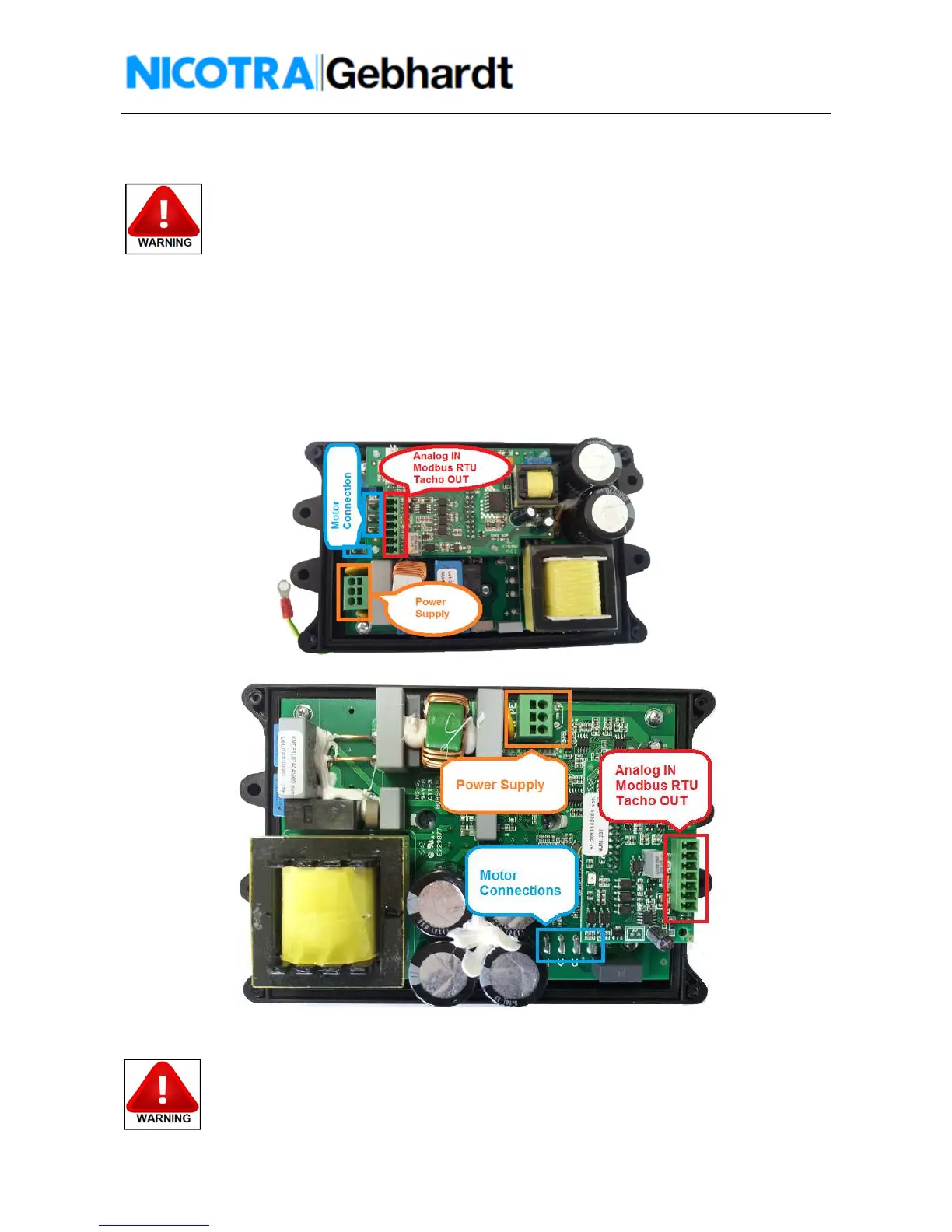

The DDMP driver connections are shown in figure 8 (1KW driver) and 9 (2KW driver).
- The motor is already connected to the Driver by the operators Nicotra||Gebhardt
- The end user have to connect the power supply cable
- The end user have to connect the command signal to the control board
Fig. 8 – 1KW Driver connection terminals
Fig. 9 – 2K Driver connection terminals
The grounding cable/metal strip connecting the Driver to the side plate of the driver must
not be disconnected.
