HR Series
Operating & Safety Instructions
English/USA – 11/09
Original Instructions
28

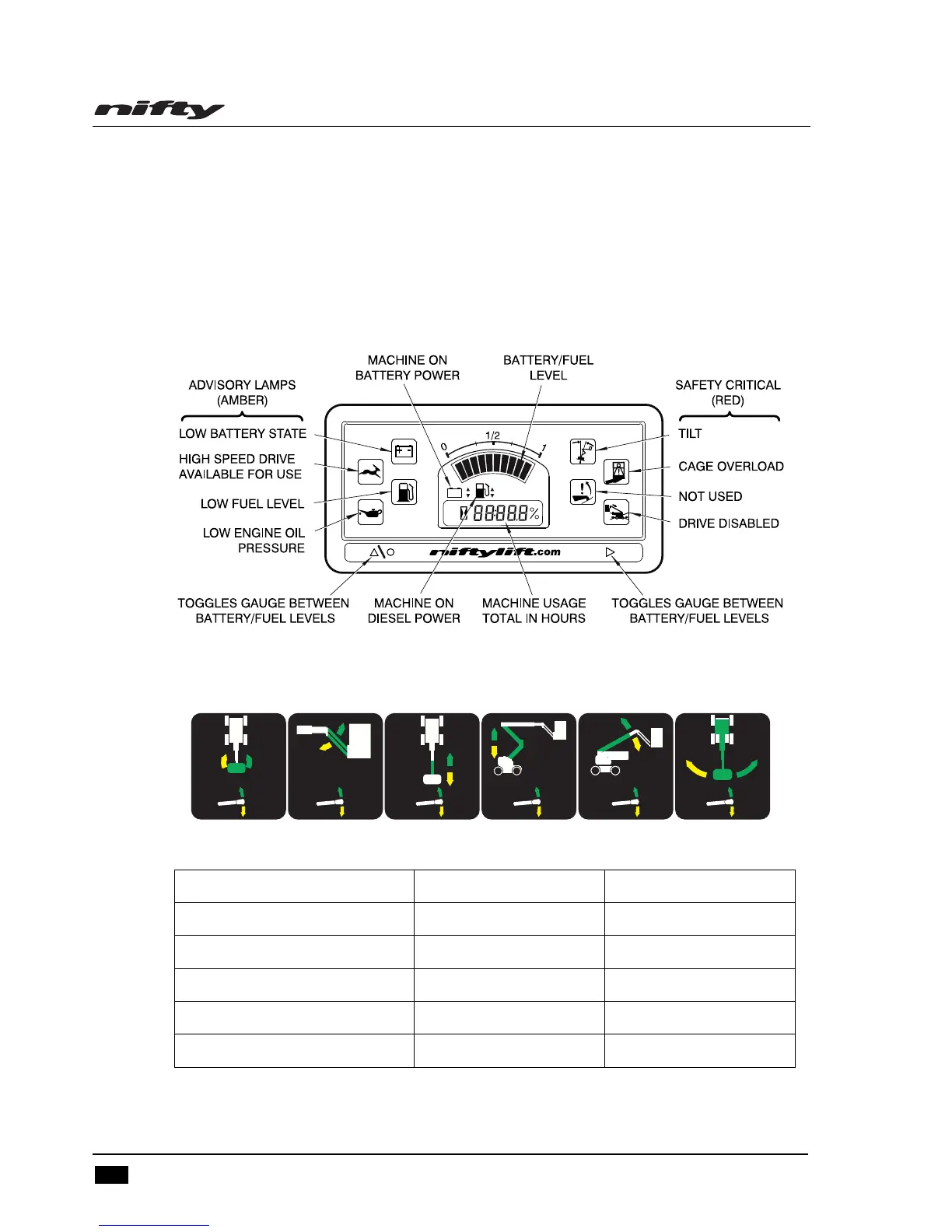

MULTI-FUNCTION DIGITAL GAUGE
Situated on the Cage Control Panel, this gauge provides a warning indication for a range of functions.
The red warning lamps on the right hand side indicate a safety critical situation where immediate
action is required; the amber lamps on the left are advisory. It also displays fuel or battery levels when
machine is in operation, automatically reverting to fuel level when diesel engine is started. Refer to
diagram below.
CAGE LEVERS
1 2 3 4 5 6
1 Operates Platform Rotation Up for Clockwise Down for Anti-Clockwise
2 Operates the Flyboom Up for Up Down for Down
3 Operates Telescoping Up for Tele-In Down for Tele-Out
4 Operates the Link Booms Up for Up Down for Down
5 Operates the Upper Boom Up for Up Down for Down
6 Operates Swing Up for Right Down for Left
P19747/01
