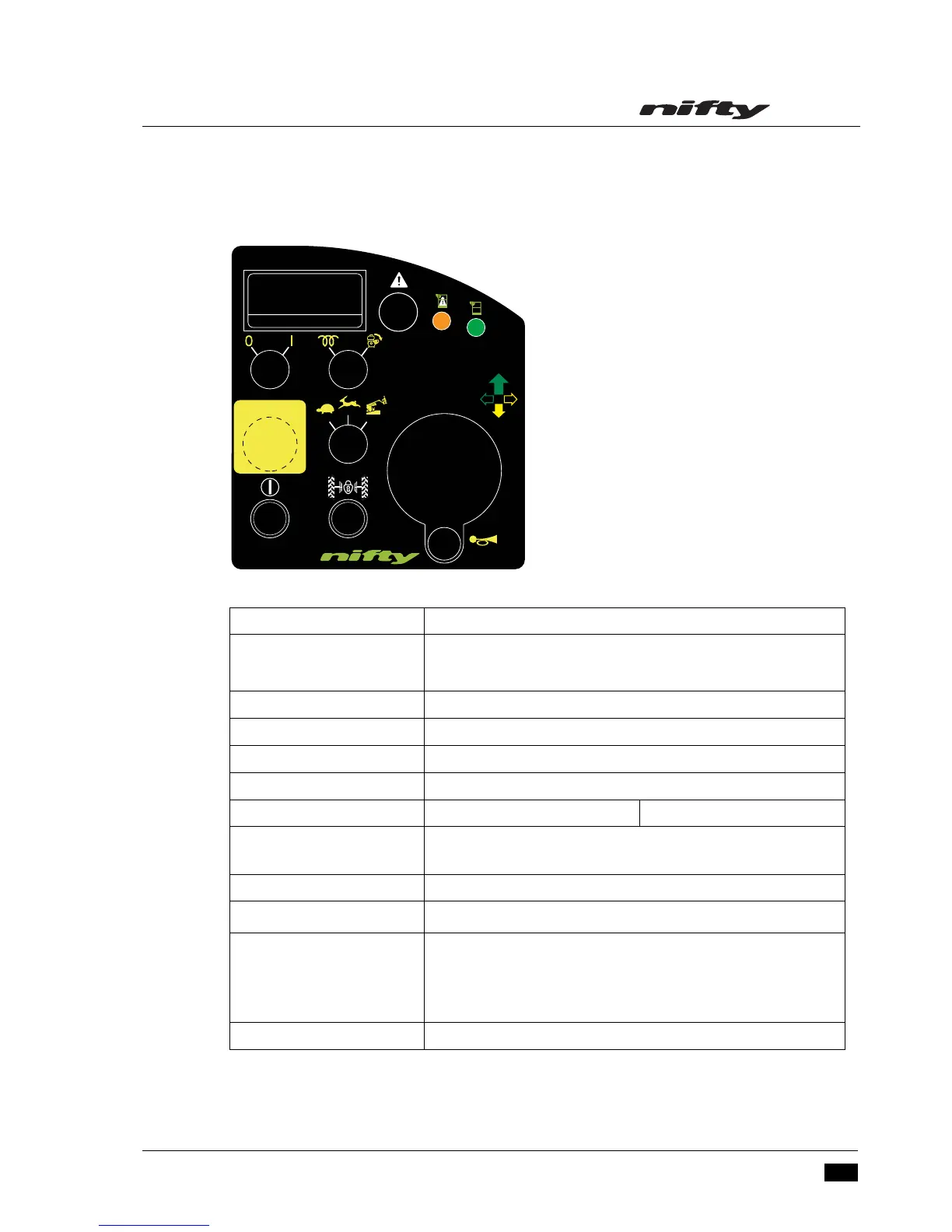

4.3 PLATFORM CONTROL OPERATION
4.3.1 PLATFORM CONTROL FUNCTIONS
1 Digital Gauge See diagram on page 27
2 Safety Warning Lamp
Indicates Safety Critical Problem
(Refer to Digital Gauge immediately)
3 Cage overload indicator Constant or Flashing amber (Refer to Section 4.6)
4 Cage overload indicator Constant green (Refer to Section 4.6)
5 On/Off Switch Cage functions ONLY
6 Diesel Glow/Start Anti-clockwise for Glow, Clockwise to Start engine
7 Emergency Stop Push to Stop machine Turn clockwise to Release
8 Drive Speed Selector
Turn Clockwise - Slow, Fast and High Gradeability/Off-road
modes
9 Green Power Button Push and hold to activate machine
10 Diff-lock lamp
Illuminates when Off-road (AWD) mode is selected.
11 Joystick
Grip the joystick and hold the trigger switch at the front. Machine
movement is achieved by slowly moving the joystick away from
the neutral position in the required direction. Steer by using the
thumb rocker switch located on top of the joystick.
12 Horn Push to sound
** Active in Drive mode ONLY
P20663/03
1
2
5
3
4
6
7
8
11
12
9
10
2x4
2x4
4x4
