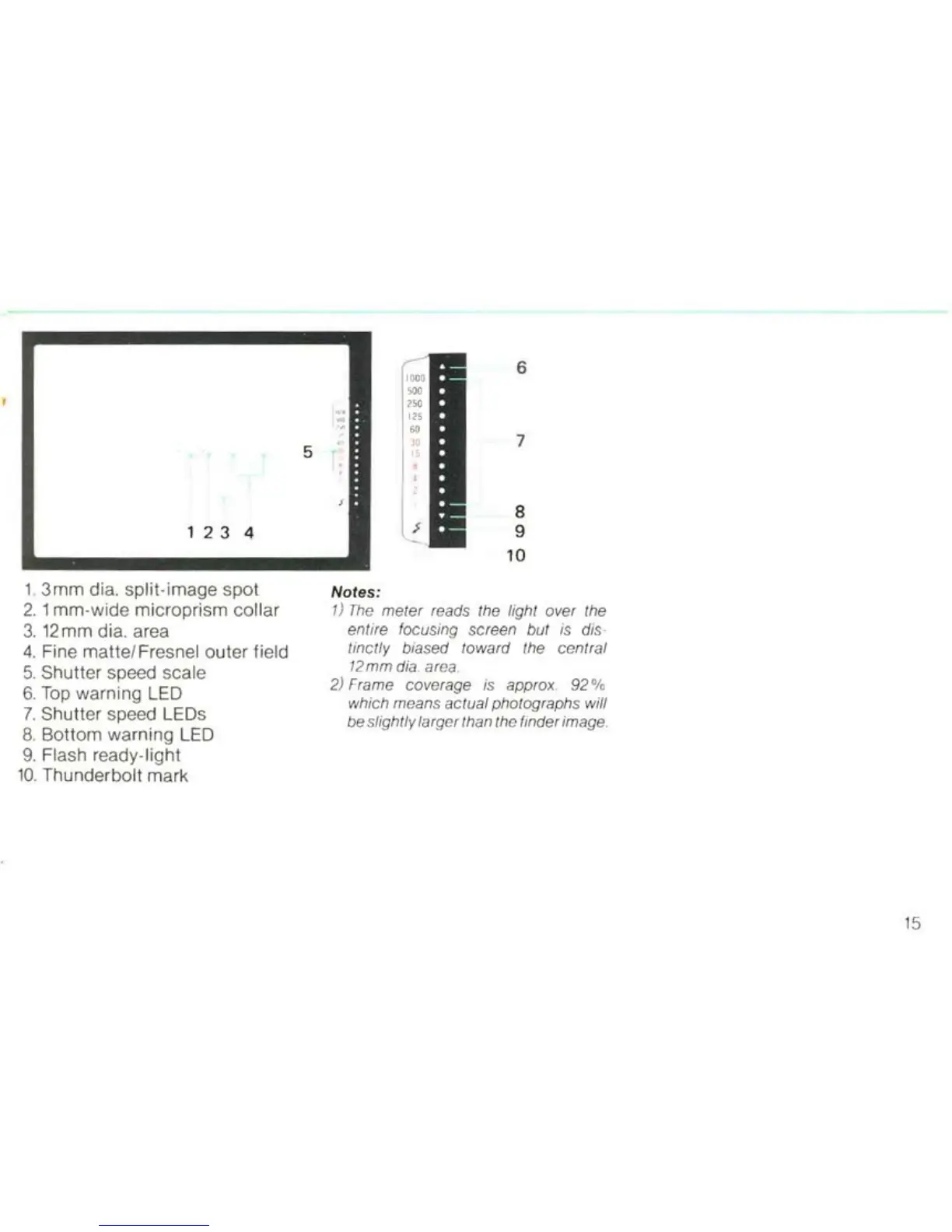

Nikon FG - Page 15

5
1 23 4
1.
3mm dia. split-image spot
2. 1 mm-wide microprism
collar
3. 12mm dia. area
4. Fine matte/
Fresnel outer field
5. Shutter speed scale
6. Top warning LED
7. Shutter speed LEDs
8. Bottom warning LED
9. Flash ready-light
10. Thunderbolt mark
Notes:
6
7
8
9
10
1) The meter reads the light over the
entire focusing
sc reen but is dis·
tinctly biased toward the centr al
12mm dia area.
2) Frame coverage is approx 92 %
which means actu al photographs will
be slightly larger than the finder image
15
