Nikon N Series Quick Start Guide

2

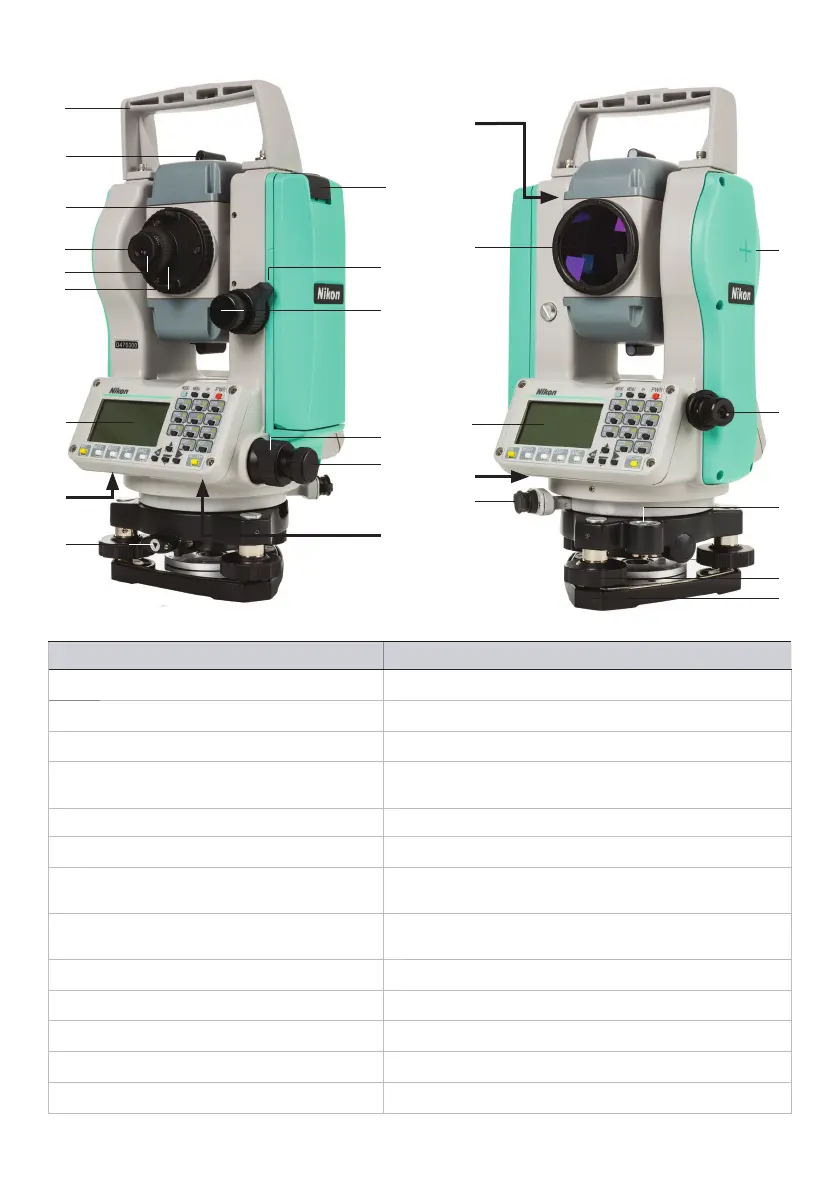

Item Description Item Description
1 Carrying handle 14 Horizontal tangent screw
2 Optical sight (Finder) 15 CFR label
3 Telescope focusing ring 16 Laser Safety label
4 Telescope eyepiece 17
Objective lens
C CAUTION: Laser light is emitted from this part
5 Diopter ring 18 Face-2 display/keyboard (for N 2"/K 2")
6 Reticle plate cover 19 EAC label
7 Face-1 display/keyboard 20
Data output/Input connector
C CAUTION: Input voltage shall be 4.5 to 5.2 V DC
8 FCC label 21
Trunnion axis indication mark
Tapping point for NFC
9 Tribrach clamp knob 22 Optical plummet
10 Battery case mounting button 23 Circular level
11 Vertical tangent screw 24 Leveling screw
12 Vertical clamp 25 Tribrach
13 Horizontal clamp
Face 1
Face 2
1
2
3
4
5
6
7
15
10
13
14
11
12
17
16
21
8
18
20
22
23
24
25
9
19

Nikon N Series Specifications

General

Brand	Nikon
Model	N Series
Category	Measuring Instruments
Language	English
