Nikon N Series Quick Start Guide

3
Standard components
• Instrument main body
• Battery pack
• Battery charger U-120
• Adjustment pin, Allen wrench
• Objective lens cap
• Vinyl rain/dust cover
• Carrying case
• Shoulder strap
Charging the battery pack
C
WARNING: Before charging or connecting the battery pack, please refer to the battery safety
information in the Nikon N Series/K Series Total Station Instruction Manual.
The battery pack is supplied partly charged. Before using it for the first time, charge the battery pack
completely.
Connect the charger to the USB bus with the supplied USB cable. The power input must be 5 V with at
least 1 A of current capability.
Note – A USB AC adapter is not included. Please prepare an appropriate one. USB PD (Power Delivery) AC
adapters cannot be used.
Inserting the battery pack
Before inserting the battery pack, clear any dust or other foreign particles from the battery contacts.
1. Hold the instrument steady with one hand.
2. Fit the two projections at the bottom of the battery
case into the concave sections at the bottom of the
instrument.
3. Press the battery case mounting button.
4. Push the battery pack against the instrument and
release the battery case mounting button. Ensure that
the battery case mounting button is fully released and
the battery pack is securely attached to the instrument.
C CAUTION: If the battery box cover is not closed,
this could adversely affect the watertightness of the
instrument.

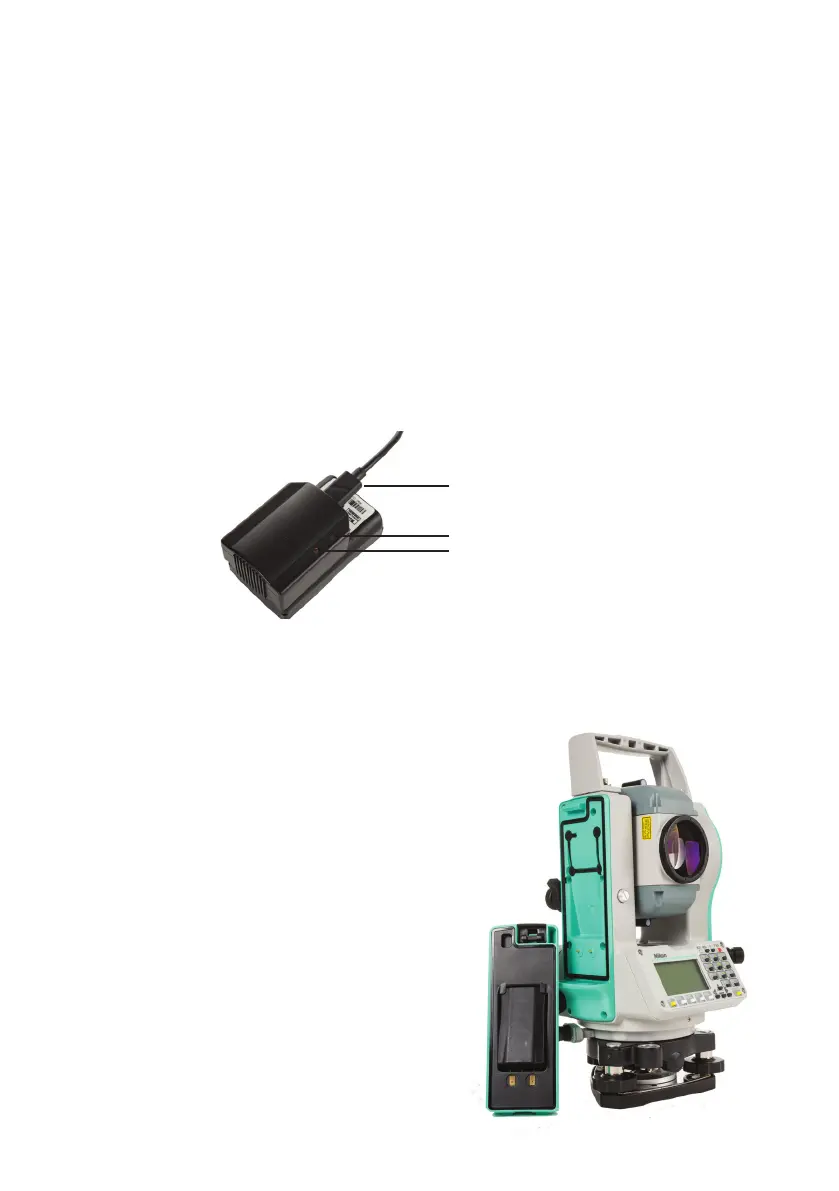

Orange indicator
Green indicator
USB Type C connnector
