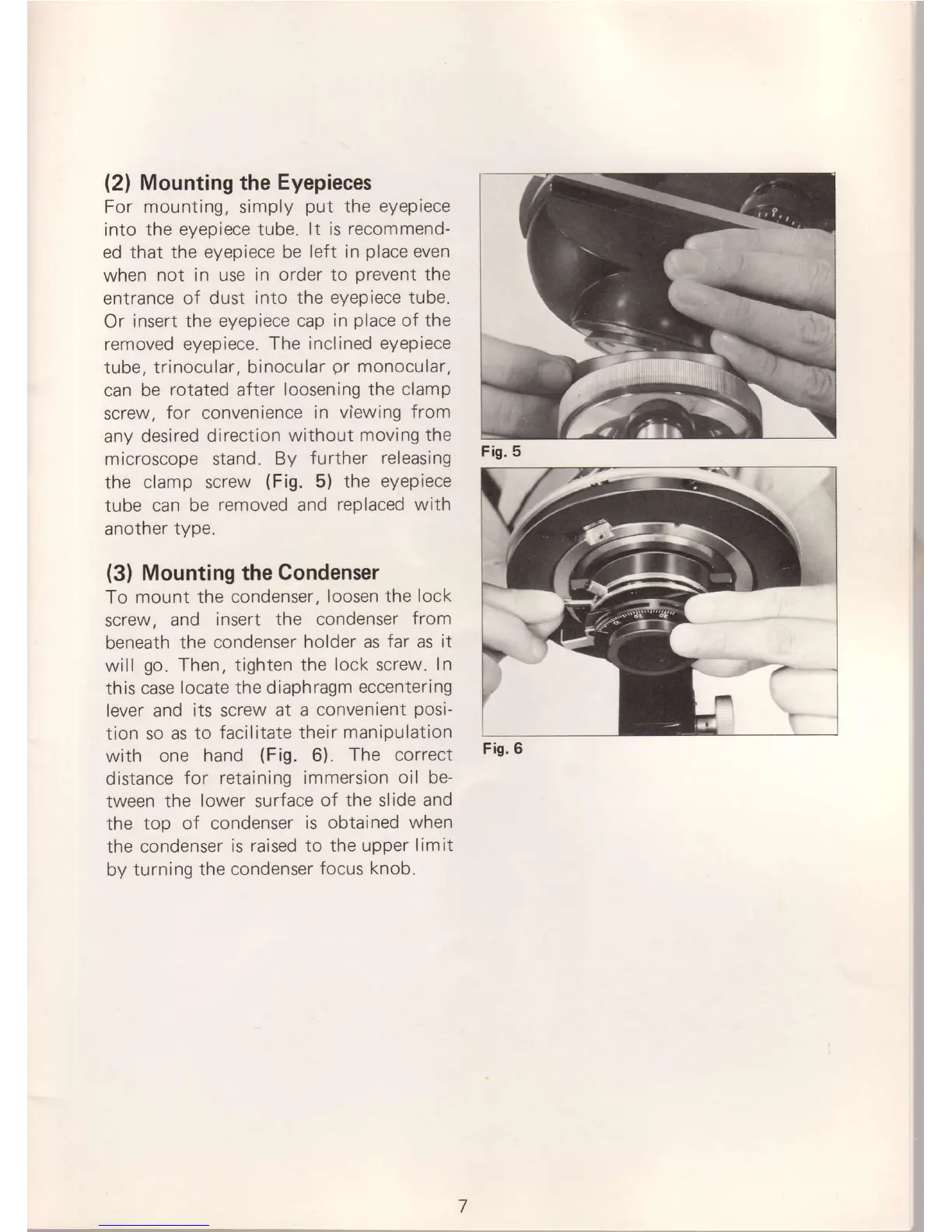

Nikon S-kt - Mounting the Eyepieces; Mounting the Condenser

(2)
Mounting
the
Eyepieces
For mounting, simply
put
the
eyepiece
into the eyepiece tube.
lt is
recommend-
ed that the eyepiece be
left in
place
even
when
not in use
in order to
prevent
the
entrance
of dust into
the eyepiece tube.
Or
insert
the eyepiece cap
in
place
of the
removed
eyepiece. The inclined
eyepiece
tube,
trinocular, binocular
gr
monocular,
can be
rotated
after
loosening the
clamp
screw,
for convenience
in viewing
from
anv desired
direction
without moving
the
microscope stand.
By
further releasing
the clamp screw
(Fig.
5) the eyepiece
tube can
be
removed
and
replaced
with
another
type.
(3)
Mounting the
Gondenser
To mount the
condenser,
loosen the
lock
screw.
and
insert
the condenser
from
beneath
the condenser
holder as
far as it
will
go.
Then, tighten
the
lock
screw.
In
this
case
locate the diaphragm
eccentering
lever
and its screw
at a
convenient
posi-
tion so as
to
facilitate their manipulation
with
one hand
(Fig.
6). The
correct
distance
for retaining immersion
oil
be-
tween
the lower surface
of
the
slide
and
the
too of condenser
is obtained
when
the condenser
is
raised to the upper
limit
by turning
the condenser
focus
knob.
Fis. 5
Fis.6
