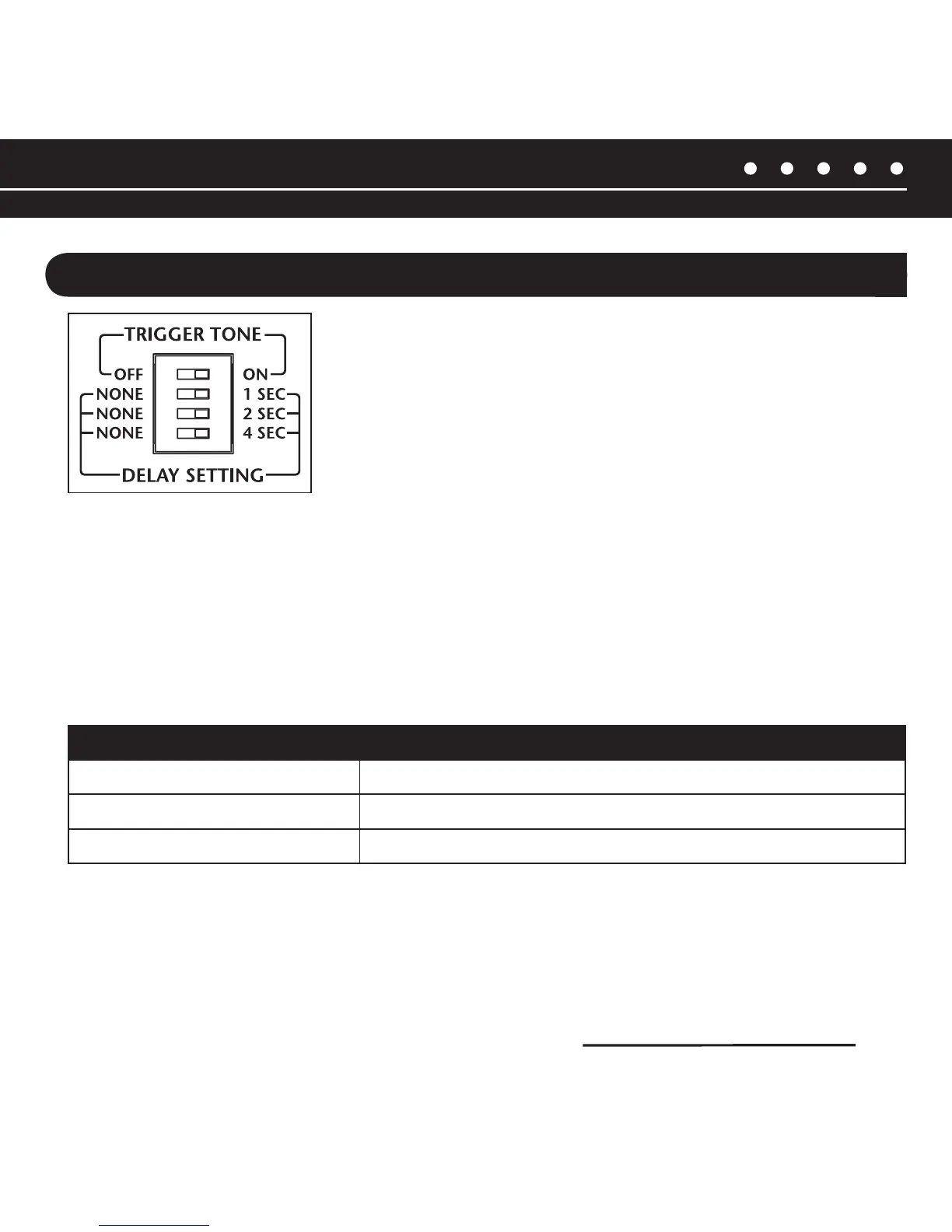

Setting the Tone/Delay - Four DIP switches provide a selectable
trigger tone and various delays between when a chime is triggered
and when the chime is actually generated.
Turning switch 1 ON enables a trigger tone that activates the audio
sensing of the Paging Input of a Niles MultiZone System. Switches
2, 3 and 4 ON enable delay times. The delay time provided for each
switch is indicated in the table.
Delay times are summed together when multiple switches are selected (e.g. 2 and 3 = 3 seconds).
There is no delay included if none of these DIP switches are selected.
Notes: 1. THE CHIME CONTACT AND VOLTAGE TRIGGERS ARE IGNORED DURING A CHIME.
2. A TRIGGERED CHIME HAS A SHORT RECYCLE TIME AFTER THE COMPLETION OF PLAYBACk.
DURING THE RECYCLE, NO CHIME WILL PLAY IF A CONTACT CLOSURE IS ACTIVATED.
RECOMMENDED TONE/DELAy SETTINGS
13
INSTALLATION SETTINGS (Continued)
Niles MultiZone System Recommended Setting
Niles ZR-4 Tone On (1) no delay
Niles ZR-6 Tone On (1) no delay
IntelliControl
®
ICS GXR2 Tone On (1) no delay
