6
R
EMOTE
C
ONTROL
A
NYWHERE
! K
IT

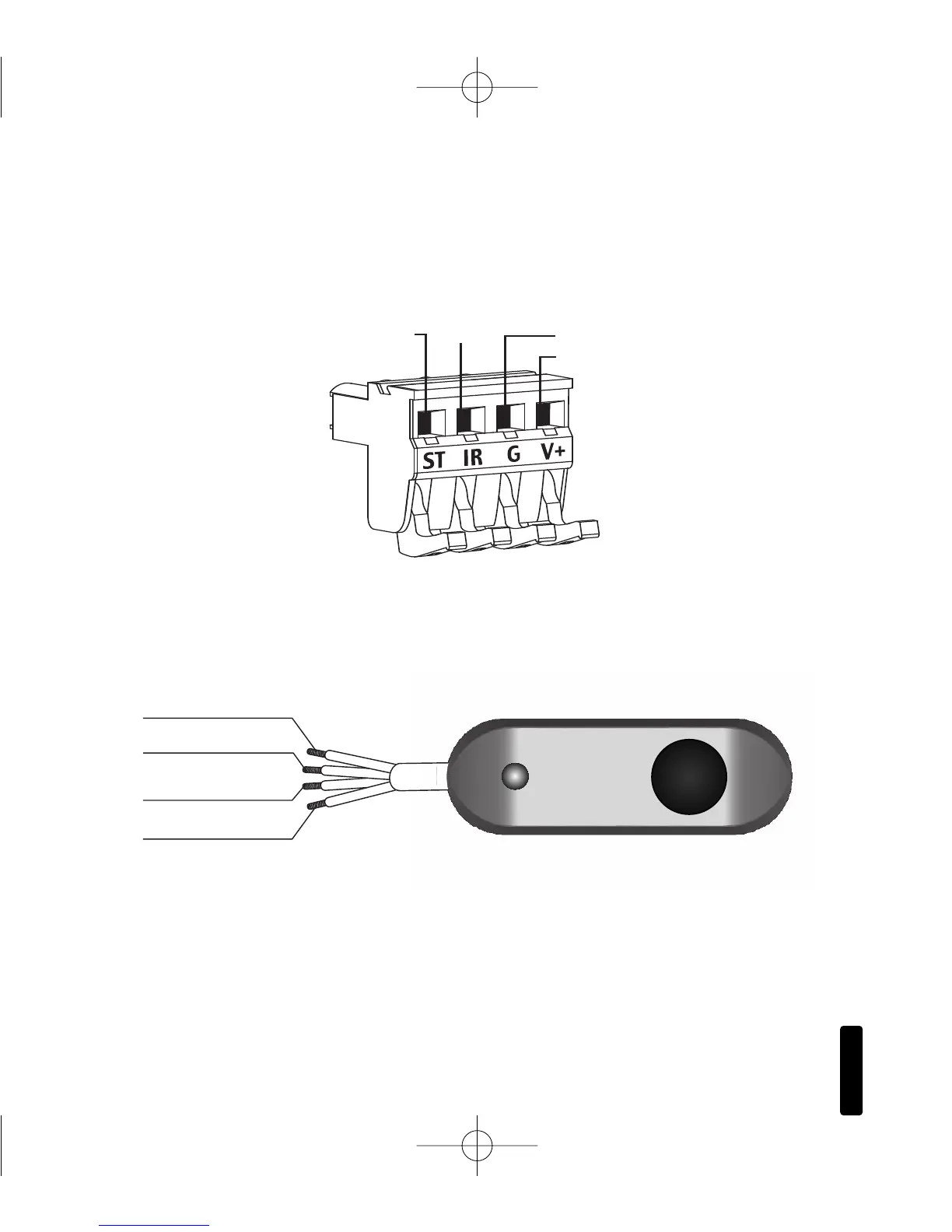

Figure 3: Removable
Connector Plug
1 = Green/White - 12V
2 = Green - DATA
3 = Orange/White - GROUND
4 = Blue - EMPTY
5 = Blue/White - STATUS
6 = Orange - EMPTY
7 = Brown/White - EMPTY
8 = Brown - EMPTY
1 = STATUS
4 = 12V DC
1 = 12V
2 = DATA
2 = DATA 3 = GROUND
Red = 12V+
Black = Ground
Yellow = Data
White = Status
Figure 4: Wiring legend
DS00408ACN_RCA3 Kit.qxp 1/17/05 3:52 PM Page 6
