3156 - 3156 L, M, H
3306 - 3306 L, M, H
- Ricambi consigliati
- Pièces détachées co-
nseillées
- Empfohlene Ersatz-
teile
- Recommended spare
parts

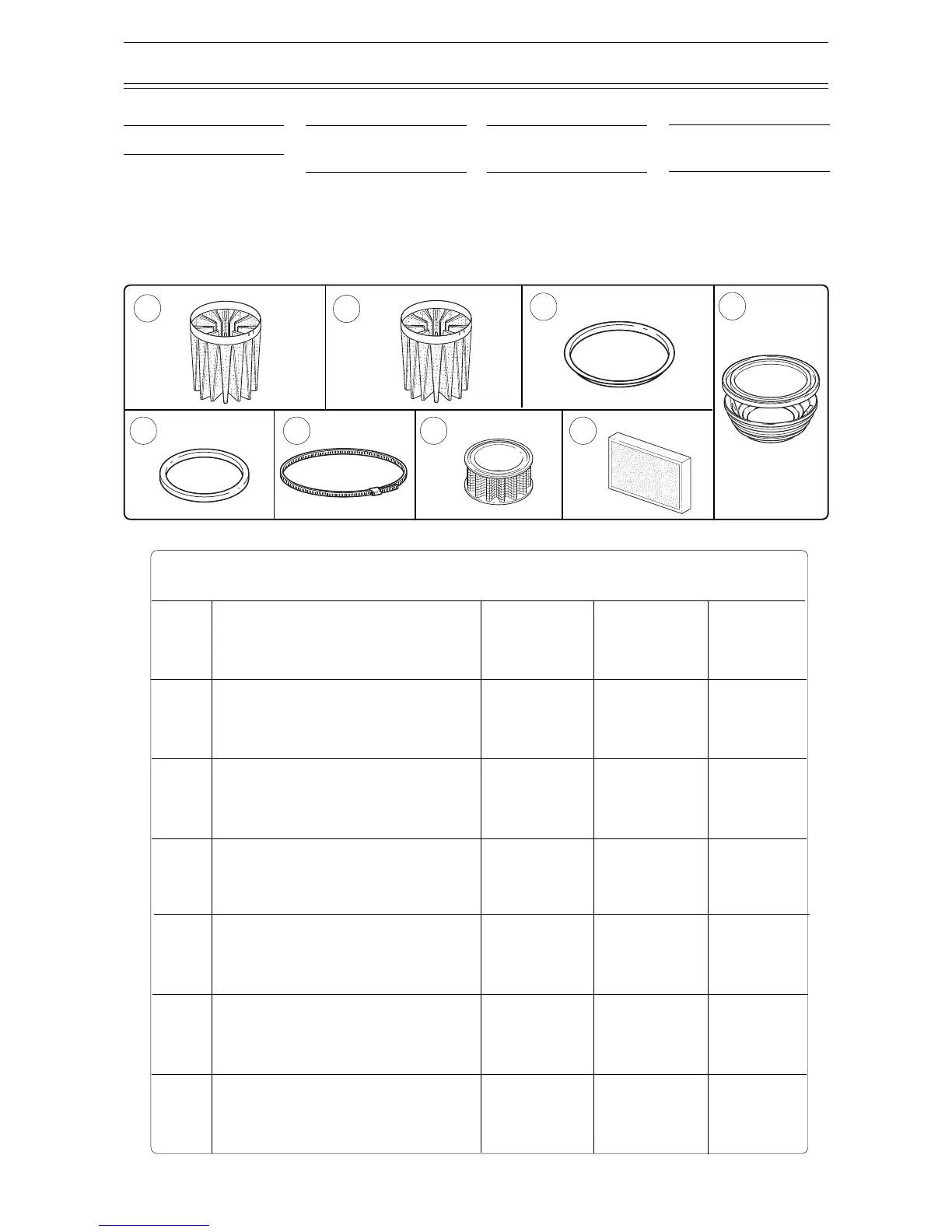

Legenda ricambi consigliati /
List of recommended spare parts
Légende des pièces conseillées/
Liste der Empfohlenen Ersatzteile
Pos. Denominazione Mod. Dimensioni N° codice
Description Mod. Dimensions Code n°
Désignation Mod. Dimensions Code n°
Bezeichnung Modell Abmess. Code-N.
1 Filtro stellare “L” 3306 Ø 460 17080
Star filter “L”
Filtre étoile “L”
“L” Sternfilter
3156 Ø 360 17079
2 Filtro stellare “M” 3306 Ø 460 17245
Star filter “M”
Filtre étoile “M”
“M” Sternfilter
3156 Ø 360 17244
3 Anello porta filtro 3306 Ø 460 15003
Filter ring
Anneau porte-filtre
Filtertragering
3156 Ø 360 15002
4 Guarnizione anello porta filtro 3306 Ø 460 17026
Filter ring seal
Joint anneau porte-filtre
Dichtung des Filtertragerings
3156 Ø 360 17025
5 Fascetta stringifiltro 3306 Ø 460 18079
Filter clamp
Collier de serrage filtre
Schlauchschelle
3156 Ø 360 18078
6 Filtro assoluto “H” in aspirazione 3306 Ø 410 17263
Upstream Hepa filter “H”
Filtre absolu “H” à l’aspiration
“H” Absolutfilter in Saugseite
3156 Ø 170 17262
The following is a list of spare
parts that should be kept ready
to hand in order to speed up
maintenance work.
1
4 5
6
7
3
SOL31
2
8
Il est recommandé d’avoir tou-
jours à disposition les pièces
détachées illustrées ci-dessous
pour rendre les interventions
d’entretien plus efficaces.
Hier folgt eine Liste der Ersatz-
teile, die man stets auf Lager
halten sollte, um etwaige
Wartungsarbeiten zu beschleu-
nigen.
Di seguito si elencano i ricambi
che si consiglia di tenere sem-
pre disponibili così da velociz-
zare eventuali interventi di ma-
nutenzione.
Fig. 20
3307LMH30
3307LMH30
3307LMH32
SOL32 3307LMH31 3307LMH33
