DETERGENT S UPPLY SYSTEM
DETERGENT TANK AND SUPPLY SYSTEM CLEANING
1. Empty the detergent tank (14) through the pipe (26).
2. Take the detergent flow control lever (6) in wide-open position, then activate the machine until the detergent
inside the machine is exhausted.
3. Carry out the Detergent filter cleaning (see the following procedure).
DETERGENT FILTER CLEANING
1. Drive the machine on a level ground.
2. Turn the switch key (2) to OFF position.
3. Operating on the left lower side of the machine, remove the cover (A) and the wire gauze (B), clean and install
them again on the related support (C).
4. Carry out step 1. and 2. in the reverse order.

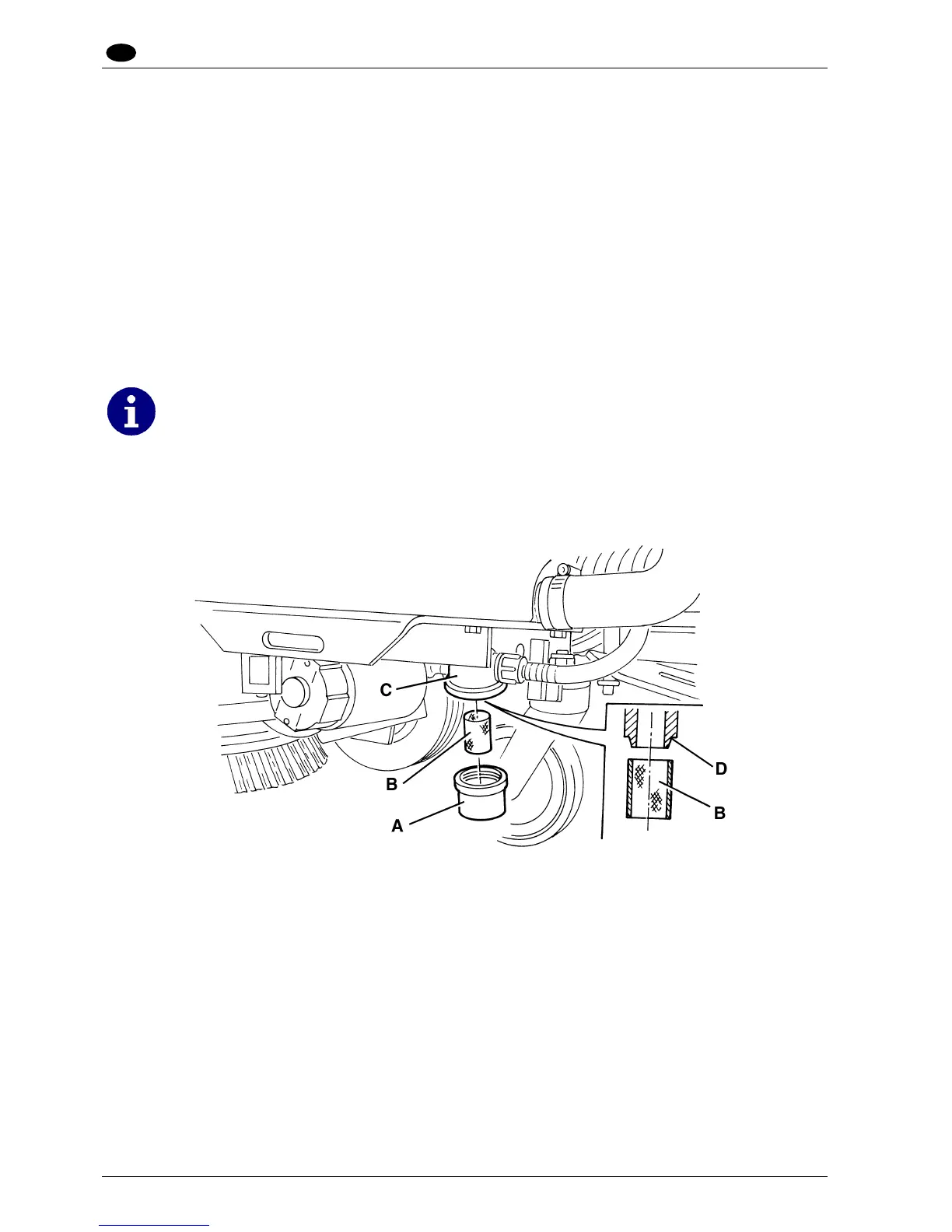

Figure 1
S300164
Remark: The wire gauze (B) must be correctly positioned on the support (C) housing (D).
