Service / Repair.
Dismounting / mounting of front cabinet and accessory storage.
1. Remove the handle (fig. 1) by pressing the 2 * 2 snap locks (fig.2). Loosen one side
first and then the other side.
2. Remove the 2 torx (TX20) screws from the bag side (fig. 3) and the 2 torx screws from
each side (fig 4 & 5)
3. Loosen the front cabinet from the accessories storage with a screw driver as shown on
fig. 6. Now the front cabinet can be lifted upwards to dismount it. The accessories stor-
age can be released by pulling it backwards.

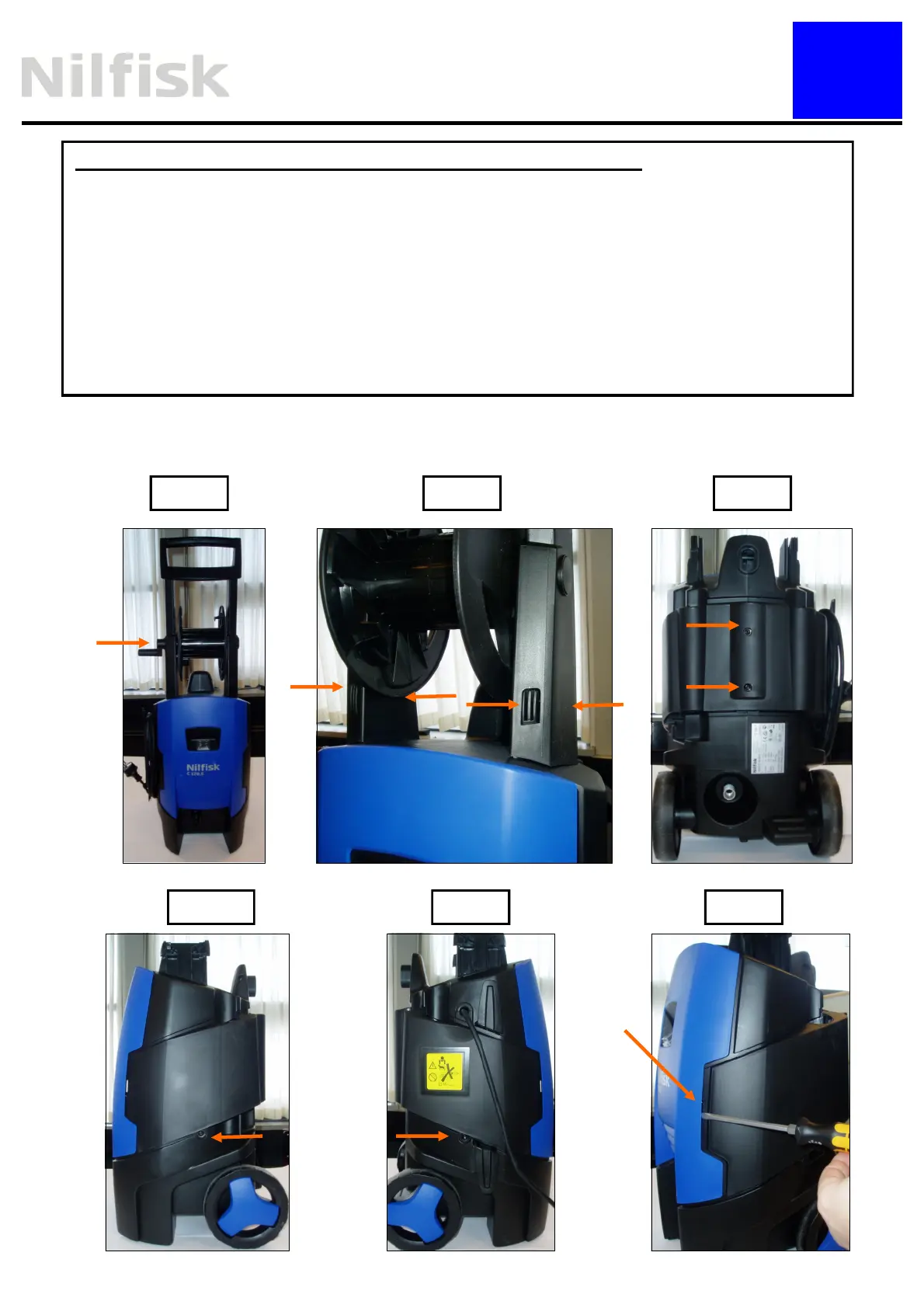

Fig. 1 Fig. 2 Fig. 3
Fig. 4 Fig. 5 Fig. 6
