BRUSH/PAD-HOLDER DECK DISASSEMBLY/ASSEMBLY [MICROMATIC M17E]
Disassembly
Check that the switches (5 and 6) are turned to “0”.
If there is recovery water in the tank (43), drain it through the hose (22).
Disconnect the vacuum hose (29) from the squeegee (17).
Open the cover (12).

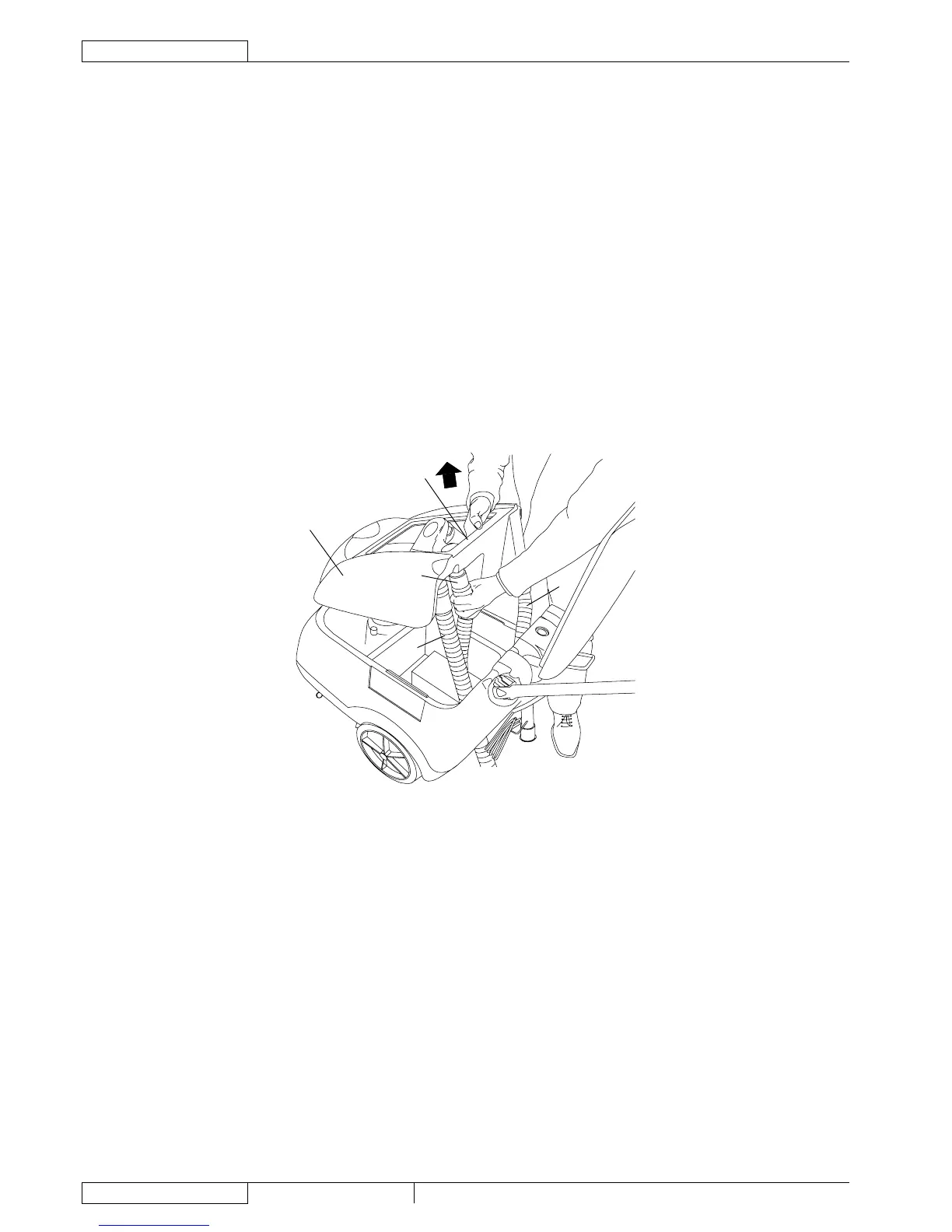

Grasp the recovery water tank (A) in the area (B) and lift it, as shown in the gure, then disconnect the vacuum hose (C) from
the tank and remove the tank (A) together with the hoses (D) and (E).
Remove the screws (F) and the terminal board box sealing cover (G), then disconnect the brush motor cable (H) from the
terminal board.
Disconnect the brush motor cable (H) from the fasteners (I).
Remove the left deck fastening screw (58).
Use a protection (K) to avoid damaging the machine and tilt it carefully to lay its left side on the oor.
Disconnect the solution hose (L) from the solenoid valve (M).
Remove the right deck fastening screw (57).
Remove the deck (O).
Assembly
Assemble in the reverse order of disassembly, and note these items:
When reassembling the deck (O), reinsert the deck xing springs (P) correctly.
When installing the terminal board box cover (G), check for gasket integrity and efciency.
