A-18 / ENGLISH
A-18 - FORM NO. 56041656 - Exterra™ / SR 1900
SIDE BROOM MAINTENANCE
To adjust the Side Broom...
1 Drive the machine to an area with a level fl oor and set the parking brake.
2 Pull the Main Broom Lever (B) back and slide to the right and up to lower the main and side brooms.
3 See Figure 2. When in the Down position, the Side Broom (9) should be contacting the fl oor from the 10 O’Clock (A1) to the 3 O’Clock (A2)
area shown.
4 If it requires adjustment, turn the Side Broom Height Adjustment Knob (10) either clockwise to raise or counter-clockwise to lower the side
broom.
NOTE: The machine should be stored with the Side Broom (9) in the raised position. The Side Broom (9) should be replaced when the bristles
are worn to a length of 3 inches (7.62 cm) or it becomes ineffective. The Side Broom height must be re-adjusted when ever the broom has been
replaced.

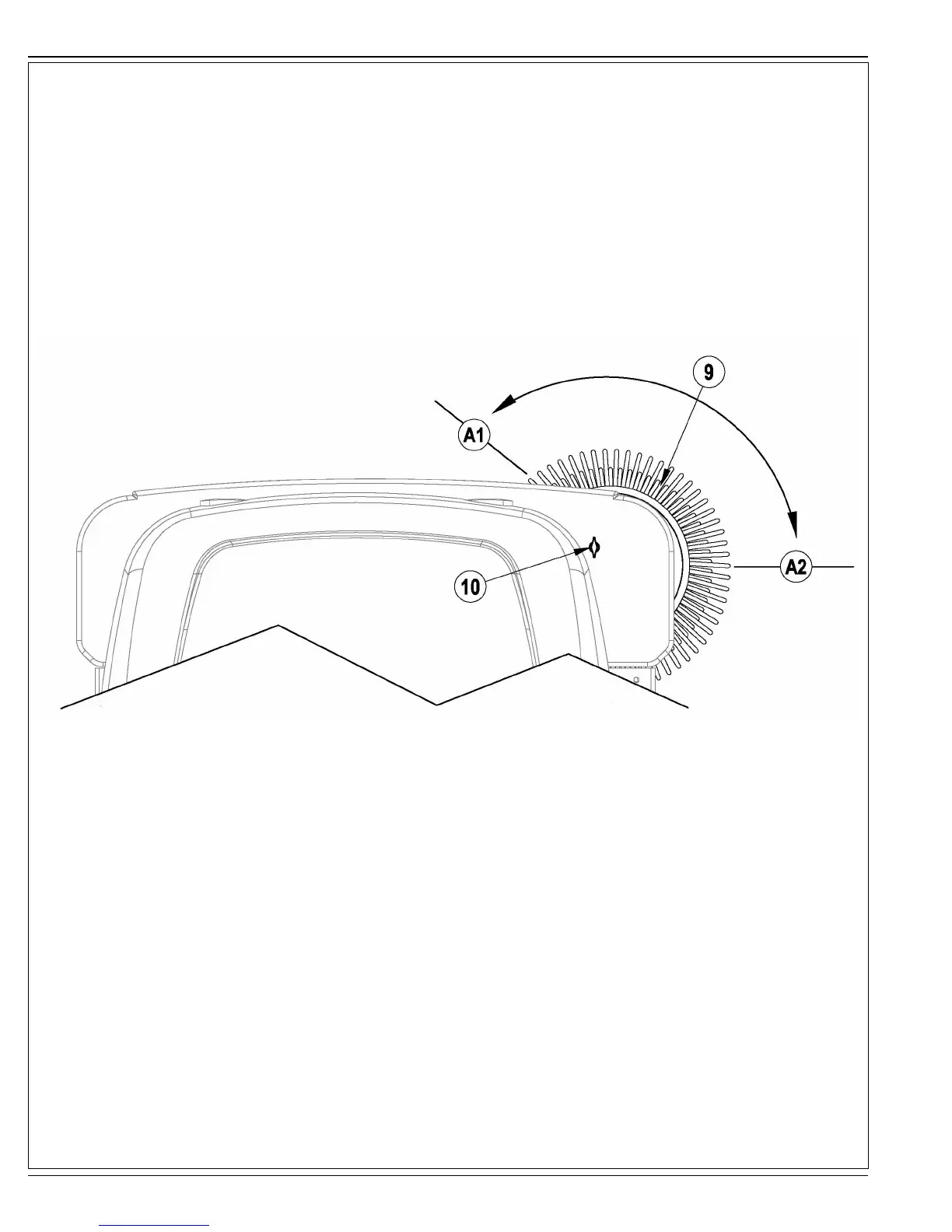

FIGURE 2
