A-8 / ENGLISH
A-8 - FORM NO. 56041656 - Exterra™ / SR 1900

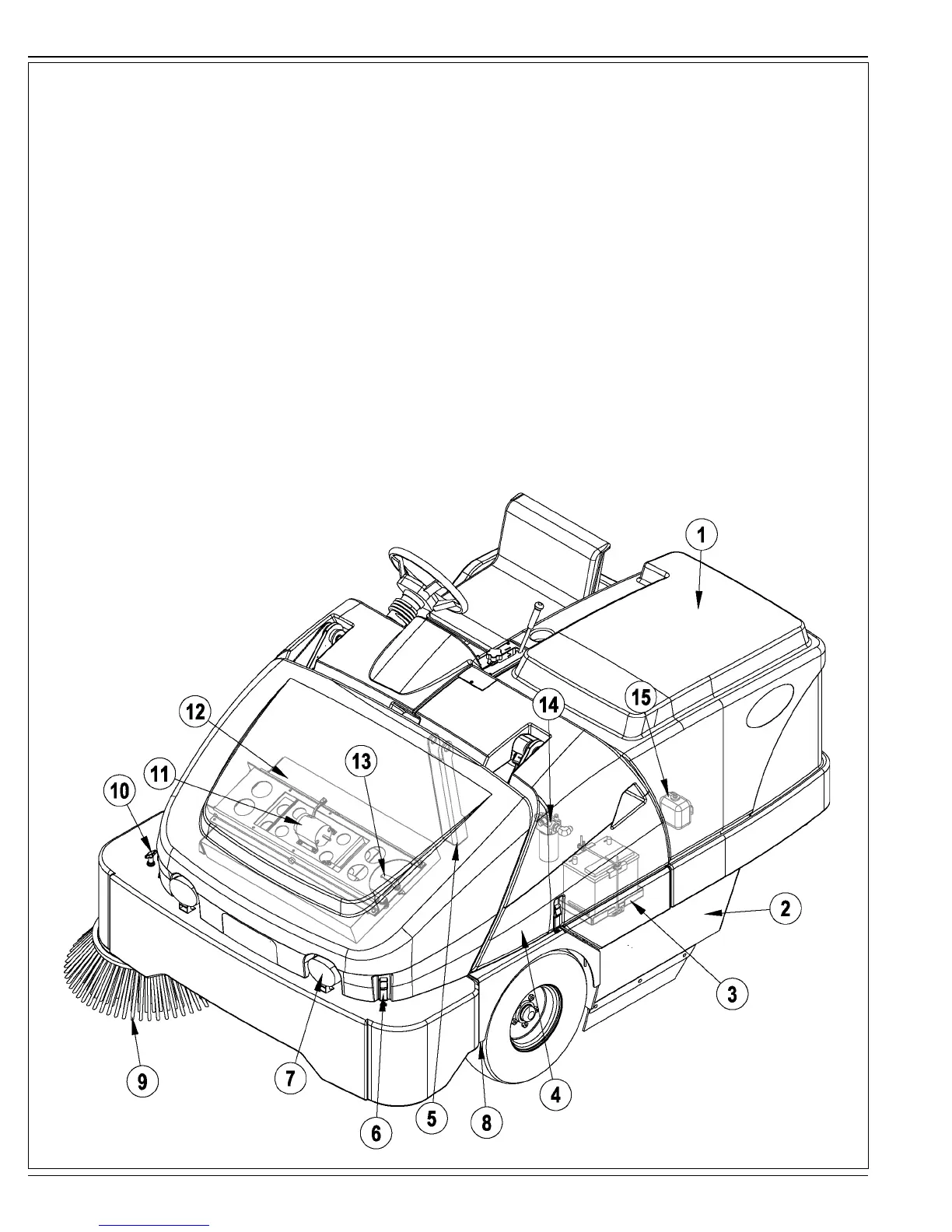

KNOW YOUR MACHINE
As you read this manual, you will occasionally run across a bold number in parentheses - example: (2). These numbers refer to an item on the
next four pages. Refer back to these pages whenever necessary to pinpoint the location of an item mentioned in the text.
1 Engine Compartment Cover
2 Left Side Main Broom Access Panel
3 Battery
4 Center Cover Assembly
5 Hopper Safety Support
6 Hopper Cover Latch
7 Head Light
8 Jacking Locations (rear location is large weight below radiator)
9 Side Broom
10 Side Broom Height Adjustment Knob
11 Dust Filter Shaker Assembly (US models)
12 Hopper Dust Control Filter (US models)
European models use a maintenance free bag type fi ltration system not shown here
13 Shaker Assembly Latch (US models)
14 Hydraulic Oil Filter
15 Coolant Recovery Tank (4 cylinder location)
