Construction
POSEIDON 7 NEW-C3_en_Ver.1.0_33/12
20
C
Overview C3 Pump

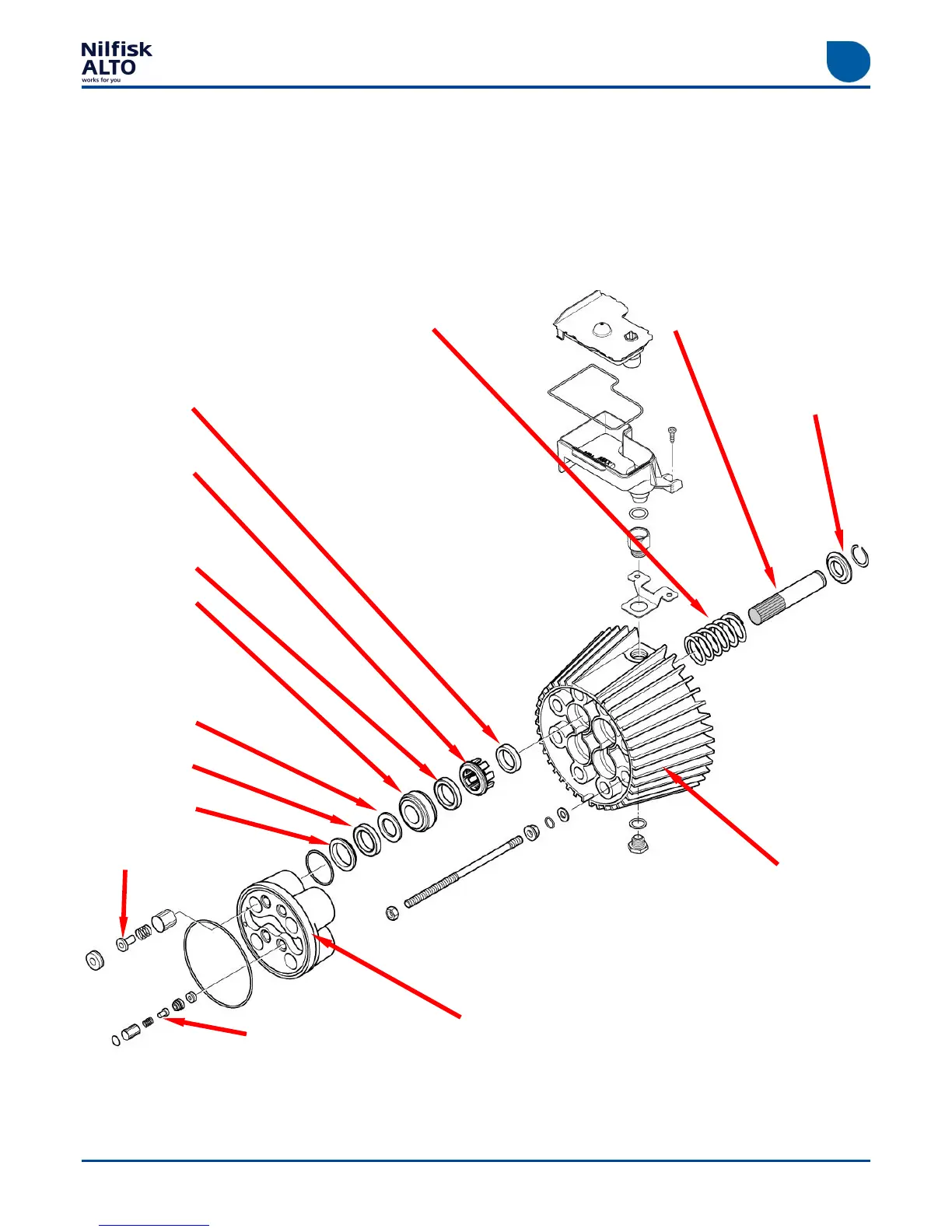

Pic. C6: Pump parts
Piston
Washer for spring
Spring
Cylinder block
Thrust collar
Oil seals
Cylinder head
Pressure valve
Secondary seal
Support ring
Back up ring
Primary seal
Header ring
Inlet valve
