NIMO Easy Dryer 1700 - Page 13

13
297
348
297
348
2
4
2
3
Adapter is not supplied.
The air intake must not be blocked.
Permanently tted to mechanical exhaust vent

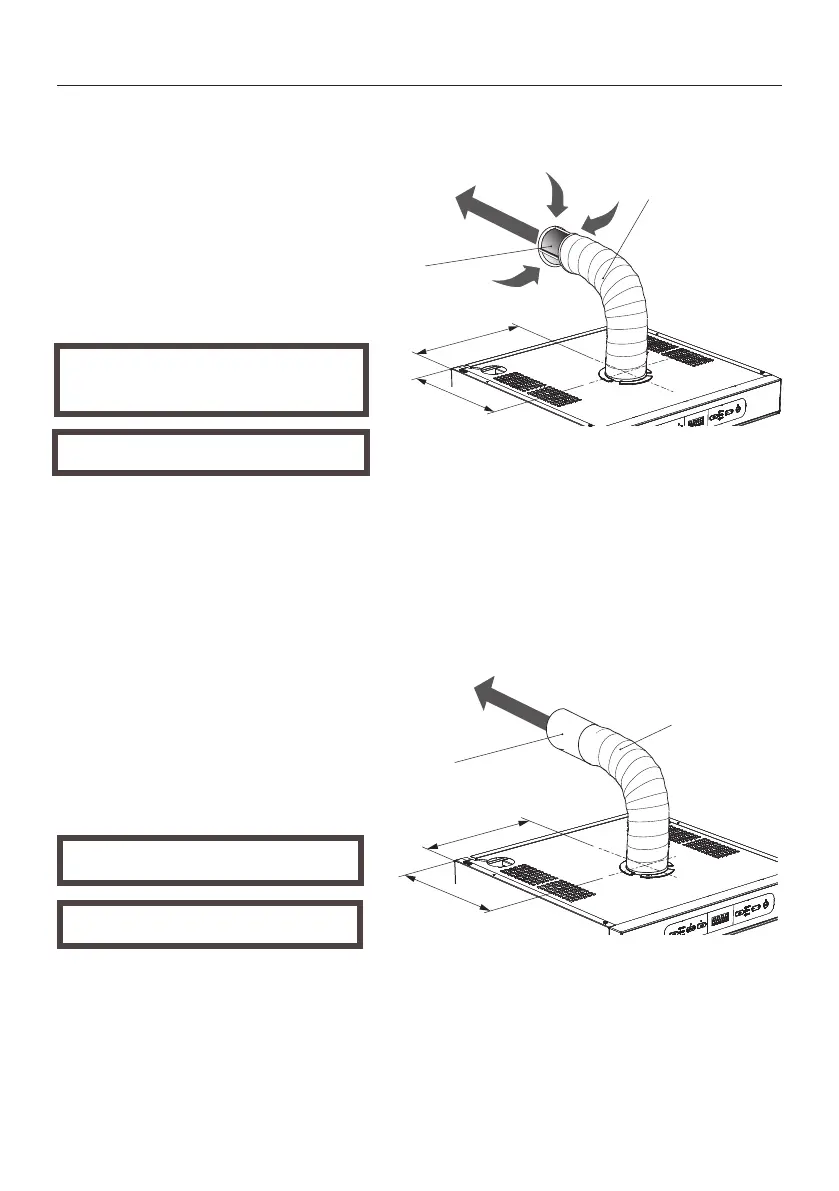

EVACUATION / SUPPLY AIR
Moist air out
Connect the exible hose (2) to
the spigot. Connect the other end
of the hose to the adapter (4)
and then press this home on the
exhaust vent in the room.
The air intake must not be blocked.
The drying cabinet must not be
connected to a flue.
Connect the exible hose (2) to the
spigot. Connect the other end of the
hose to the draught stabiliser (3)
which is then pressed home on the
exhaust vent in the room.
With draught stabiliser
Moist air out
1. Spigot (page 12)
2. Hose, Ø 120 x 1000 mm
3. Draught stabiliser
4. Adapter
