Ninebot ONE - Handle Replacement; Removing Handle Bar Screws

13 / 20

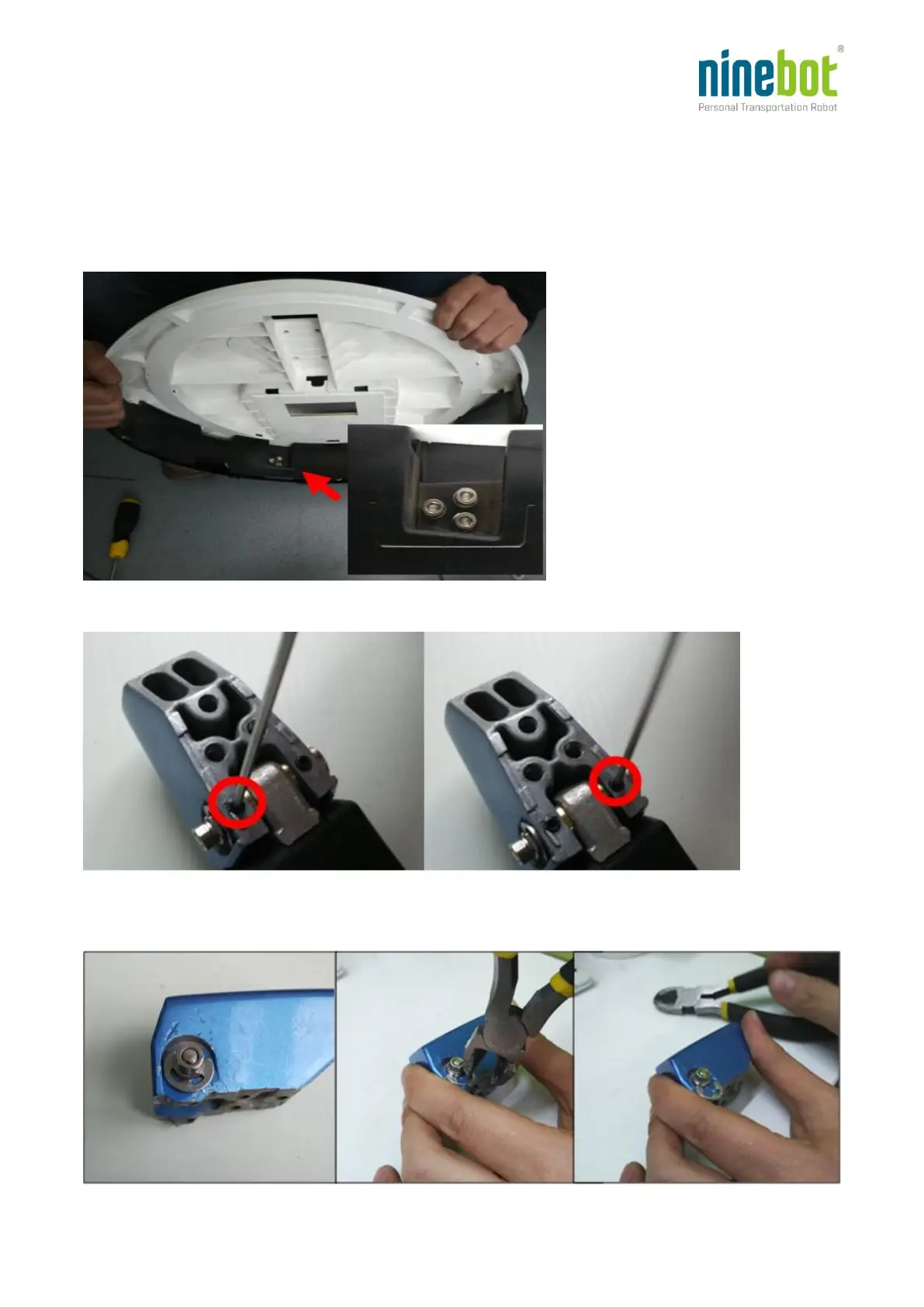

Handle Replacement
1. Remove the motor (see Motor Replacement).
2. Use a 4 mm hex key to remove the handle bar screws, as shown below.
2. Use a 2 mm hex key to remove the screws as shown below.
3. Remove the screws directly from the arm and base assembly, then remove the e-clip with side
cutters as shown below.
