LED Strip Replacement
If an LED strip is inoperable or damaged, replace it by following the steps below.

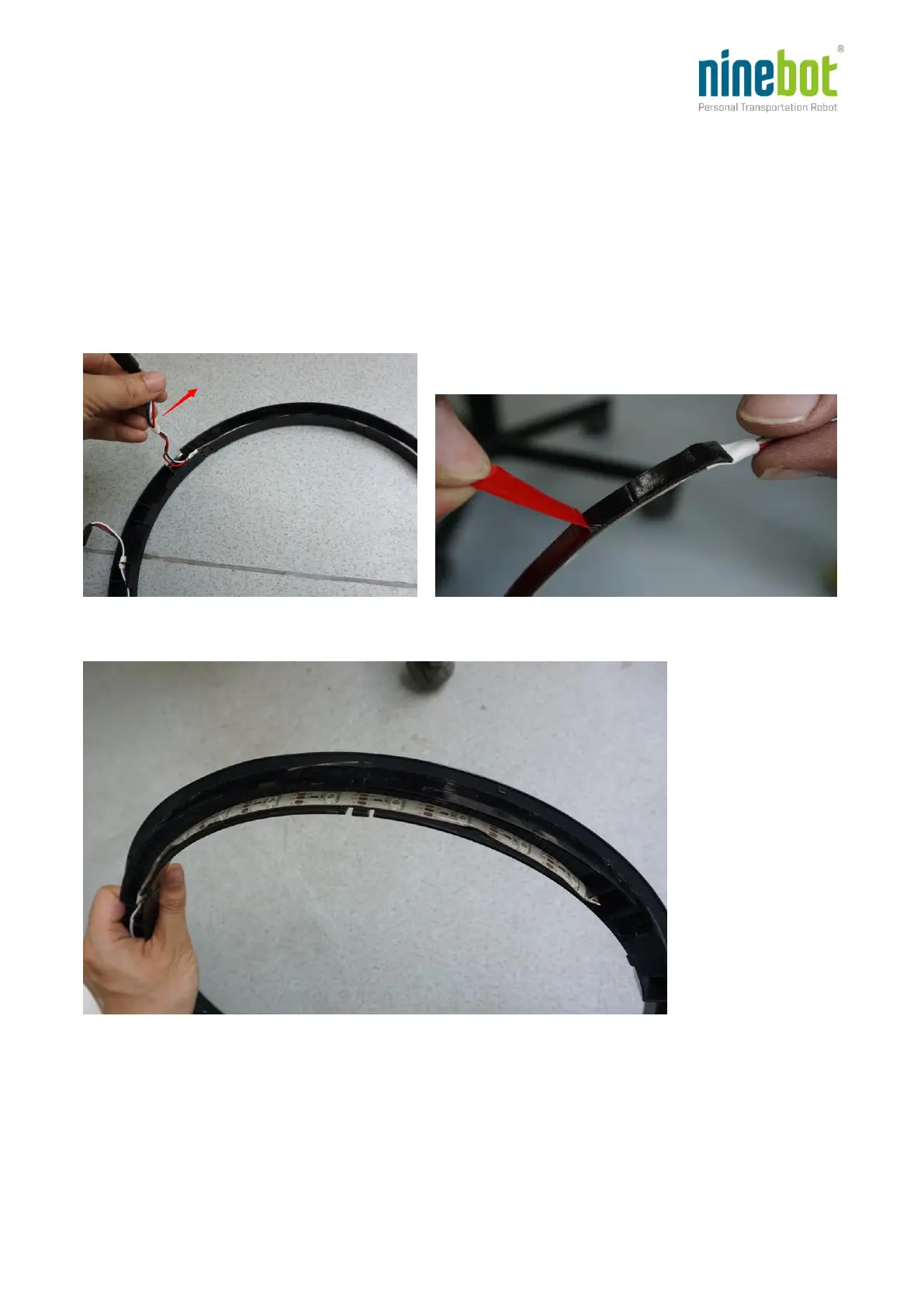

1. Remove the LED shell (see LED Shell Removal). Gently remove the damaged LED strip by pulling it
out in the direction indicated.
2. Remove the red backing tape from the new LED strip, then apply the LED strip as shown below.
2. LED strip installation is complete.
