3. INSTALLATION
 Install the instrument on a horizontal place with sufficient
strength.
Otherwise, an injury or an instrument failure caused by an
overturn or a fall may result.

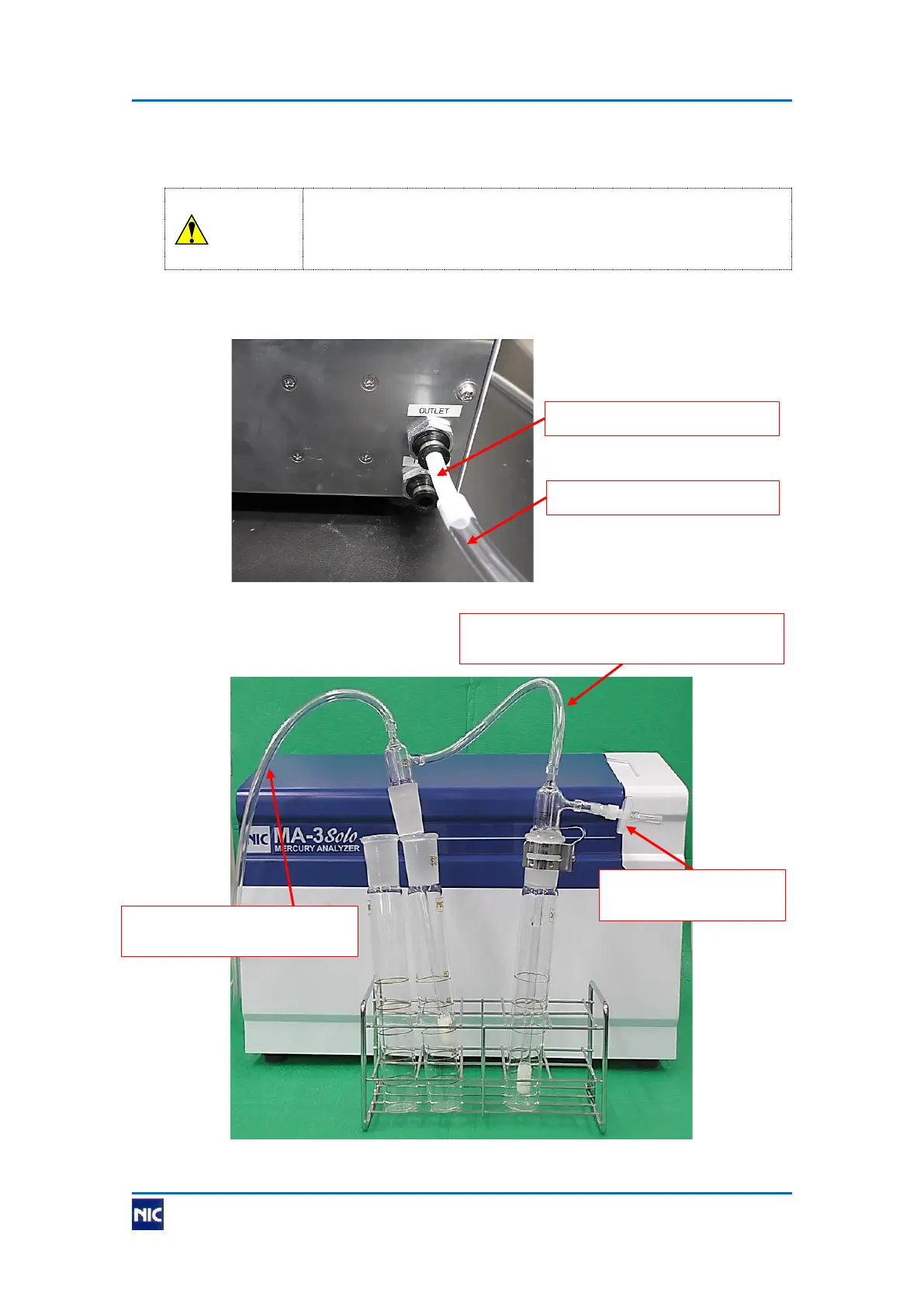

Connect the tubing as follows.
<Rear side>
<Front side>
* During the installation, do not close the inside cylinder of the 1
st
impinger.
Caution
PTFE Tube (approx. 5cm)
Tygon Tube (approx. 80cm)
Tygon Tube (approx. 80cm)
OUTLET – 1
st
Impinger IN
Tygon Tube (approx. 25cm)
1
st
Impinger OUT – 2
nd
Impinger IN
Mercury collector tube
connecting tube
