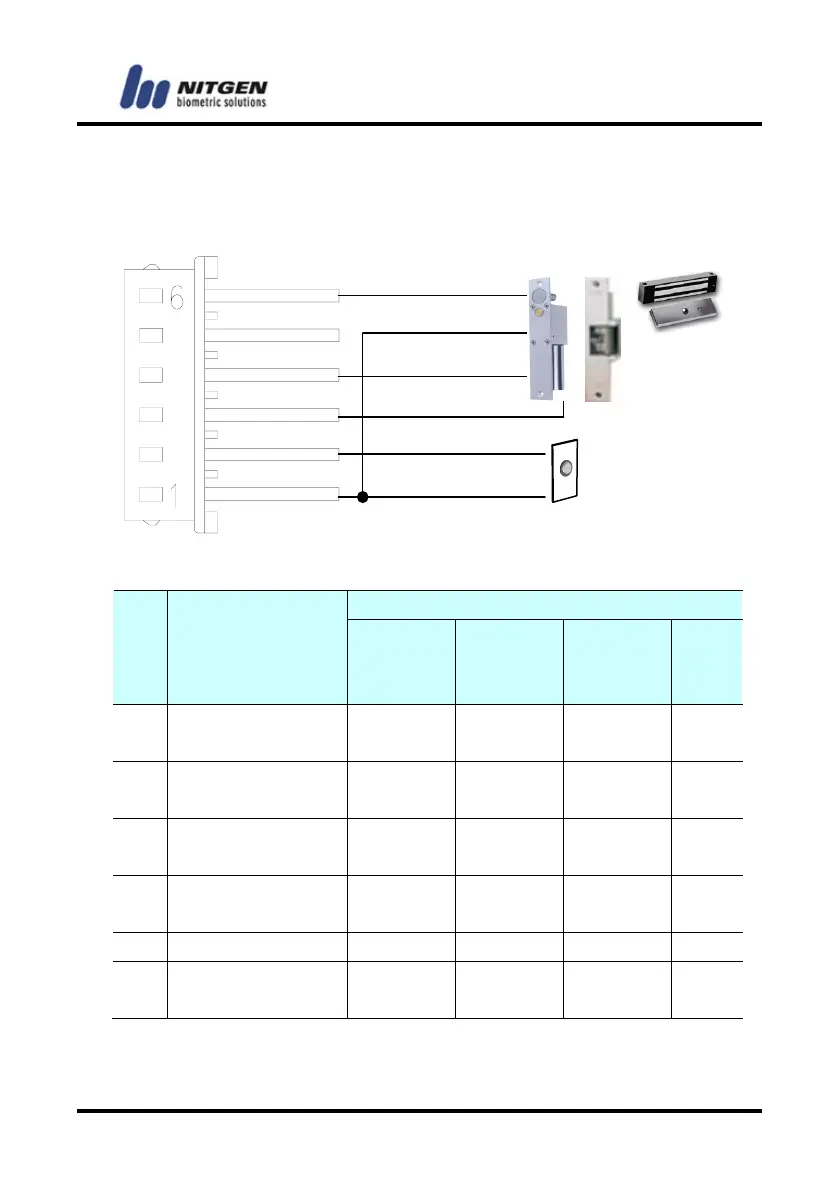

■ How to connect cables by types of locking devices
Deadbolt/Strike/Electronic Magnetic-Lock
PIN
NO.
Feature
Fail
Safe Type
Fail
Secure
Type
Door
Monitoring
Door
Open
1 GND GND GND COM
Open
button
2 Door Open button
Open
button
3 Door Monitoring
Monitor
(12/24V)
4 CONTACT_B
VCC(12/24
V)
5 COMMON (COM)
6 CONTACT_A
VCC(12/24
V)
*The Relay Boad [JP1]=>Close
Common
Contact_B
GND
Door Monitor
Door Open
Contact_A
Door Open Button
Power(Fail Secure)
Deadbolt
Power(Fail Safe)
Strike
EM Lock
Door Monitoring Signal
