SERIES MANUAL
11. Actuator and Valve Assembly
※ If the Valve is supplied by the user, the delivery is available after NOAH ACTUATION mounts the actuator to
the valve and calibrates the limit switch settings.
11-1-1
Confirm that the valve mounting dimensions match the actuator ISO mounting.
Refer to section 10 for more detail.
11-1-2
Remove the manual over ride lever provided on the actuator base, and with power off, close the
actuator clockwise. Also, close the valve that is to be mounted.

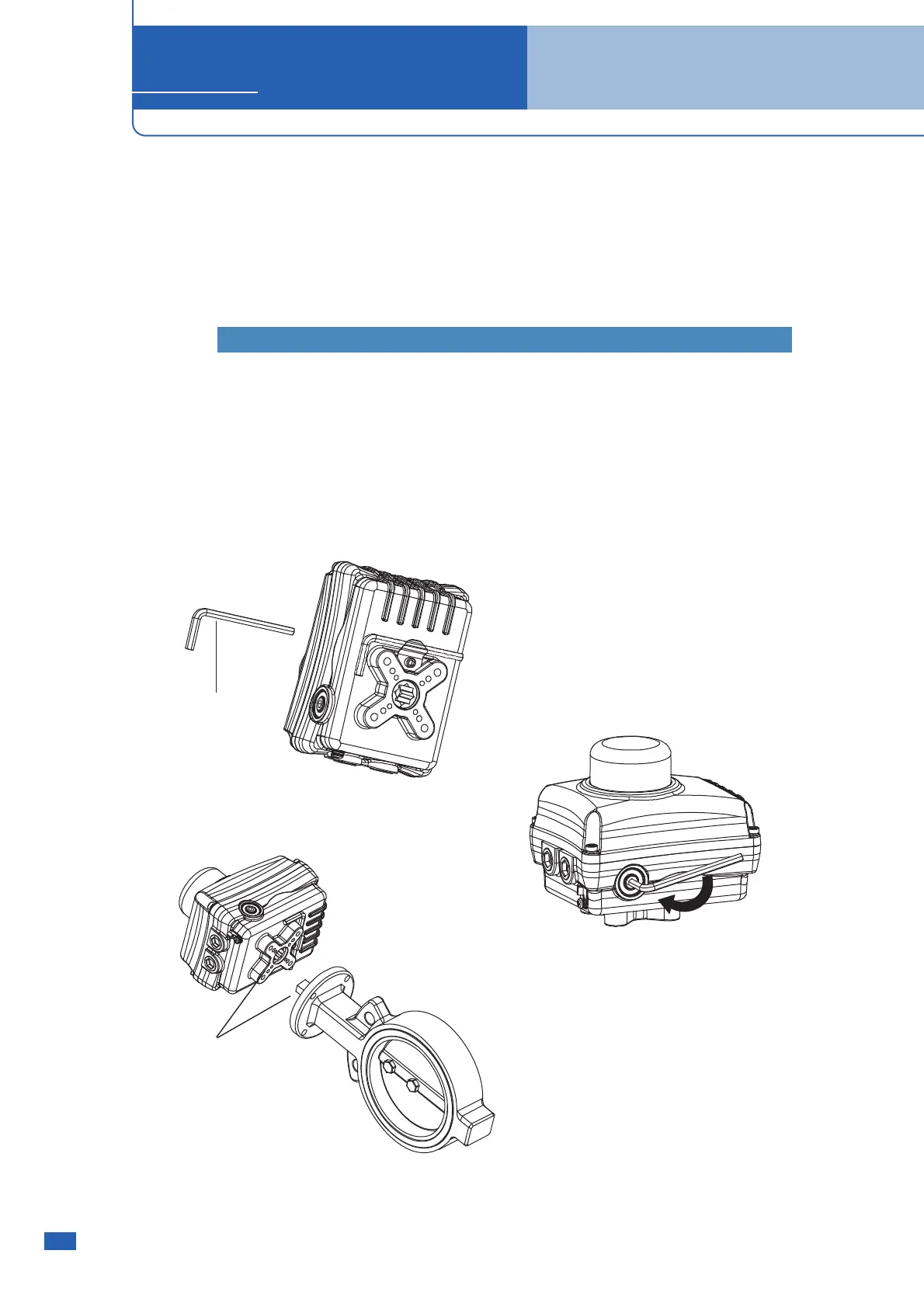

11-1 Butterfly Valve Assembly
11-1-3
Apply a light coating of grease to the
valve stem and actuator drive.
Assemble the valve and actuator
together and secure with the proper
bolting.
L-Wrench
Grease
▼
▼
▼
