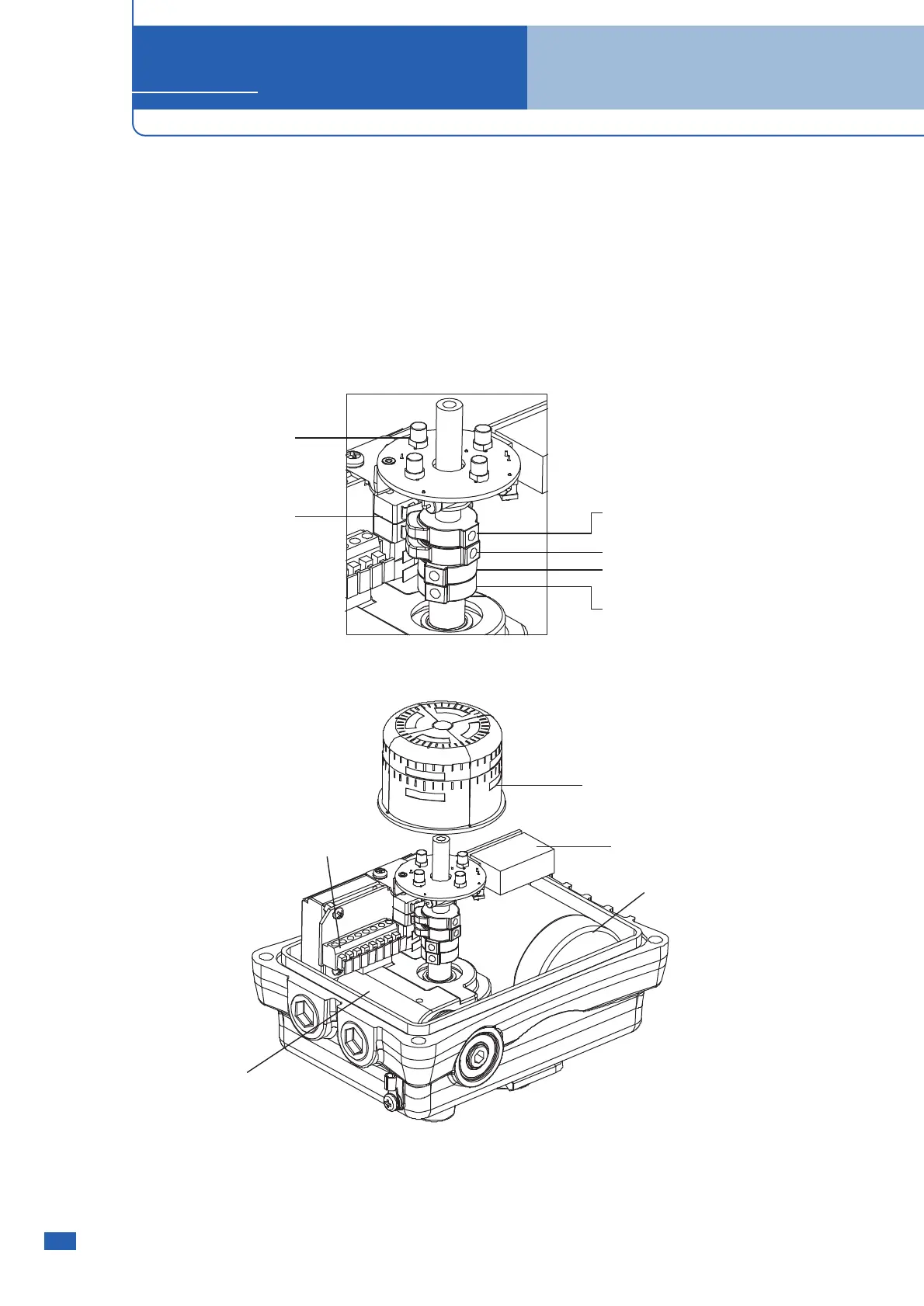

8. Interior Parts Identification
▼
Indicator
▼
Condenser
Motor
▼
Terminal
▼
▼
Heater
▼
Full Open,Close
LED Lamp
▼
Micro Switch
▼
▼
Auxiliary Contact
Open Limit Switch
▼
▼
Auxiliary Contact
Close Limit Switch
Open Limit Switch
Close Limit Switch
8-1 SA005, SA005L / SA009, SA009L
