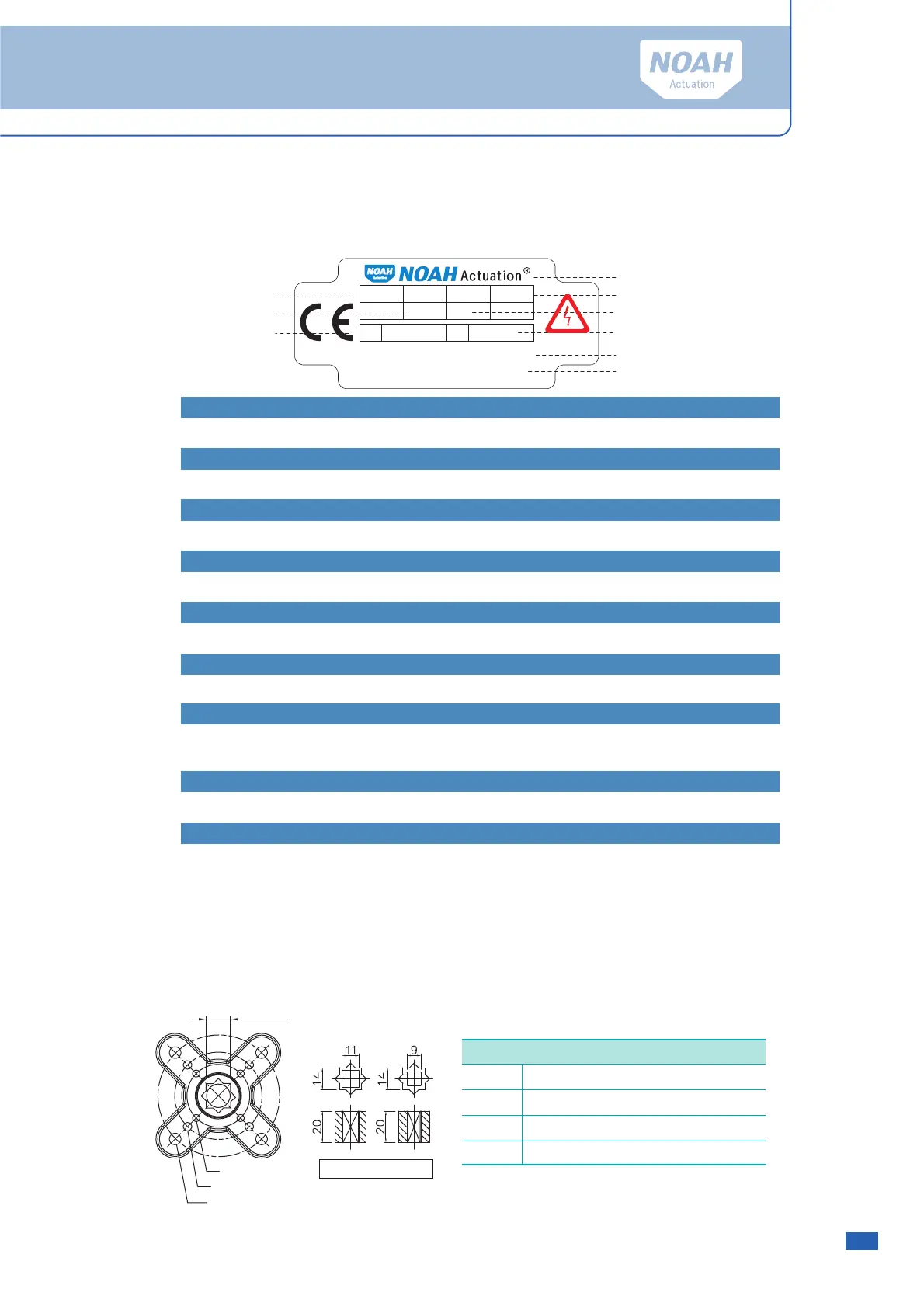

9. Actuator Nameplate Information.
10. Actuator Mounting Flange
Before Installation or use, verify the nameplate information to insure that you have the correct
model number, voltage and options.
SA-Series Base is manufactured to the ISO 5211 standard.
If the actuator does not fit directly to the valve, drive inserts are available or complete mounting
kits can be manufactured.
Noah ACTUATOR
9-1
ⓐ Noah ACTUATOR
Model Number
9-2
ⓑ Type
Main power supply voltage for the motor.
9-3
ⓒ Supply
Torque output.
9-4
ⓓ Torque
Motor wattage
9-5
ⓔ Motor
A unique serial number is issued for each ACTUATOR.
9-6
ⓕ S.N
Options installed will be listed here. For a complete listing of options refer to section
5 Optional Specifications.
9-7
ⓖ OP
Do not open when energized.
9-8
ⓗ Warning
NOAH ACTUATION CO.,LTD.
Tel: 82-2-806-4263 / Web Site: www.emico.co.kr
9-9
ⓘ Manufacturer and Contact Info
A
B
C
Option
Base P.C.D
ISO5211 F03 (Ø36 M5TAP DP8)
ISO5211 F05 (Ø50 M6TAP DP10)
ISO5211 F07 (Ø70 M8TAP DP13)
ISO5211 F04 (Ø42 M5TAP)
ⓐ
ⓒ
ⓔ
ⓖ
ⓑ
ⓕ
ⓓ
ⓗ
ⓘ
Drive Insert (Option)
14 DP25
P.C.D A
P.C.D B
P.C.D C
NOAH ACTUATION CO.,LTD.
Do Not Open When Energized
SEOUL KOREA TEL: 82-(2)806-4263 www.emico.co.kr
WARNING
NOAH ACTUATION CO.,LTD
Type
S.N.
OP
Torque Motor Supply
