15
SA
SERIES MANUAL

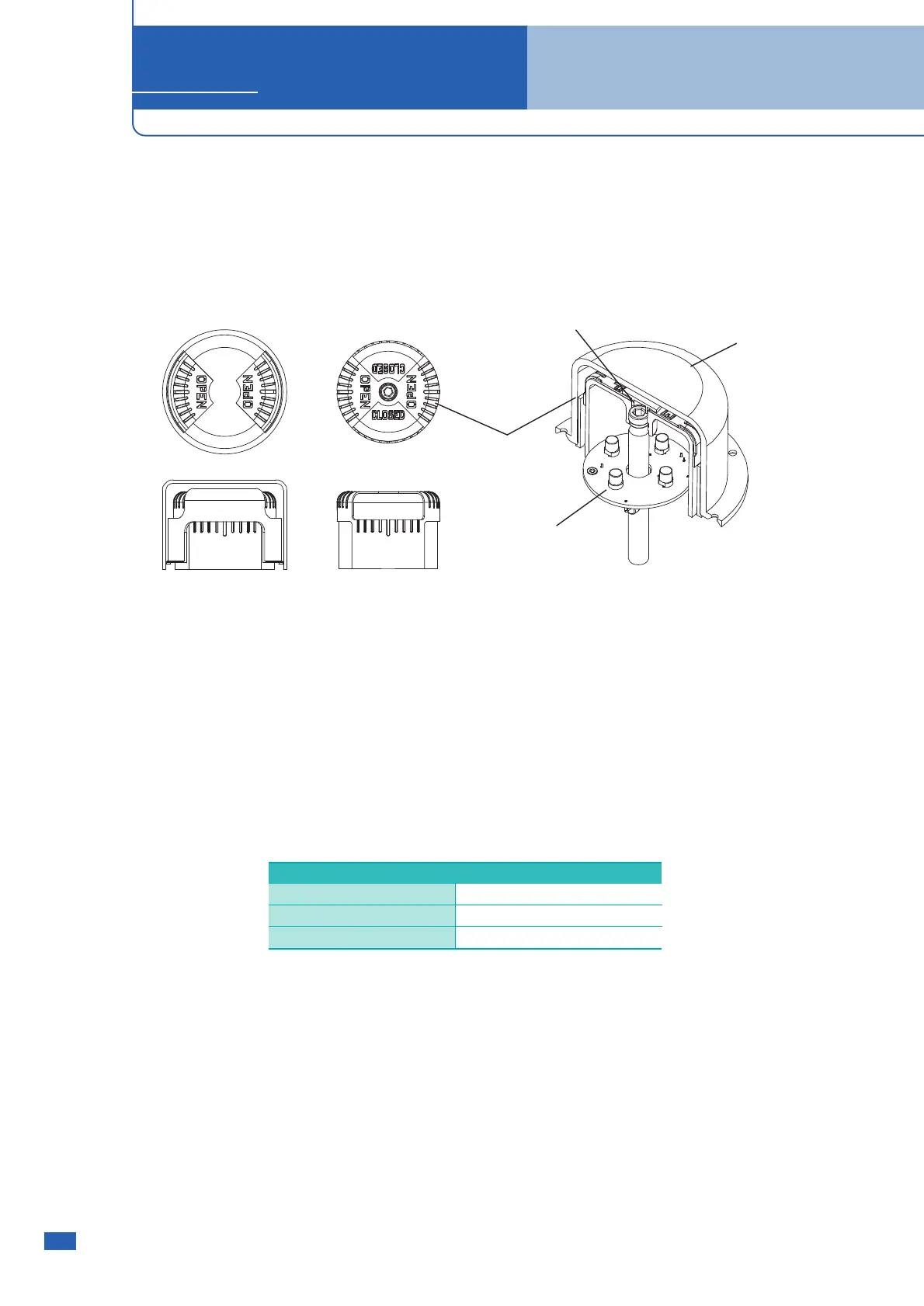

14. Indicator Setting
15. Wire Connection
The position of the valve is indicated by the visual dome indicator.
The two cable entries on the SA-Series actuator are PF1/2". The actuator is sold worldwide,
so there maybe some differences as to the thread and pitch standards. Check with
your supplier to confirm which standard is supplied in your area.
LED lights illuminate to allow for easy visual confirmation of valve position.
※ If the position of the indicator is not aligned correctly, an adjustment can be made by simply
loosening the bolt and manually turning the indicator to the proper location, then re-tightening
the bolt.
15-1 Standard conduit and conduit seal fittings may be used when installing and wiring the
actuator. to prevent moisture and humidity from entering the actuator, it is highly
recommended that a seal fitting be installed in the actuator cable entry.
After all the conduit and wiring has been completed, then the seal fitting can be sealed
with packing and or a potting material.
15-2 Any unused cable entry must remain plugged with the pipe plug provided with the
actuator. Do not remove the remaining plug as it is already sealed.
▼
Window
LED Lamp
Indicator
Bolt
▼
▼
Cable Entry Specifications
Korea, Japan, China
Europe, UK, Australia, NZ
US, Canada
2-PF 1/2”
2-M20 x Pitch1.5
2-NPT 1/2”
